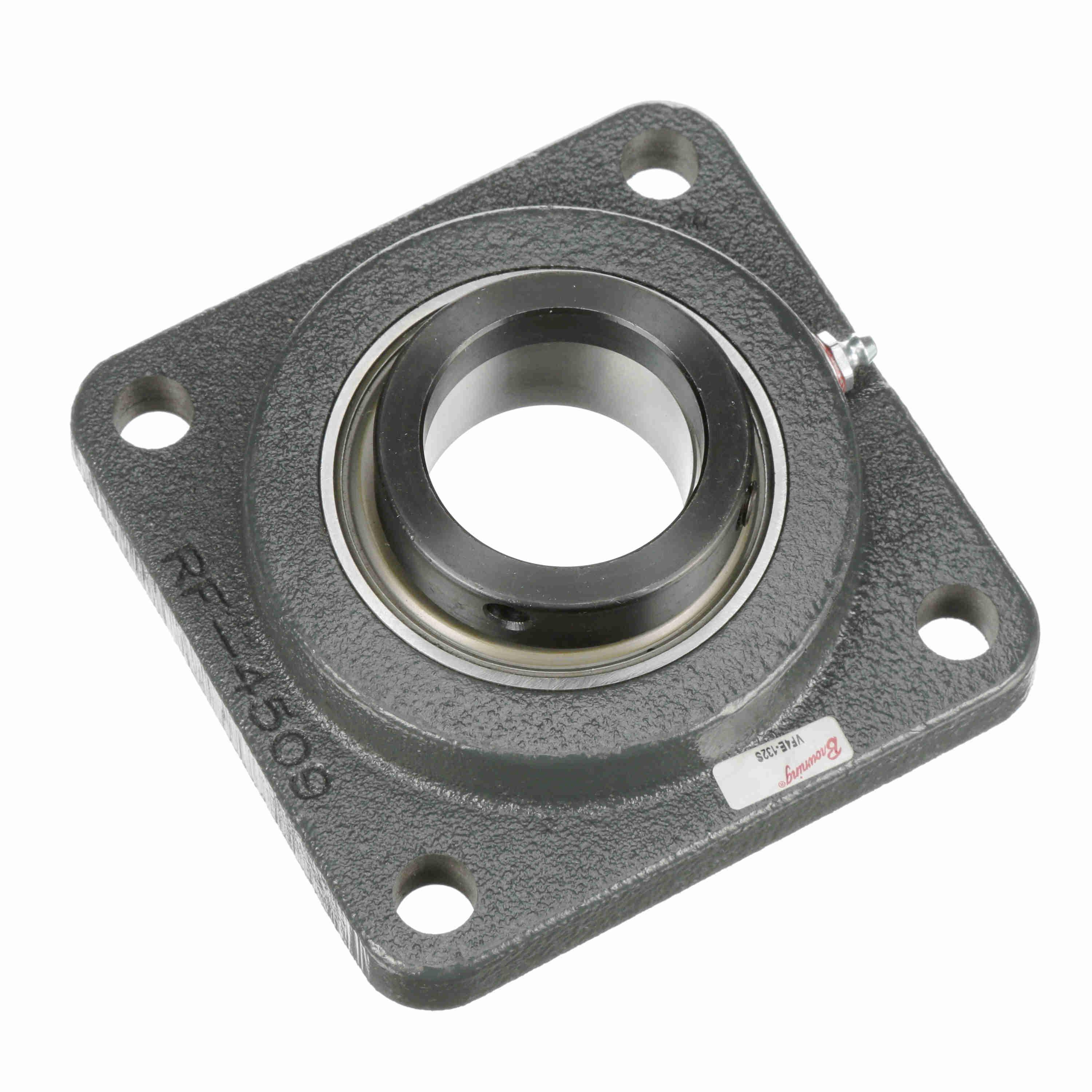

| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 4 3/8" |
| Bolt Spacing | 4 3/8" |
| Bore Dia. | 2" |
| Color | Gray |
| Dynamic Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Insert Part Number | VE-132S |
| Length Through Bore | 1.781" |
| Locking Device | Eccentric |
| Material | Steel |
| Max. Speed | 2000 RPM |
| Mounting Bolts | 9/16" |
| Mounting Method | Eccentric Collar |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 6 1/5" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 2 5/32" |
| Overall Dia. | 5 5/8" |
| Overall Height | 5 5/8" |
| Overall Length | 5 5/8" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Intermediate Duty Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF4E 100 Series |
| Static Load Capacity | 5216 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 2.742 Kg |
| Ship weight (kg) | 2.7 |
