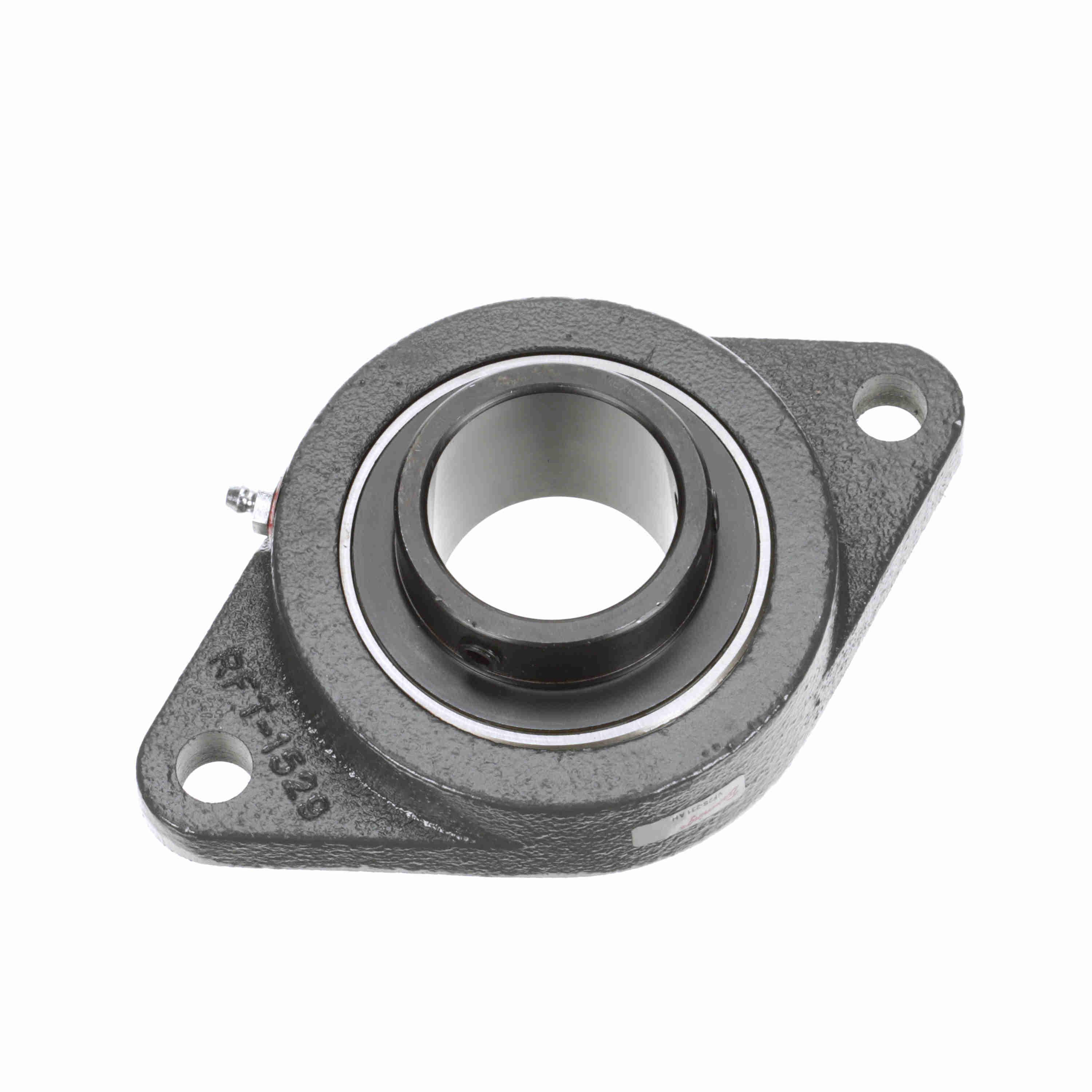

| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 6 3/16" |
| Bolt Spacing | 6.188" |
| Bore Dia. | 1 15/16" |
| Color | Gray |
| Dynamic Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VS-231 |
| Length Through Bore | 2.031" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 3000 RPM |
| Mounting Bolts | 9/16" |
| Mounting Method | Set Screw |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 6 1/5" |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Air Handling, Has Flinger |
| Overall Depth | 2 5/32" |
| Overall Dia. | 7 7/16" |
| Overall Height | 4 9/16" |
| Overall Length | 7 7/16" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Normal Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2S 200 Series |
| Static Load Capacity | 5216 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | 200°F |
| Weight | 2.09 Kg |
| Ship weight (kg) | 2.15 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 18.9 |
| Ship width (cm) | 5.49 |
