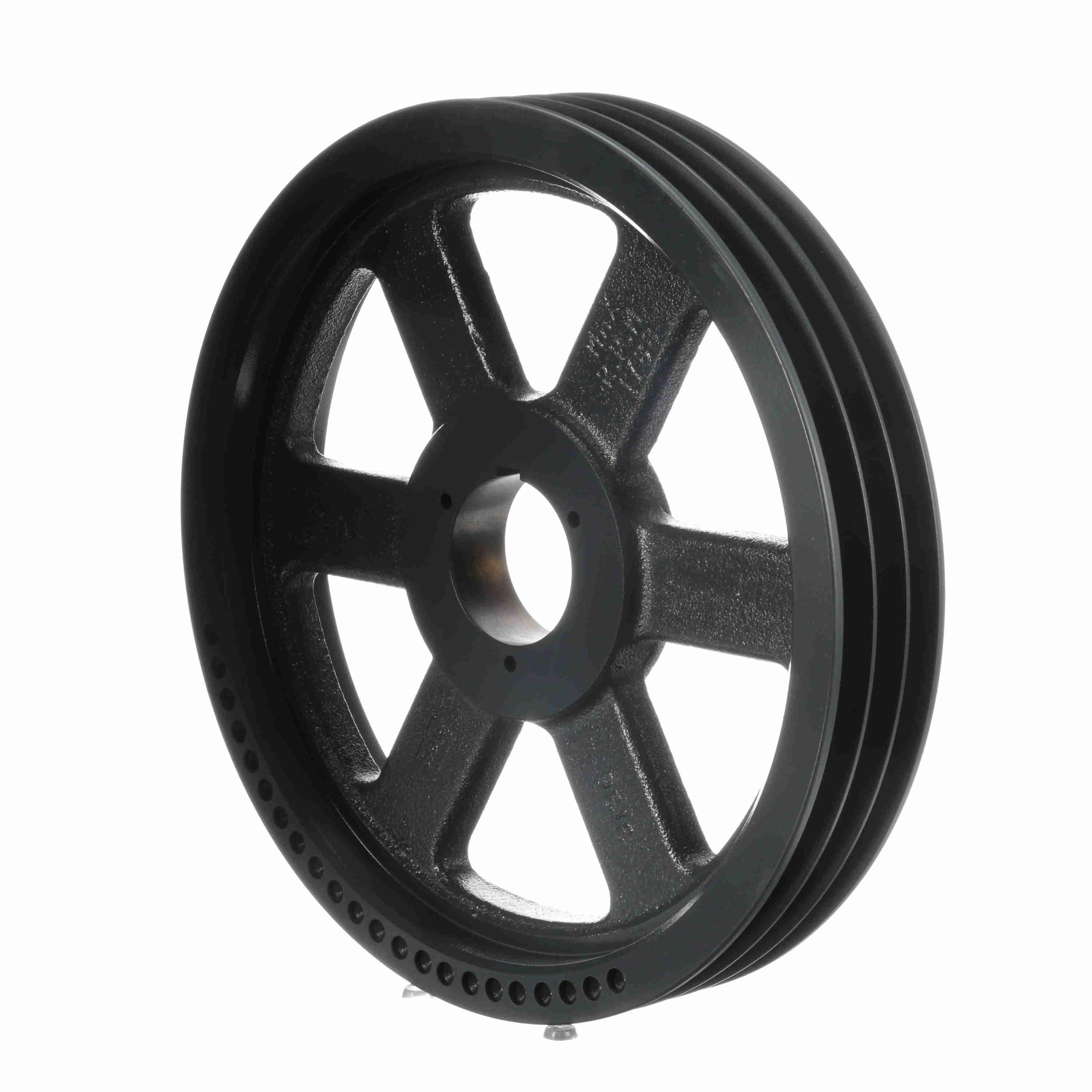

| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 1 15/16" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1/2" to 2 7/16" |
| Bushing Type | B |
| Face Width | 2 7/16" |
| Hub Projection | 17/64" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 13.7" |
| Min. Pitch Dia. | 13 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 13 22/25" |
| Overall Length | 2 29/32" |
| Pitch Dia. (5v) | 13.7" |
| Pitch Dia. (a) | 13 2/5" |
| Pitch Dia. (b) | 13.9" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 4 |
| Weight | 12.894 Kg |
| Ship weight (kg) | 12.78 |
| Ship height (cm) | 35.26 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 35.26 |
| Country of Origin | US |
