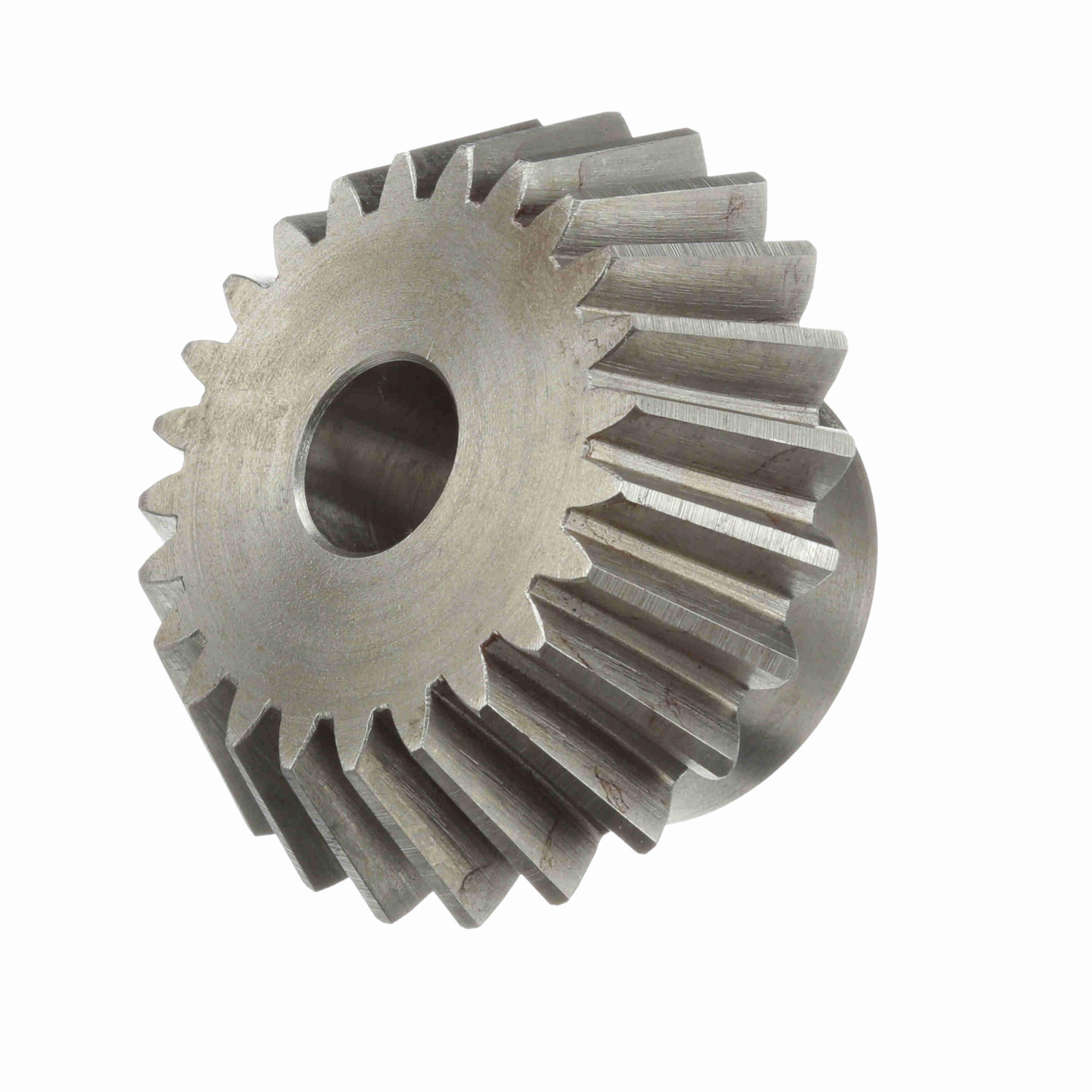

| Item | Bevel Gear |
| Bushing Size | No Bushing |
| Diametral Pitch | 6 DP |
| Face Width | 1.17" |
| Gear Ratio | 2:1 |
| Hardened Teeth | No |
| Hub Dia. | 2 5/8" |
| Hub Projection | 1 1/4" |
| Material | Steel |
| Max. Bore | 1 3/4" |
| Min. Bore Dia. | 1" |
| Minimum Plain Bore | Yes |
| Mounting Method | Rough Bore |
| Number Of Teeth | 24 |
| Other Features | Unhardened Overall, Bevel Pinion, Coniflex Tooth Form |
| Overall Length | 2 35/64" |
| Pitch Dia. | 4" |
| Pressure Angle | 20° |
| Style | Bevel Gear |
| System Of Measurement | Imperial |
| Tooth Profile | Straight Tooth |
| Type | MPB Straight Tooth |
| Weight | 2.352 Kg |
| Ship weight (kg) | 2.3 |
| Ship length (cm) | 6.48 |
| Country of Origin | US |
