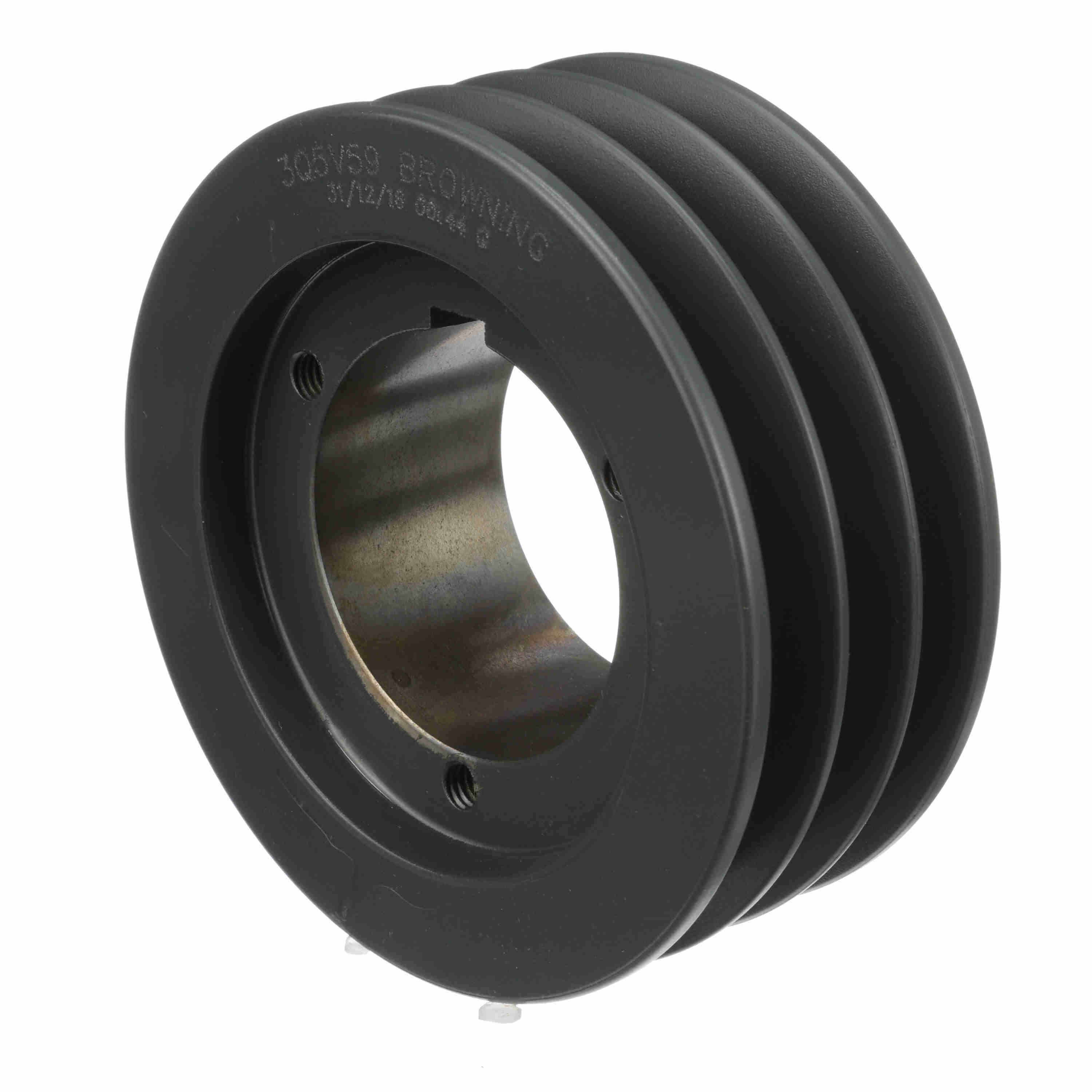

| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 3/4" to 2 11/16" |
| Bore Type | Split Taper |
| Bushing Type | Q1 |
| Face Width | 2 3/8" |
| Hub Projection | 13/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 4/5" |
| Min. Pitch Dia. | 5 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 5.9" |
| Overall Length | 3 1/64" |
| Pitch Dia. | 5 4/5" |
| Suitable For Use With | Gripbelt 5V Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Solid Type 13 |
| Weight | 3.958 Kg |
| Ship weight (kg) | 3.94 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 7.67 |
| Ship width (cm) | 14.99 |
| Country of Origin | US |
