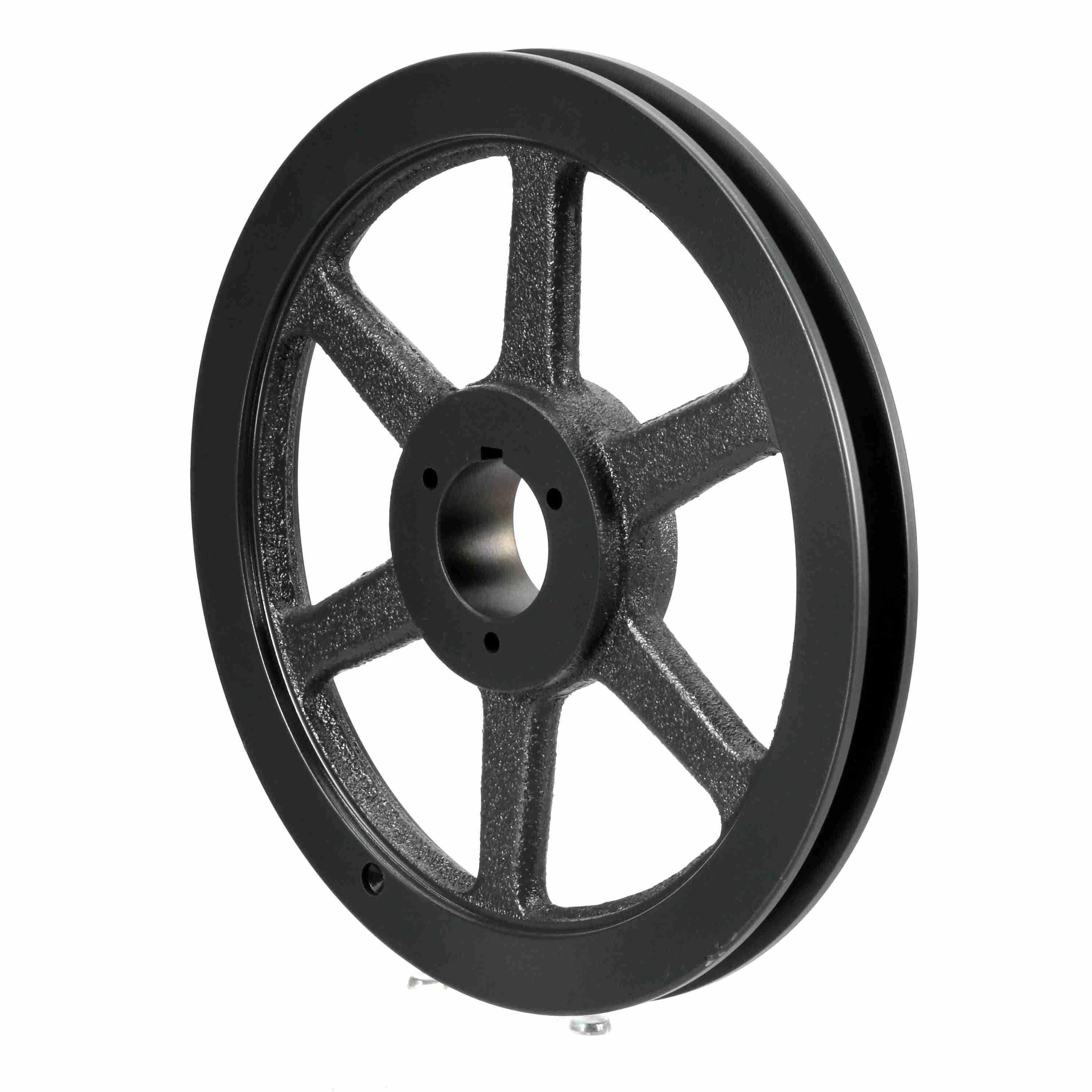

| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1" |
| Hub Dia. | 3" |
| Hub Projection | 25/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 11" |
| Min. Pitch Dia. | 10 3/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 11.35" |
| Overall Length | 2 9/64" |
| Pitch Dia. (a) | 10 4/5" |
| Pitch Dia. (b) | 11.3" |
| Series | TB Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 16 |
| Weight | 11.1 lbs. |
| Ship weight (kg) | 5.2 |
| Ship height (cm) | 28.83 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 28.83 |
| Country of Origin | US |
