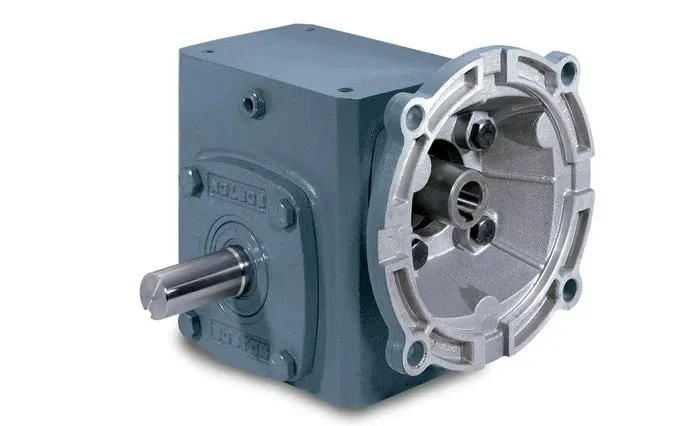

BOSTON GEAR RF721-5-B5-J Right Angle Worm Gear Speed Reducer

Item: AN8MZU
Model: RF721-5-B5-J
In Stock

Get it by Friday, Apr 17

£2074.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Base To Centerline Of Output Shaft 2 9/32"
Base/mounting Attachment No Base
Bolt Center Length 5"
Bolt Center Width 2 7/8"
Bore Code B5
Box Height 6 3/8"
Box Length 6"
Box Width 5 3/16"
Center Distance 2.06"
Center Distance 2 1/16"
Family Name RF
Fan Cooled No
Frame 56C
Housing Material Cast Iron
Hp @ Rpm 3 hp @ 1800 RPM
Input (shaft Or Bore) Size 5/8"
Input Configuration C Face Coupled
Input Hp @ Rpm 2.33 hp @ 1150 RPM, 3.66 hp @ 1750 RPM
Input Style RF Coupled Flange
Max. Overhung Load @ 1750 Rpm 700 lbs.-in.
Max. Thrust Load @ 1150 Rpm 700 lbs.-in.
Motor Application General Purpose
output bore/shaft dia. 1"
Output Configuration Right Output
Output Rpm @ 1750 Rpm Input 350 RPM
Output Rpm @ Input Rpm 350 RPM @ 1750 RPM
Output Torque @ Rpm 575 lbs.-in. @ 1150 RPM, 620 lbs.-in. @ 1750 RPM
Pre-lubricated No
Ratio 5:1
Recommended Lubrication Klubersynth UH1 6-460
Reduccer Paint Standard Paint
Reducer Material Casr Iron
Reduction Type Single Reduction Right Angle
Shaft Assembly Code J
Torque Out @ 1150 Rpm 575 lbs.-in.
Torque Out @ 1750 Rpm 620 lbs.-in.
Use With 721
Washdown Duty No
Worm Position Universal

Product Details

Shipping Information

Country Of Origin US
Weight 16.245000
