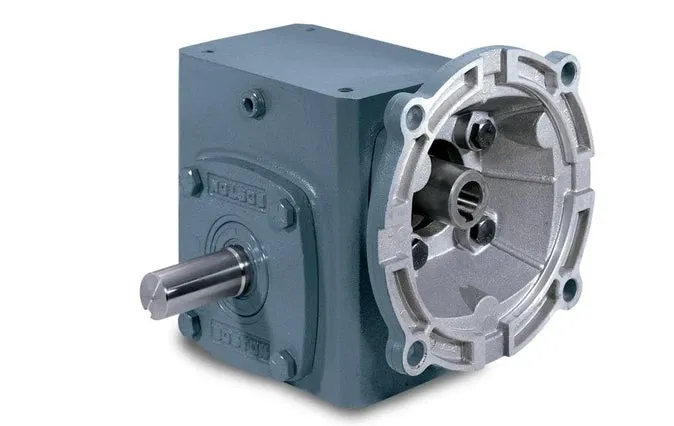

BOSTON GEAR F732-30-B9-J Right Angle Worm Gear Speed Reducer
Item: AK8LDD
Model: F732-30-B9-J
In Stock
Get it by Wednesday, Apr 15
£5932.27/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance | 3.25" |
| Fan Cooled | No |
| Frame Size | 180TC, 210C |
| Housing Dimension | 9" x 5.88" x 9.38" |
| Housing Height | 9.38" |
| Housing Length | 9" |
| Housing Material | Cast Iron |
| Housing Width | 5.88" |
| Input Hp | 2.800 hp @ 1150 RPM |
| Input Size | 1.125" |
| Input Style | F Standard Quill Flange |
| Input Type | C Face Quill |
| Max. Output Rpm | 58.3 @ 1750 RPM |
|---|---|
| Nema/iec Frame Size | 180TC/210C |
| output bore/shaft dia. | 1 3/8" |
| Output Size | 1.375" |
| Output Torque | 4000 lbs.-in. @ 100 RPM |
| Output Type | Solid |
| Overhung Load Capacity | 1300 lbs. |
| Pre-lubricated | No |
| Recommended Lubrication | Klubersynth UH1 6-460 |
| Reduccer Paint | Standard Paint |
| Reducer Material | Casr Iron |
| Reduction | Single |
| Reduction Type | Single Reduction Right Angle |
Product Details
No Base
Shipping Information
| country of origin | US |
|---|
| weight | 0.004500 |
|---|
