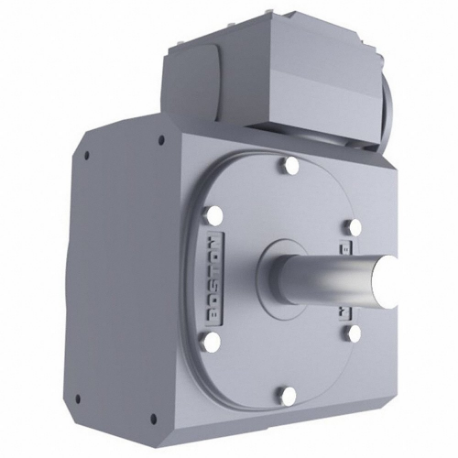

BOSTON GEAR FWC721-100-B5-G Speed Reducer, 100:1, 17.5 Rpm, 0.41 Hp Input Max | CP2AHB 34K139

BOSTON GEAR FWC721-100-B5-G Speed Reducer, 100:1, 17.5 Rpm, 0.41 Hp Input Max

Item: CP2AHB

Model: FWC721-100-B5-G

In Stock

Get it by Thursday, Apr 16

B5

B5
B4
B7
B9

Bore Code

2.1"

Center Distance

100:1

Gear Ratio

G

G
H
J

Shaft Assembly

~~£4340.06~~

5.00% off

£4123.07/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Agma Gear Class	Class 1
Application	Material Handling Conveyors
Base To Center	6"
Base To Shaft Center	6"
Bearing Type	Tapered Roller
Color	Gray
Gear Material	Cast Iron
Gear Ratio	100:1
Gear Type	Worm
Housing Material	Cast Iron
Housing Material Finish	Painted
Input Connection Type	Quill Flanged
Input Rpm	1750 RPM
Lubrication	Klubersynth UH1 6-460
Max. Input Hp	41/100 hp
Max. Output Torque	910 lbs.-in.
Maximum Input Horsepower	0.41 hp

Maximum Input Speed	1750 RPM
Maximum Output Speed	17.5 RPM
Motor Frame Designation	NEMA 56C
Mount Hole Center-to-center Length	5"
Mount Hole Center-to-center Width	2 22/25"
Mounting Type	Tapped Holes
Number Of Housing Mount Holes	8
Output Keyway Depth	1/4"
Output Keyway Width	1/4"
Output Rpm	17.5 RPM
Output Shaft Dia.	1"
Output Shaft Length	2 1/16"
Output Shaft Type	Keyed
Seal Type	Standard Vent
Service Class	Class I
Standards	Agma
Vent Type	Standard Vent

Product Details

Shipping Information

Height	2.54
Length	27.53
Width	2.54

Country Of Origin	US
Weight	17.100000

Related Products

A

B

C

D

E

F

G

Style	Model	gear ratio	max. input hp	mounting type	center distance	reduction type	input style	output type	ratio	Price (ex. VAT)	Cart
A	FWC713-100-B5-G	-	-	-	1.33"	Double Reduction Right Angle (Wc/Wd)	F Standard Quill Flange	-	-	1,607.27
B	FWC713-1200-B5-G	-	-	-	1.33"	Double Reduction Right Angle (Wc/Wd)	F Standard Quill Flange	-	-	1,607.27
C	FWC713-150-B5-G	150:1	0.13 hp	No Base	1.33"	Double Reduction Right Angle (Wc/Wd)	Quill Flange	Solid Projecting Shaft	-	1,607.27
D	FWC713-200-B5-G	200:1	3/25 hp	No Base	1.33"	Double Reduction Right Angle (Wc/Wd)	Quill Flange	Solid Projecting Shaft	-	1,607.27
E	FWC713-400-B5-G	-	-	-	1.33"	Double Reduction Right Angle (Wc/Wd)	F Standard Quill Flange	-	-	1,607.27
F	FWC718-300-B5-G	300:1	4/25 hp	No Base	1 3/4"	Double Reduction Right Angle (Wc/Wd)	Quill Flange	Solid Projecting Shaft	-	1,918.45
G	FWC721-300-B5-G	-	-	-	2.06"	Double Reduction Right Angle (Wc/Wd)	F Standard Quill Flange	-	-	2,051.76
