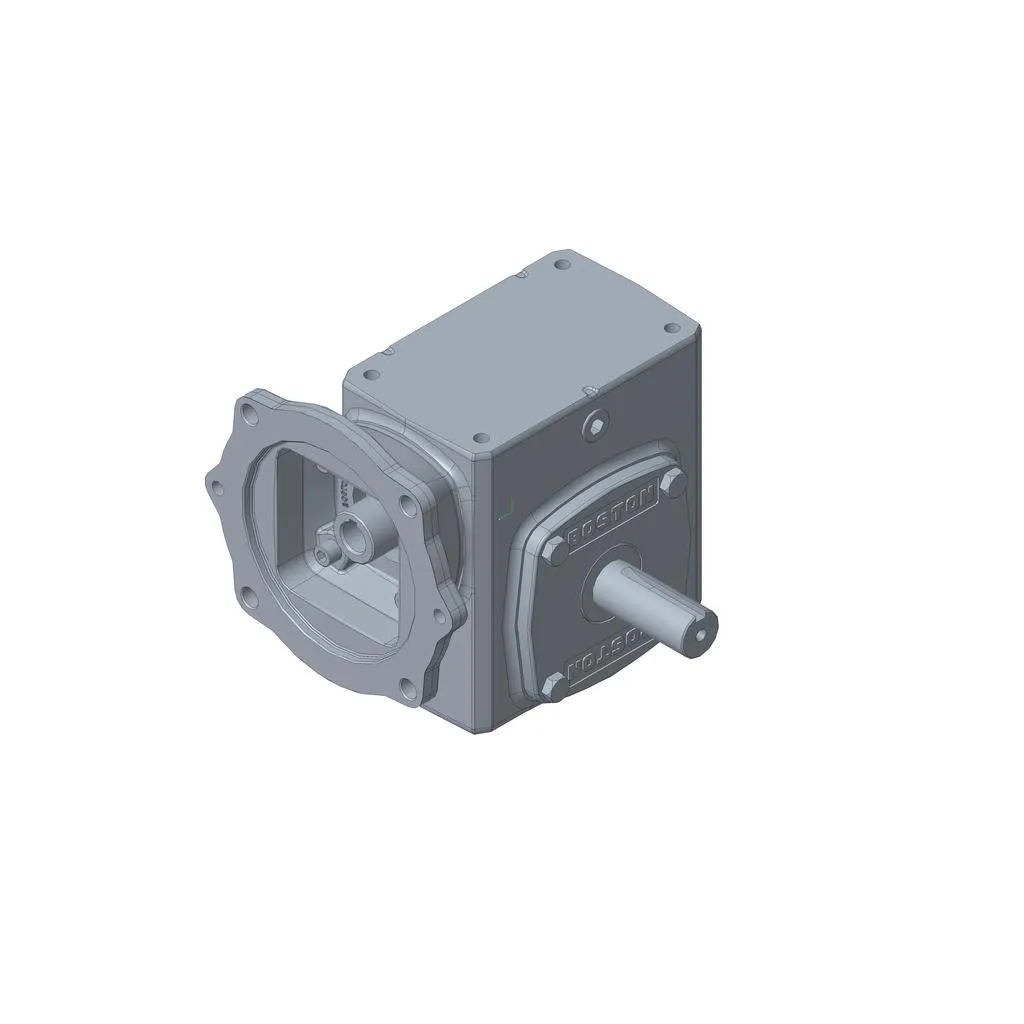

BOSTON GEAR F721-30-B5-J Reducer, Single Reduction, 30:1 Ratio, No Base, J Assembly
Item: AK8KQW
Model: F721-30-B5-J
In Stock
We deliver to your doorstep under DAP terms. Customs clearance is for your account
B5
2.06"
30:1
J
£1480.21/unit
Trade Prices Available
Request Quote
Payment
Delivery
Bore Code
Center Distance
Gear Ratio
Shaft Assembly
Specifications
| Base Mounting Attachment | No Base |
|---|---|
| Center Distance | 2.06" |
| Color | Gray |
| Efficiency | 0.81% |
| Fan Cooled | No |
| Finish | Standard Paint |
| Gear Ratio | 30:1 |
| Height | 6.38" |
| Input Dia. | 5/8" |
| Input Rpm | 58.3 RPM |
| Input Style | Quill Flange |
| Length | 6" |
| Lubrication | Klubersynth UH1 6-460 |
| Material | Cast Iron |
| Max. Input Hp | 0.99 hp |
|---|---|
| Motor Hp | 1 hp |
| Mounting Type | No Base |
| Output Dia. | 1" |
| Output Hp | 0.81 hp |
| Output Shaft Dia. | 1" |
| Output Type | Solid Projecting Shaft |
| Pre-lubricated | No |
| Product Series | 700 Series |
| Reduction Type | Single Reduction Right Angle |
| Torque Rating | 871 lbs.-in. |
| Type | Single Reduction |
| Width | 7 7/25" |
Product Details
Reducer
Related Products
| Style | Model | max. input hp | mounting type | gear ratio | rotation | output torque | finish | reduction type | center distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | F710-50-B4-G | 4/25 hp | Any Position | 501 | CW/CCW | - | Epoxy Paint | - | - | 1,035.21 | |
| A | F710-40-B4-G | 4/25 hp | Any Position | 401 | CW/CCW | - | Epoxy Paint | - | - | 1,150.29 | |
| A | F710-30-B4-G | 4/25 hp | Any Position | 301 | CW/CCW | - | Epoxy Paint | - | - | 1,096.39 | |
| A | F710-20-B4-G | 1/4 hp | Any Position | 201 | CW/CCW | - | Epoxy Paint | - | - | 1,035.21 | |
| A | F710-15-B4-G | 1/4 hp | Any Position | 151 | CW/CCW | - | Epoxy Paint | - | - | 1,035.21 | |
| A | F710-10-B4-G | 3/10 hp | Any Position | 101 | CW/CCW | - | Epoxy Paint | - | - | 1,035.21 | |
| A | F710-5-B4-G | 3/10 hp | Any Position | 51 | CW/CCW | - | Epoxy Paint | - | - | 1,096.39 |
