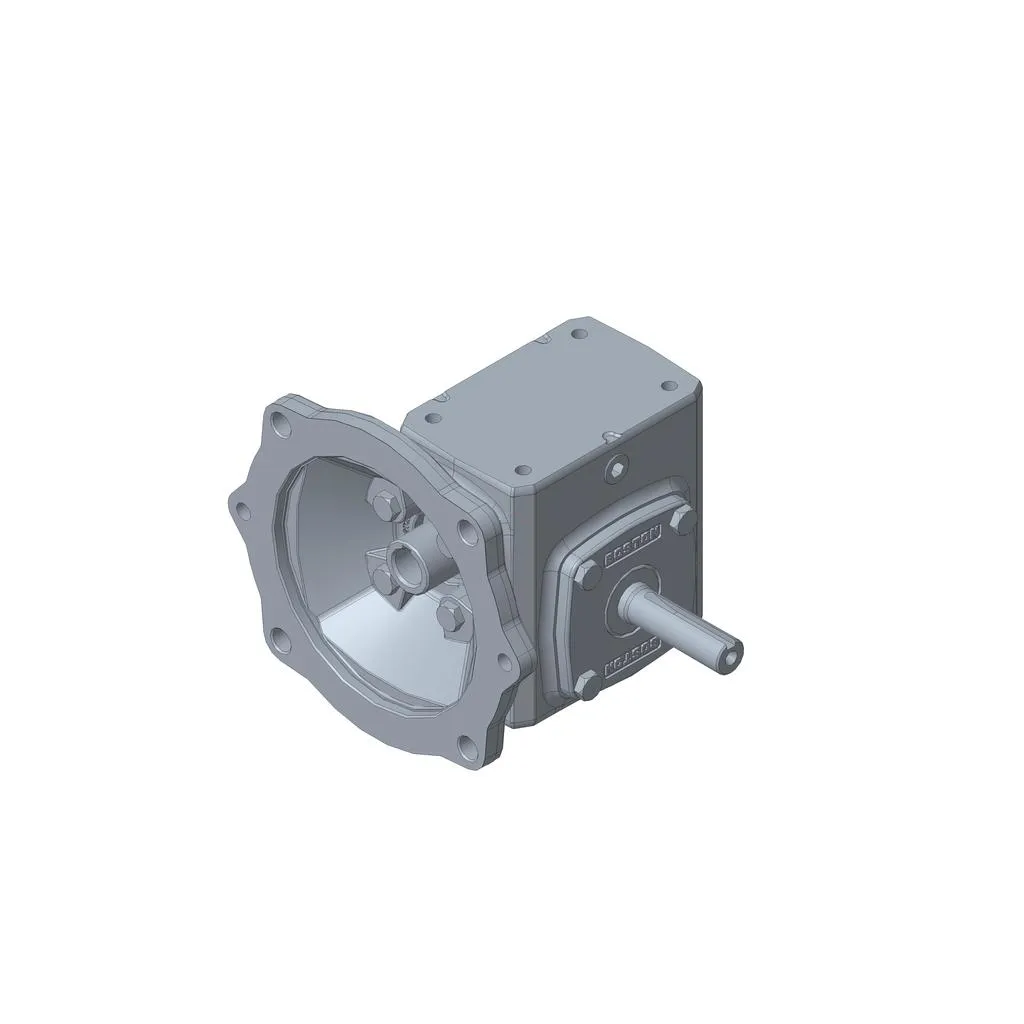

BOSTON GEAR F713-5-B5-H Reducer, Single Reduction, 5:1 Ratio, No Base, H Assembly
Item: AK8KEK
Model: F713-5-B5-H
In Stock
B5
1.33"
5:1
H
£944.82/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Bore Code
Center Distance
Gear Ratio
Shaft Assembly
Specifications
| Base Mounting Attachment | No Base |
|---|---|
| Center Distance | 1.33" |
| Color | Gray |
| Efficiency | 0.94% |
| Fan Cooled | No |
| Finish | Standard Paint |
| Gear Ratio | 5:1 |
| Height | 4 16/25" |
| Input Dia. | 5/8" |
| Input Rpm | 350 RPM |
| Input Style | Quill Flange |
| Keyway Size | 3/16" x 3/32" |
| Length | 4 1/4" |
| Lubrication | Klubersynth UH1 6-460 |
| Material | Cast Iron |
|---|---|
| Max. Input Hp | 1.39 hp |
| Motor Hp | 1 hp |
| Mounting Type | No Base |
| Output Dia. | 5/8" |
| Output Hp | 1.31 hp |
| Output Shaft Dia. | 5/8" |
| Output Type | Solid Projecting Shaft |
| Pre-lubricated | No |
| Product Series | 700 Series |
| Reduction Type | Single Reduction Right Angle |
| Torque Rating | 235 lbs.-in. |
| Type | Single Reduction |
| Width | 6.03" |
Product Details
Related Products
| Style | Model | max. input hp | mounting type | gear ratio | rotation | output torque | finish | reduction type | center distance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | F710-50-B4-G | 4/25 hp | Any Position | 501 | CW/CCW | - | Epoxy Paint | - | - | 879.93 | |
| A | F710-40-B4-G | 4/25 hp | Any Position | 401 | CW/CCW | - | Epoxy Paint | - | - | 977.75 | |
| A | F710-30-B4-G | 4/25 hp | Any Position | 301 | CW/CCW | - | Epoxy Paint | - | - | 931.93 | |
| A | F710-20-B4-G | 1/4 hp | Any Position | 201 | CW/CCW | - | Epoxy Paint | - | - | 879.93 | |
| A | F710-15-B4-G | 1/4 hp | Any Position | 151 | CW/CCW | - | Epoxy Paint | - | - | 879.93 | |
| A | F710-10-B4-G | 3/10 hp | Any Position | 101 | CW/CCW | - | Epoxy Paint | - | - | 879.93 | |
| A | F710-5-B4-G | 3/10 hp | Any Position | 51 | CW/CCW | - | Epoxy Paint | - | - | 931.93 |
