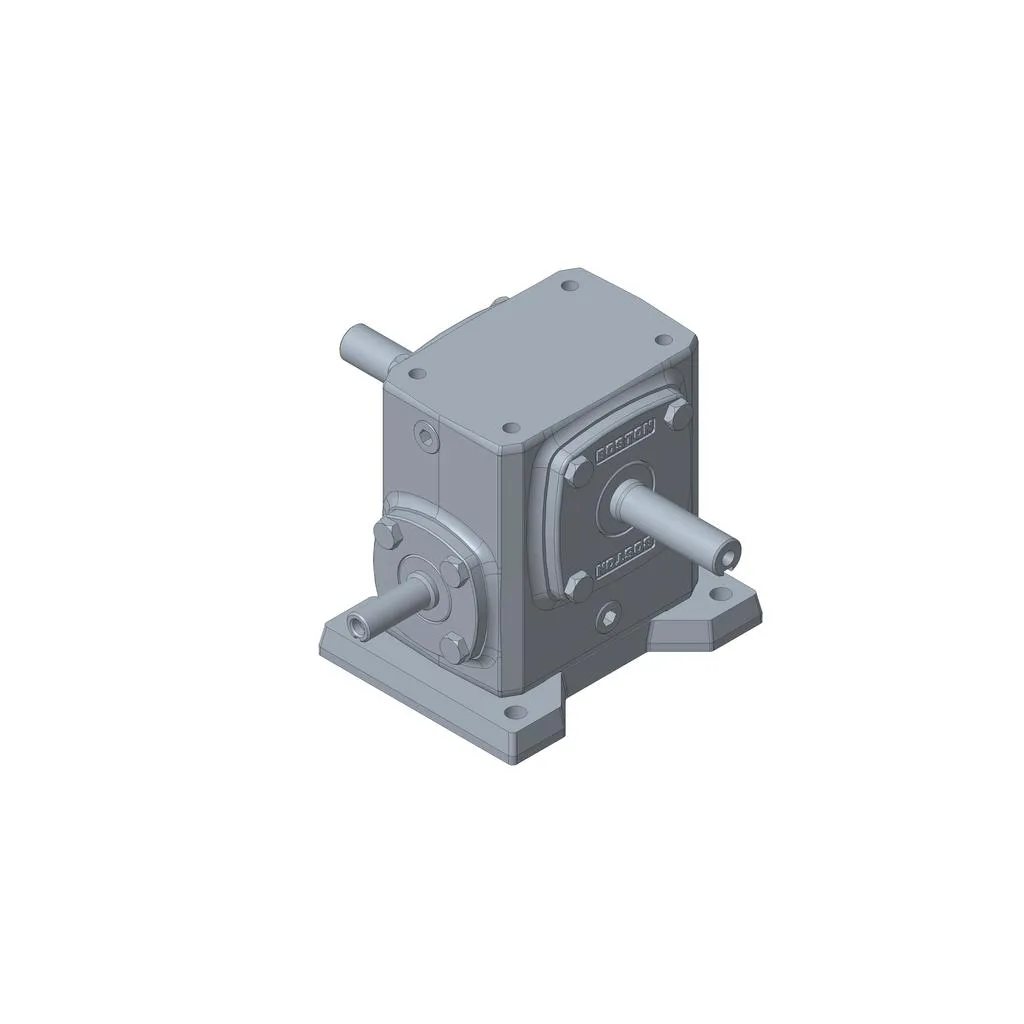

BOSTON GEAR 713A-10-H Reducer, Solid Input Shaft Hollow Bore Output Worm Gear

Item: AY9QVW

Model: 713A-10-H

In Stock

Get it by Friday, Apr 17

1.33"

Center Distance

10:1

Gear Ratio

H

H
G
J

Shaft Assembly

£969.13/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Shipping Information
See Variants

Specifications

Base Mounting Attachment	"A" Horiz. Base, Top Mount
Fan Cooled	No
Input Motor Hp	0.75 hp At AGMA Service Class I
Input Power	0.86 hp
Input Style	No Flange (Projecting Shaft)
Motor Hp	3/4 hp
Output Bore/shaft Diameter	0.625"
Output Shaft	H Solid Double Projecting Output
Output Speed	175 RPM

Output Torque	281 lbs.-in.
Pre-lubricated	No
Product Datasheet	boston-gear-710-10-g.pdf
Rated Efficiency	91%
Ratio	10:1
Recommended Lubrication	Klubersynth UH1 6-460
Reducer Material/paint	Cast Iron, Standard Paint
Reduction Type	Single Reduction Right Angle

Shipping Information

Height	2.54
Length	2.54
Width	2.54

Country Of Origin	US
Weight	6.750000
