BELL & GOSSETT

See our 858 reviews on trustpilot

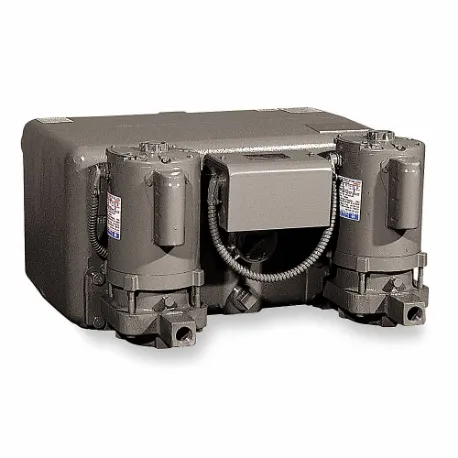

BELL & GOSSETT 160032 Condensate Return System, Duplex, 52 Ft

Item: CR4BNP
Model: 160032
In Stock

Get it by Wednesday, Apr 15

£7582.68
5.00% off
£7203.55/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bearings Permanently Lubricated Ball
Body Gasket Material Carbon, Ceramic
Compatible Discharge Pipe Size 3/4"
Compatible Intake Pipe Size 2"
Compatible Media Type Water
Discharge Connection Style NPT
Drain Port Size 1 1/4"
Equivalence Of Direct Radiation Rating 12000
Flow Rate @ 30 Ft. 33 GPM
Flow Rate @ 40 Ft. 30 GPM
Flow Rate @ 45 Ft. 21 GPM
Flow Rate @ 50 Ft. 12 GPM
For Media Type Water
For Use With Potable Systems No
Frequency 60 Hz
Height 12 15/16"
Hp 1/3 hp
Impeller Material Bronze
Intake Connection Style NPT
Length 22 1/2"
Manufacturer Warranty Length 20 yrs.
Max. Feet Of Head 52 ft.
Max. Head 52 ft.
Max. Media Temp. 200°F
Max. Rpm 3500 RPM
Maximum Flow Rate @ 30 Feet Of Head 33 GPM
Maximum Flow Rate @ 35 Feet Of Head 30 GPM
Maximum Flow Rate @ 40 Feet Of Head 30 GPM
Maximum Flow Rate @ 45 Feet Of Head 21 GPM
Maximum Flow Rate @ 50 Feet Of Head 12 GPM
Media Type Water
Motor Enclosure Design Open Dripproof
Motor Type Capacitor Start, Open Dripproof, Single Phase
Mounting Position Vertical
Nameplate Voltage 115/230V AC
No. Of Intakes 1
No. Of Pumps 2
Npt Drain Port (in.) 1/2"
Npt Low Return Inlet (in.) 2"
Npt Overflow Port (in.) 2"
Npt Pump Discharge (in.) 3/4"
Npt Vent Line Port (in.) 1 1/4"
Number Of Intakes 1
Number Of Pumps 2
Overall Height 12.94"
Overall Length 22.5"
Overall Width 22 3/4"
Overflow Port Pipe Size 2"
Overflow Port Size 2"
Phase Single
Pump Activation Type Float Switch
Pump Housing Material Cast Iron
Pump Mounting Position Vertical
Pump Type Duplex
Series WCD12-20 B-MA Series
Series Family WC
Shaft Material Stainless Steel
Tank Capacity 14 gal.
Tank Material Cast Iron
Type Duplex
Vent Line Port Pipe Size 1 1/4"
Volute Material Cast Iron
Width 22 3/4"

Product Details

Condensate Return Unit

Shipping Information

height 32.87
length 57.15
width 57.78
country of origin US
weight 103.500000
