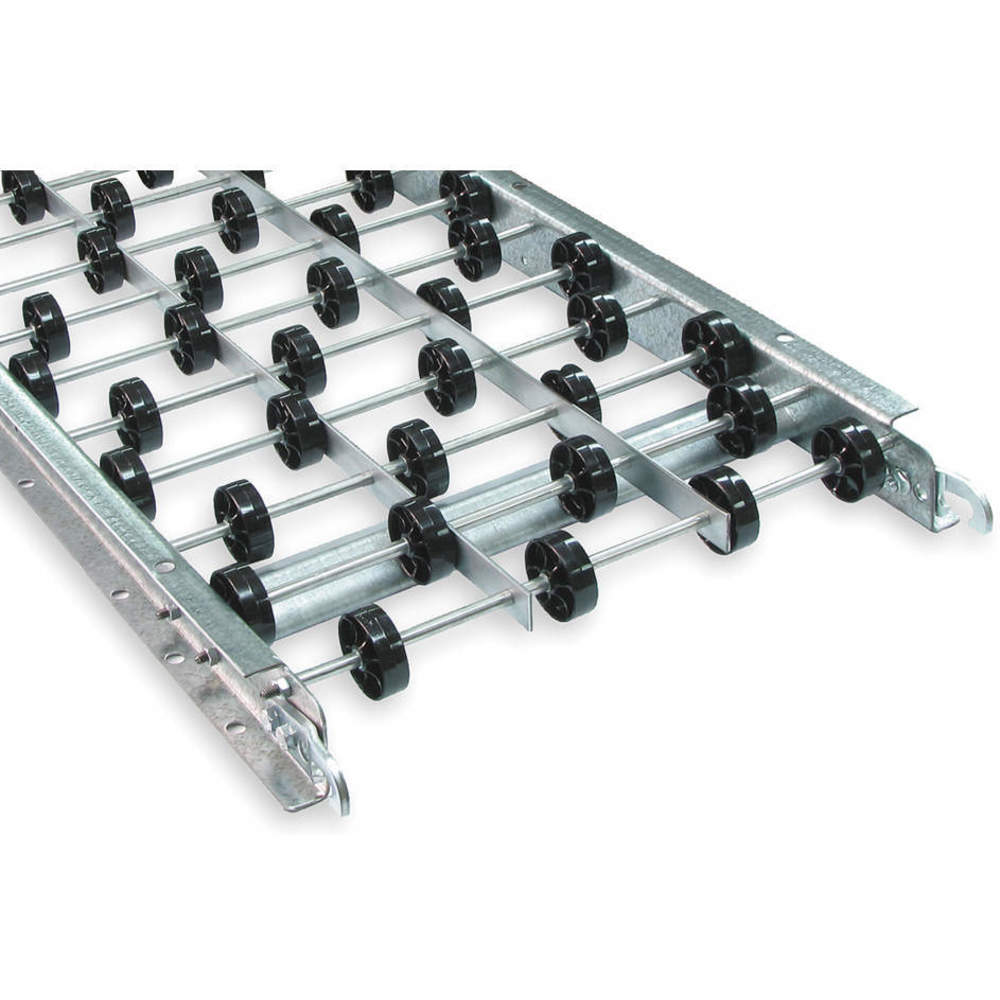

ASHLAND CONVEYOR 18X16X10GP Skatewheel Conveyor 10 Feet S Bf 16 In
Item: AC3VKQ
Model: 18X16X10GP
In Stock
Get it by Thursday, Apr 16
5.00% off
£572.96/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Axle Spacing | 3" |
|---|---|
| Bearing Type | Ball Bearing |
| Bed Length | 10 ft. |
| Between Frame Size | 16" |
| Between Frame Width | 16" |
| Center To Center Roller Spacing | 3" |
| Conveyor Frame Type | Rigid |
| Design | Bolted |
| Expandable | No |
| Finish | Galvanized |
| Frame Material | Galvanized Steel |
| Frame Shape | Straight |
| Load Capacity @ 10 Ft. Centers | 36 lbs.-ft. |
| Load Capacity @ 5 Ft. Centers | 260 lbs.-ft. |
| Material | Steel |
| Material Thickness | 12 ga. |
| Maximum Axle Spacing | 3" |
|---|---|
| Maximum Load Capacity | 260 lbs.-ft. |
| Overall Length | 10 ft. |
| Overall Width | 18" |
| Section Description | 10 ft. Straight |
| Shape | Straight |
| Skate Wheel Material | Nylon |
| Skatewheel Material | Black Plastic |
| Wheel Bearing Type | Ball Bearing |
| Wheel Bore | 1/4" |
| Wheel Design | Staggered |
| Wheel Dia. | 1.938" |
| Wheel Diameter | 1/4" |
| Wheels Per Axle | 4 |
| Wheels Per Foot | 16 |
Product Details
Shipping Information
| Height | 15.24 |
|---|---|
| Length | 2.54 |
| Width | 48.26 |
| HS Code | 8428390000 |
|---|---|
| Country Of Origin | US |
| Weight | 45.337500 |
