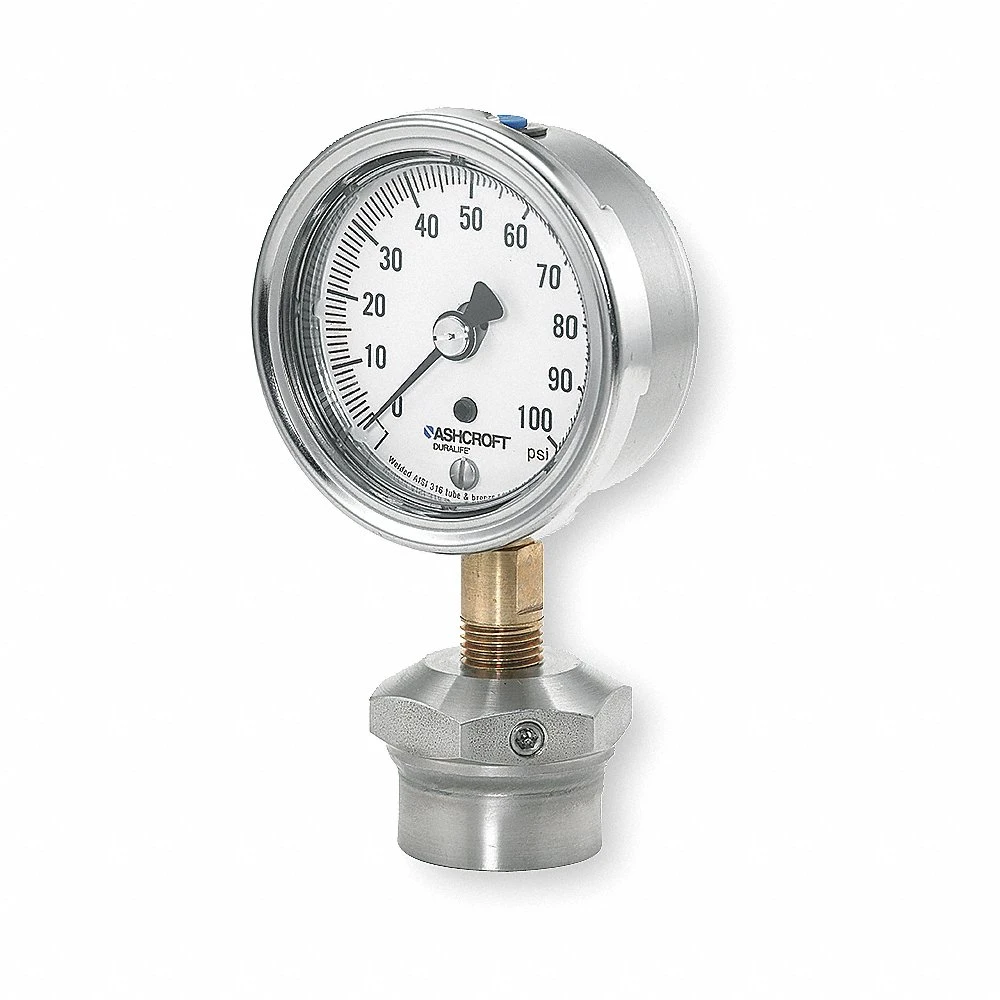

ASHCROFT 251009AW02L/310SSLXCG100 Pressure Gauge with Diaphragm Seal, 0 to 100 PSI, 1009/310-315, 2 1/2 Inch Dial, Glycerine

Item: CN8XWB
Model: 251009AW02L/310SSLXCG100
17 In Stock

Ships within 2 days via

Pressure Range
£208.66
5.00% off
£198.23/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Accuracy -1.5% to +1.5%
Accuracy Grade ASME B40.100 Grade 1A
Accuracy Scale Full Scale
Adjustable Pointer No
Ambient Operating Temperature Range -40°F to +200°F, -40°C to +93°C
Ambient Temp. Range -40°F to +200°F
Application Autoclave, Industrial
Basic Gauge Case Material Stainless Steel
Basic Gauge Sensor Material Stainless Steel
Basic Gauge Socket Material Brass
Blowout Safety Back No
Burst Pressure 1100 psi
Calibration Certificate Included No
Case Color Stainless Steel
Case Construction Welded Joint
Case Depth 1 1/4"
Case Dia. 2 3/4"
Case Diameter 2.75"
Case Grade Grade 304
Case Material Stainless Steel
Cleaned For Oxygen Service No
Clog Resistant No
Color Silver
Connection Location Lower
Dial Color White
Diaphragm Seal Process Connection Threaded
Diaphragm Seal Type Welded
Dry Dampening Feature None
Field Fillable Yes
Freeze Resistant Movement No
Gauge Case Liquid None
Gauge Case Material Stainless Steel
Gauge Case Material Grade Grade 304
Gauge Connection Location Bottom
Gauge Connection Size 1/4"
Gauge Filled With Glycerin
Gauge Nominal Dial Size 2 1/2"
Gauge Panel Mountable No
Gauge Primary Range No.ed Graduations 10
Gauge Primary Range Units Psi
Gauge Socket Material Brass
Graduations 10 psi
Hazardous Location Rating Not Rated
Includes Mini Diaphragm Seal
Includes Mounting Hardware No
Includes Vent Plug Yes
Ip Rating, Nema Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed)
Lens Material Polycarbonate
Liquid Filled Yes
Liquid-filled Case No
Mfr. Series 1009 Series, 310-315 Series
Mounting Hardware Included No
Mounting Type Stem Mount
Movement Material Stainless Steel
Movement Material Grade Grade 304
Movement Type Glass Filled Polyester Segment
Nominal Dial Size 2 1/2"
Panel-mountable No
Pointer Color Black
Pointer Material Aluminum
Pressure And Vacuum Gauge Type Pressure Gauge
Pressure Gauge Type Industrial Pressure Gauge With Diaphragm Seal
Pressure Range 0 psi to 100 psi
Pressure Range Type Pressure
Primary Pressure Range 0 psi to 100 psi
Primary Pressure Scale Color Black
Primary Scale Minor Graduations 1
Primary Scale Numeric Increments 10
Primary Scale Units Psi
Process Connection 1/4" NPT Male
Process Connection Gender Male
Process Connection Location Bottom
Process Connection Size 1/4"
Process Connection Type NPT
Process Temperature Range -40°F to +250°F
Range 0 psi to 100 psi
Removable Bezel No
Scale Type Single
Seal Compatible Process Media Water, Oil, Natural Gas and Other Combustible Gases, Liquids and Gases Compatible with Brass, Liquids and Gases Compatible with Stainless Steel, Potable Water
Seal Diaphragm Grade Grade 316L
Seal Diaphragm Material Stainless Steel
Seal External Grade Grade 316L
Seal External Material Stainless Steel
Seal Fill Liquid Glycerin
Seal Lower Housing Grade Grade 316L
Seal Lower Housing Material Stainless Steel
Seal Maximum Working Pressure 2500 psi
Seal Process Temperature Range 0°F to +400°F
Sensor Grade Grade 316L
Sensor Material Stainless Steel
Sensor Type Bourdon Tube
Smallest Graduation 1 psi
Socket Material Aluminum Bronze
Standard Logo crn.png,rohs.png
Vibration Resistance Field Fillable
Wetted Materials Aluminum Bronze, Stainless Steel
Wetted Parts Grade Grade 316L
Wetted Parts Material Aluminum Bronze, 316L Stainless Steel
Accuracy -1% to +1%
Accuracy Grade Grade 1A
Ambient Operating Temp. Range -40°F to +200°F
Application Industrial, Autoclave
Basic Gauge Lens Material Plastic
Basic Gauge Wetted Parts Brass, Stainless Steel
Calibration Certificate No
Case Color Silver
Case Construction Welded
Case Depth 1.25"
Case Dia. 2.75"
Case Liquid None
Case Material Grade Grade 304
Connection Size 1/4"
Connection Type MNPT
dia. 2 3/4"
Dial Size 2 1/2"
diaphragm seal material grade Grade 316L
Filled With Glycerin
Gauge Application Pumps, Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics, pneumatics, Severe Ambient Conditions
Material Stainless Steel
Material Grade Grade 304
Max. Pressure 100 psi
Operating Temp. -40°F to +150°F
Panel Mountable No
primary range no.ed graduations 10
Primary Range Smallest Graduation 1
Primary Range Units psi
Primary Range Values 0 to 100
Process Temp. Range -40°F to +250°F
seal external material grade Grade 316L
Seal Max. Working Pressure 2500 psi
Seal Process Temp. Range 0°F to 400°F
Sensor Material Grade Grade 316
Socket Material Brass
standard CRN REGISTERED, ROHS
Type Pressure Gauge
Vibration Resistance Field-Fillable

Product Details

Seal

Shipping Information

height 3.18
length 6.98
width 6.98
country of origin US
weight 0.360000
