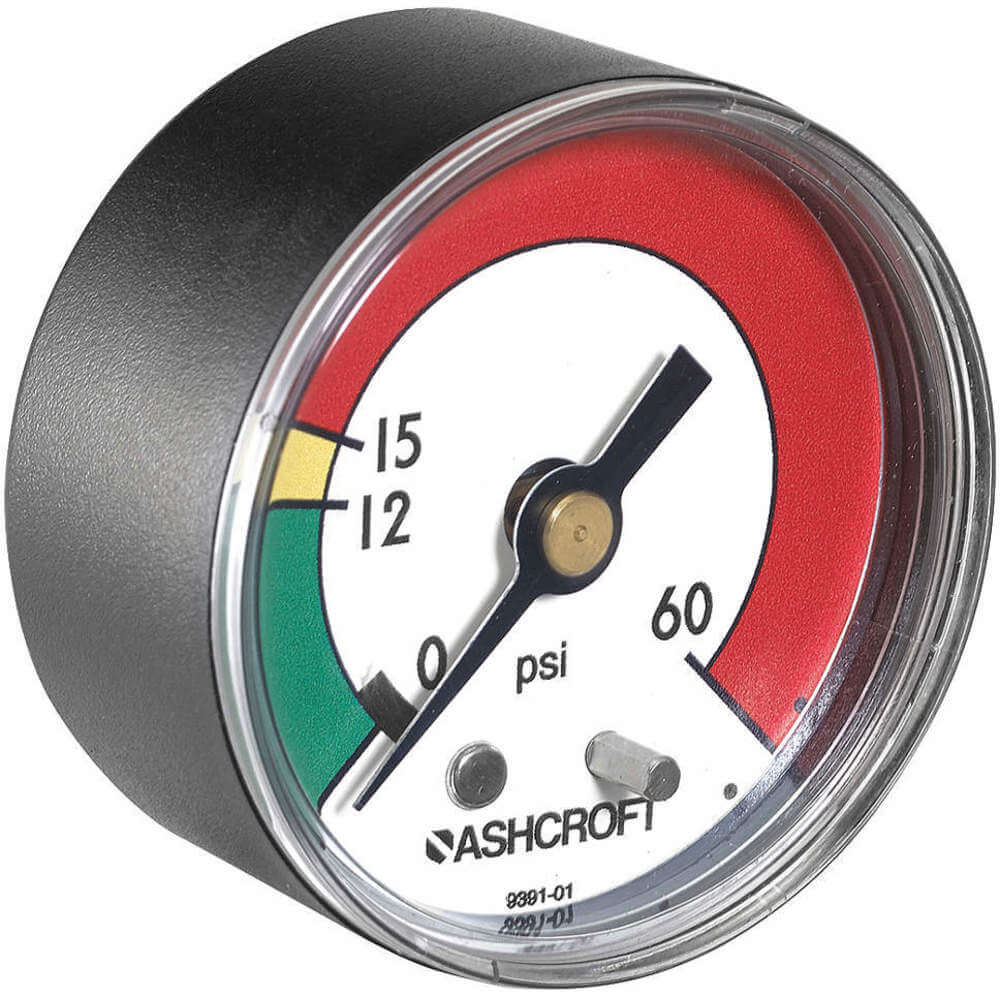

| Item | Pressure Gauge |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Blowout Safety Back | No |
| Burst Pressure | 1600 psi |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Depth | 1.01" |
| Case Dia. | 1 16/25" |
| Case Material | ABS |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Connection Location | Back |
| Dial Face Material | Aluminum |
| Dial Size | 2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/8" |
| Gauge Nominal Dial Size | 2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Type | Test |
| Graduations | 5 psi |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Plastic , Polycarbonate |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Movement Material | Polyester |
| Nominal Dial Size | 2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +150°F |
| Panel-mountable | No |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Scale Color | Black |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Range | 0 psi to 60 psi |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 0.5 psi |
| Socket Material | Brass |
| Tube Material | Bronze |
| Accuracy Grade | ASME B40.100 Grade B |
| Application | Beverage Dispensing Systems, Filtration Monitoring, Hydraulics, Instrument And Controls, OEM Applications, Paint Sprayers, Pneumatics, Pumps, Water Pressure Testing |
| Case Diameter | 1.64" |
| Compatible Process Media | Water |
| Dry Dampening Feature | FlutterGuard |
| Gauge Case Material | ABS |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Mounting Type | Stem Mount |
| Pointer Color | Black |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Process Connection Type | NPT |
| Standards | ASME, CRN, UL 252A, UL 404 |
| Vibration Resistance | Liquid Filled |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.57 |
| Ship length (cm) | 4.17 |
| Ship width (cm) | 4.17 |
| HS code | 9026208000 |
| Country of Origin | BR |
