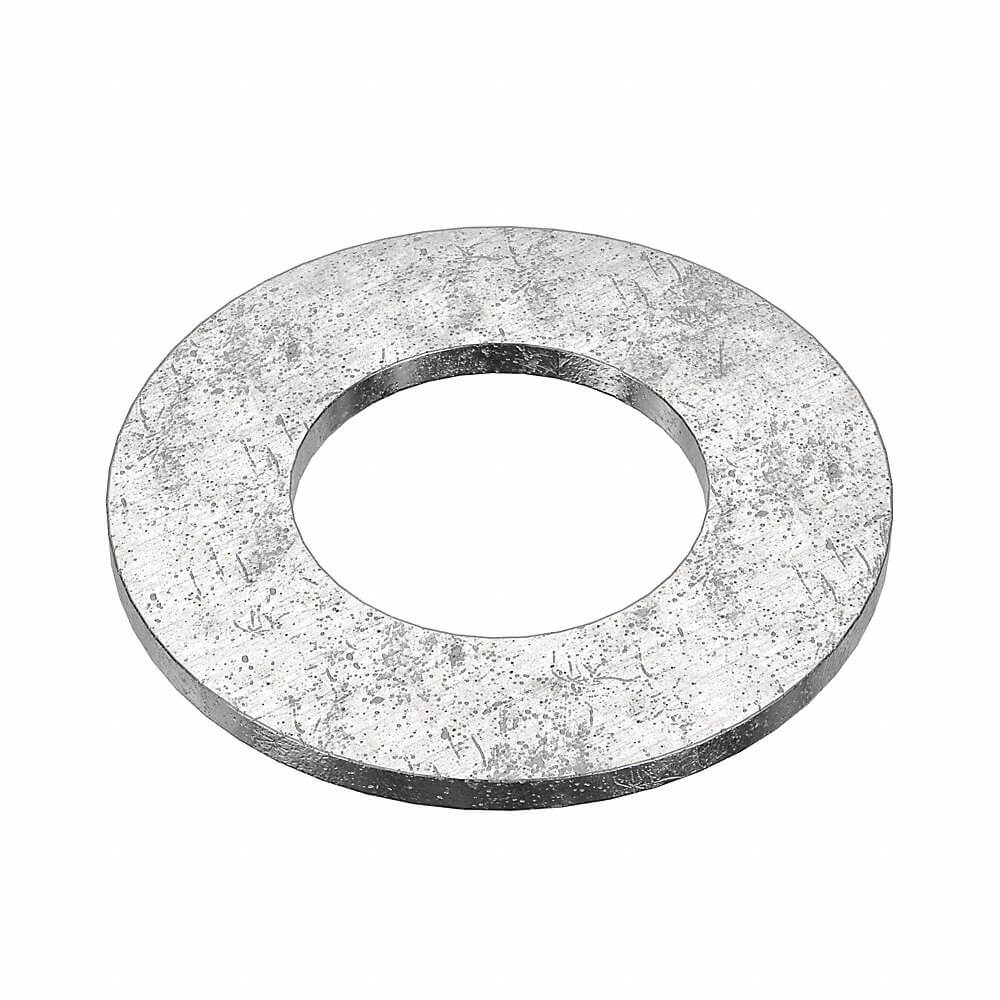

APPROVED VENDOR U51410.100.0004 Flat Washer, 1 In Fits Bolt Size, Oversized, 1.063 In I.D., 2 In O.D., 0.109 In Thk., 5PK
Item: AB7EGA
Model: U51410.100.0004
28 In Stock
Ships within 2 days via
5.00% off
£5.3/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Dimensional Standards | ASME B18.22.1 |
|---|---|
| Finish | Plain |
| Fits Bolt Sizes | 1" |
| Flat Washer Type | Oversized |
| For Screw Size | 1" |
| Grade | Grade 18-8 |
| Inside Dia. | 1.063" |
| Inside Diameter Tolerance | -0.007" to +0.03" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 0.132" |
| Minimum Temperature | -58°F |
|---|---|
| Minimum Thickness | 0.086" |
| Outside Dia. | 2" |
| Outside Diameter Tolerance | -0.007" to +0.030" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.109" |
| Thickness Tolerance | -0.023" to +0.023" |
| Washer Type | Oversized Washer |
Product Details
Flat Washer
Shipping Information
| height | 1.27 |
|---|---|
| length | 16.99 |
| width | 16.38 |
| hs code | 7318220000 |
|---|---|
| country of origin | TW |
| weight | 0.171000 |
