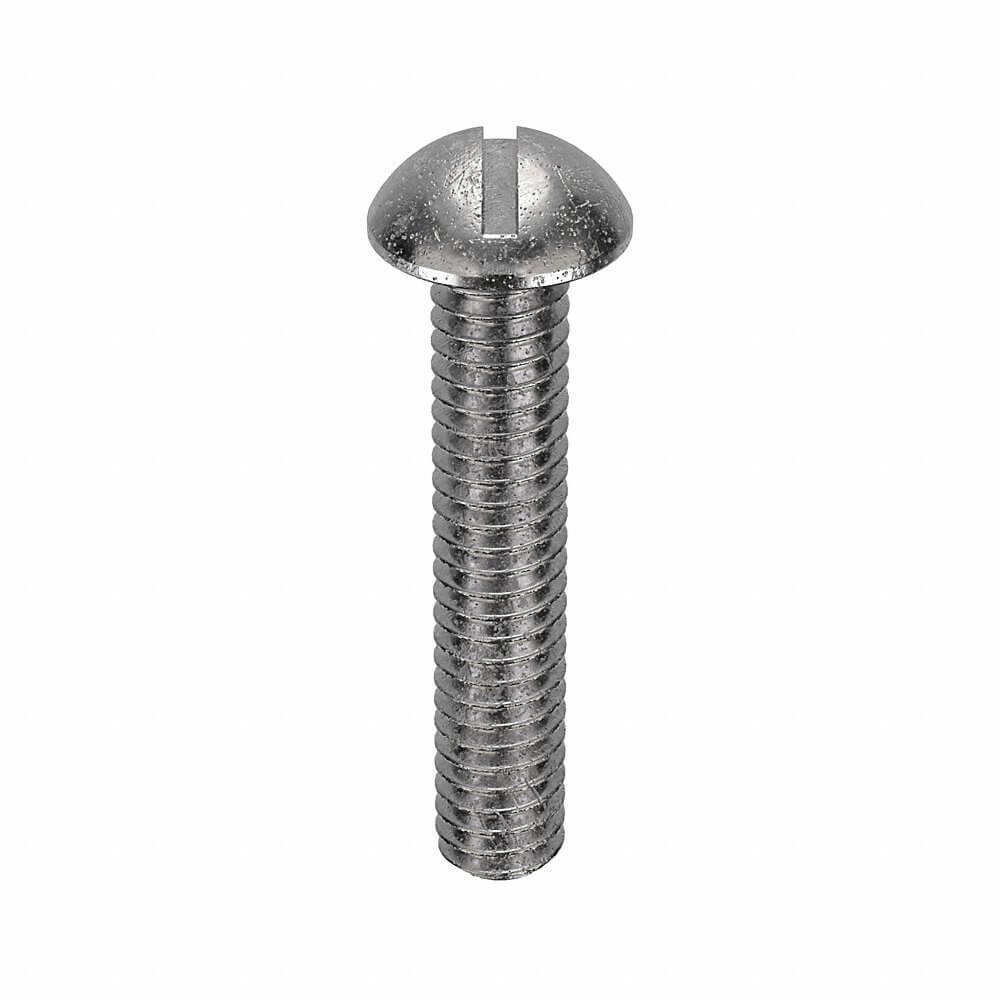

APPROVED VENDOR U51213.016.0087 Machine Screw, 8-32 Thread Size, SS, 7/8 In Lg., Std, Rnd Spacer
Item: AB9BTL
Model: U51213.016.0087
In Stock
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 2A |
|---|---|
| Drive Type | Slotted |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Dia. | 0.312" |
| Head Height | 0.309" |
| Head Type | Round Spacer |
| Length | 7/8" |
| Material | Stainless Steel |
| Standard Logo | asme.png |
|---|---|
| System Of Measurement | Imperial |
| Tensile Strength | 60000 psi |
| Thread Direction | Right Hand |
| Thread Length | 7/8" |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Machine Screw
Shipping Information
| height | 4.06 |
|---|---|
| length | 8.64 |
| width | 5.08 |
| hs code | 7318154000 |
|---|---|
| country of origin | TW |
| weight | 0.250200 |
Related Products
| Style | Model | Thread Size | Head Height | Thread Type | Head Dia. | Drive Size | Grade | Head Width | Diameter | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U51213.008.0018 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 4.82 | |
| B | U51213.008.0025 | #2-56 | 0.162" | Coarse | 0.162" | - | Grade 18-8 | - | - | 9.09 | |
| C | U51213.008.0037 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 6.13 | |
| D | U51213.008.0050 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 4.08 | |
| E | U51213.008.0062 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 7.19 | |
| F | U51213.008.0075 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 7.51 | |
| G | U51213.008.0100 | #2-56 | 0.069" | Coarse | 0.162" | - | Grade 18-8 | - | - | 11.30 |
