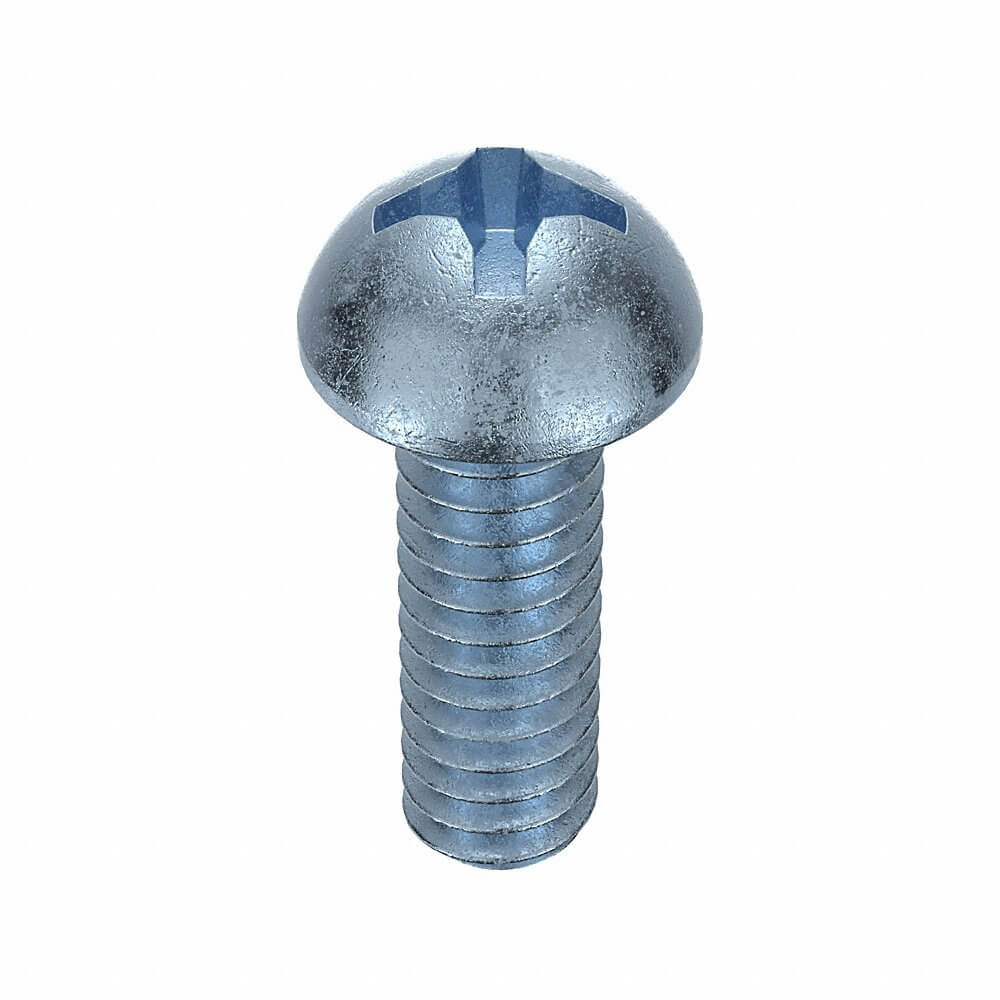

APPROVED VENDOR U24211.016.0100 Machine Screw, 8-32 Thread Size, Steel, 1 In Lg., Std, Rnd Spacer, Phillips, 100PK
Item: AB9NJP
Model: U24211.016.0100
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 3A, Class 2A |
|---|---|
| Dimensional Standards | ASME B18.6.3 |
| Drive | Phillips |
| Drive Size | #2 |
| Drive Type | Phillips |
| Fastener Length | 1" |
| Finish | Zinc Plated |
| Head Dia. | 0.312" |
| Head Height | 3/25" |
| Head Type | Round Spacer |
| Length | 1" |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Minimum Head Height | 0.107" |
|---|---|
| Minimum Head Width | 0.285" |
| Screw Size | #8 |
| Standard Logo | asme.png |
| System Of Measurement | Imperial |
| Tensile Strength | 60000 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A, Class 3A |
| Thread Length | 1" |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Machine Screw
Shipping Information
| height | 2.03 |
|---|---|
| length | 9.91 |
| width | 7.11 |
| hs code | 7318154000 |
|---|---|
| country of origin | CN |
| weight | 0.272700 |
Related Products
| Style | Model | Thread Size | Head Height | Thread Type | Head Dia. | Drive Size | Head Width | Tensile Strength | Class | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U24211.008.0025 | #2-56 | 0.162" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 10.87 | |
| B | U24211.008.0037 | #2-56 | 0.069" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 4.51 | |
| C | U24211.008.0050 | #2-56 | 0.162" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 9.33 | |
| D | U24211.008.0075 | #2-56 | 0.069" | Coarse | 0.162" | #1 | - | 60000 psi | Class 3A, Class 2A | 5.56 | |
| E | U24211.011.0018 | #4-40 | 0.086" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 4.26 | |
| F | U24211.011.0025 | #4-40 | 0.211" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 5.19 | |
| G | U24211.011.0031 | #4-40 | 0.086" | Coarse | 0.212" | #1 | - | 60000 psi | Class 3A, Class 2A | 5.10 |
