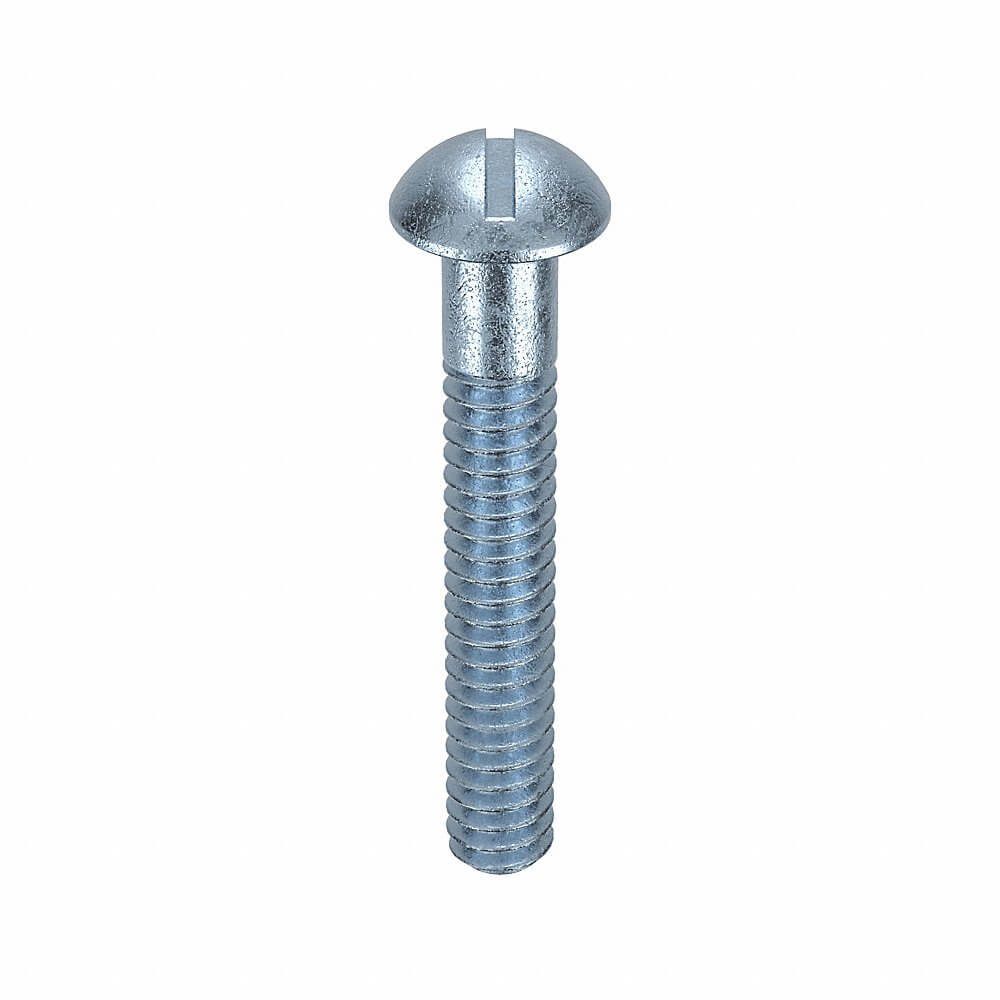

APPROVED VENDOR U24210.019.0125 Machine Screw, 10-24 Thread Size, Steel, 1 1/4 In Lg., Std, Slotted, 100PK
Item: AB9NBK
Model: U24210.019.0125
17 In Stock
Ships within 2 days via
5.00% off
£14.44/pkg. of 100
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Class | Class 3A, Class 2A |
|---|---|
| Dimensional Standards | ASME B18.6.3 |
| Drive | Slotted |
| Drive Size | 5/16" |
| Drive Type | Slotted |
| Fastener Length | 1 1/4" |
| Finish | Zinc Plated |
| Hardness | Rockwell B69-B100 |
| Head Dia. | 0.362" |
| Head Height | 0.359" |
| Head Type | Round Spacer |
| Hole Size | 0.219" |
| Length | 1 1/4" |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Maximum Temperature | 375°F |
| Minimum Head Height | 0.123" |
|---|---|
| Minimum Head Width | 0.333" |
| Minimum Temperature | 0°F |
| Recommended Hole Size | 0.219" |
| Rockwell Hardness | B69 to B100 |
| Screw Size | #10 |
| System Of Measurement | Imperial |
| Temp. Range | -0°F to +375°F |
| Tensile Strength | 60000 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A, Class 3A |
| Thread Length | 1" |
| Thread Size | #10-24 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Shipping Information
| Height | 5.59 |
|---|---|
| Length | 9.4 |
| Width | 8.89 |
| HS Code | 7318152010 |
|---|---|
| Country Of Origin | TW |
| Weight | 0.436500 |
Related Products
| Style | Model | Thread Size | Head Height | Head Dia. | Drive Size | Hardness | Hole Size | Diameter | Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U24212.011.0062 | #4-40 | 0.075" | 0.212" | #1 | Rockwell B70 | - | - | Coarse | 3.71 | |
| B | U24210.037.0050 | 3/8"-16 | 0.708" | 0.717" | #4 | Rockwell B69-B100 | - | - | Coarse | 39.70 | |
| C | U24210.016.0050 | #8-32 | 3/25" | 0.312" | 1/4" | Rockwell B70-B100 | 0.188" | - | Coarse | 5.44 | |
| D | U24210.016.0075 | #8-32 | 3/25" | 0.312" | 1/4" | Rockwell B69-B100 | 0.188" | - | Coarse | 7.31 | |
| E | U24210.016.0100 | #8-32 | 3/25" | 0.312" | 1/4" | Rockwell B69-B100 | 0.188" | - | Coarse | 9.85 | |
| F | U24210.016.0150 | #8-32 | 0.309" | 0.312" | 1/4" | Rockwell B69-B100 | 0.188" | - | Coarse | 12.30 | |
| G | U24210.019.0050 | #10-24 | 0.137" | 0.362" | 5/16" | Rockwell B70-B100 | 0.219" | - | Coarse | 8.02 |
