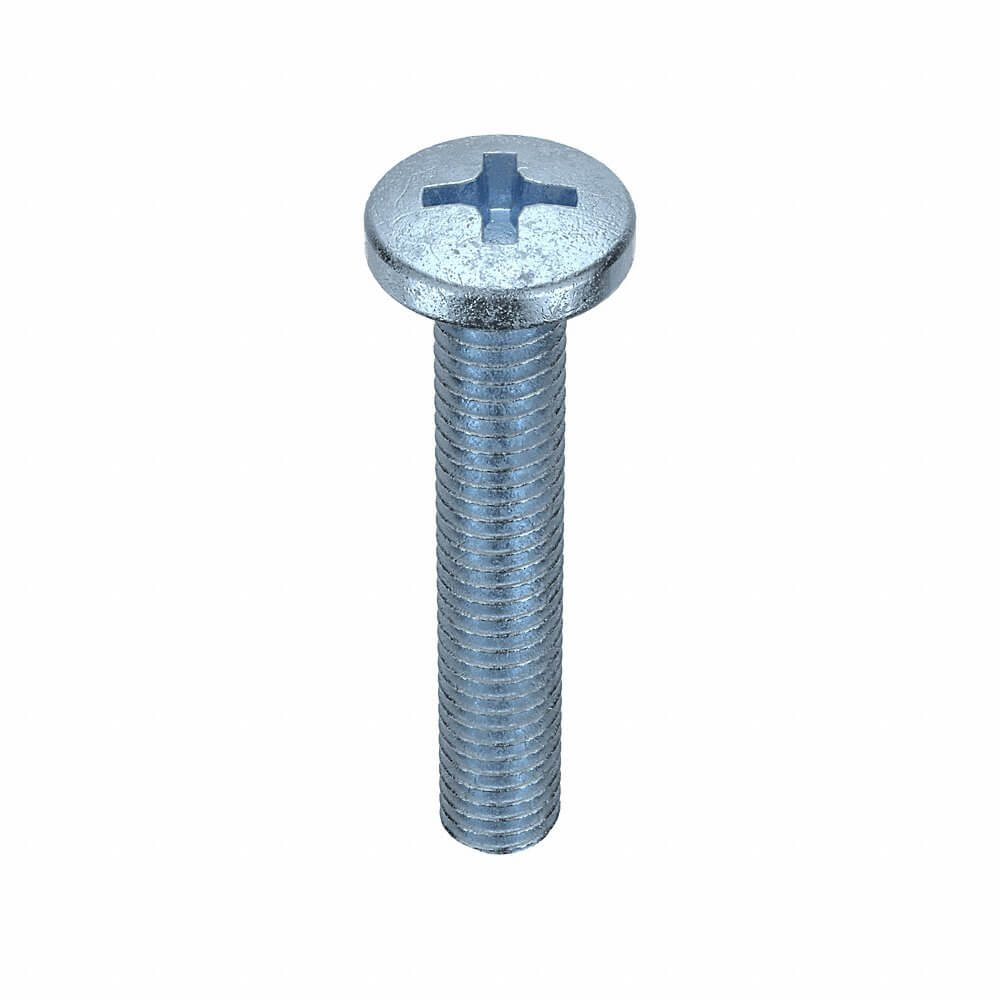

APPROVED VENDOR MPPJ060350-025P1 Machine Screw, M6x1 Thread Size, Steel, 30.9 mm Lg., Std, Pan, 25PK
Item: AE9AKX
Model: MPPJ060350-025P1
14 In Stock
Ships within 2 days via
5.00% off
£39.83/pkg. of 25
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 4.8 |
|---|---|
| Dimensional Standards | Jis B 1111 |
| Drive | Phillips |
| Drive Size | #3 |
| Drive Type | Phillips |
| Fastener Length | 35 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Dia. | 10.5 mm |
| Head Height | 3.9 mm |
| Head Type | Pan |
| Includes Nut | No |
| Includes Washer | No |
| Length | 30.9 mm |
| Machine Screw Type | Standard Machine Screw |
|---|---|
| Material | Steel |
| Material Grade/class | 4.8 |
| Overall Length | 38.9 mm |
| Rockwell Hardness | B71 to B99 |
| Screw Size | M6 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Length | 30.9 mm |
| Thread Pitch | 1 mm |
| Thread Size | M6 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Machine Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 10.16 |
| width | 4.57 |
| hs code | 7318154000 |
|---|---|
| country of origin | TW |
| weight | 0.193500 |
