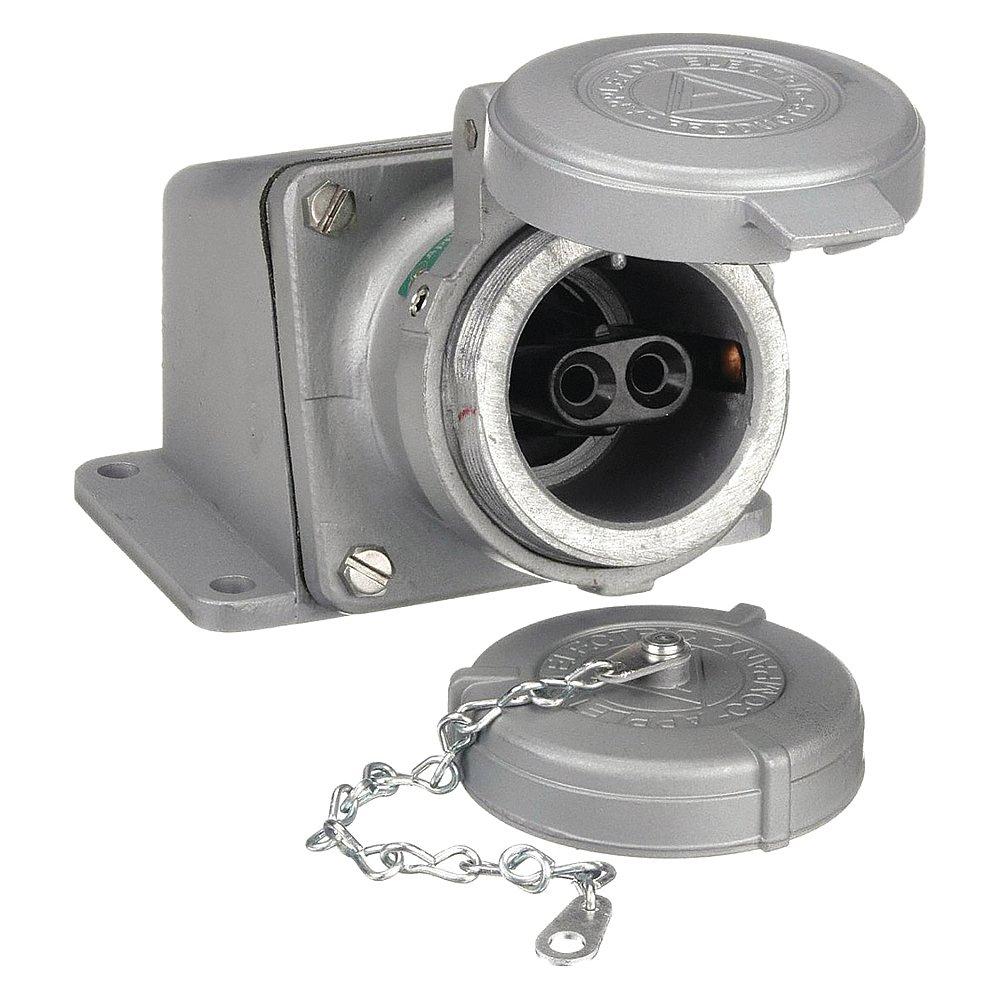

APPLETON ELECTRIC ADRE3022-50 Receptacle, 30A, 120/240/480/600V AC, 10hp, Style 1 Grounding, Gray
Item: AA4DKG
Model: ADRE3022-50
26 In Stock
Ships within 2 days via
5.00% off
£714.67/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Cap Type | Screw On Cap |
|---|---|
| Connection Orientation | 15° Elbow |
| Contact Material | Copper |
| Current Rating | 30A |
| Face Diameter | 3.38" |
| Features | Locking Collar To Secure 60A Or 100A Plug/Connector Connections, Plugs May Be Withdrawn In An Emergency Under Full Rated Loads Without Separate Disconnect Switch |
| Flange Height | 3.38" |
| Flange Type | Flanged |
| Flange Width | 3.38" |
| For Maximum Cable Diameter | 1.125" |
| Grounding | Grounded |
| Grounding Style | Style 1 |
| Horsepower Rating | 10 hp |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Includes Mounting Hardware | Yes |
| Insulation Material | Fiberglass Reinforced Polyester |
| Ip Rating | Not Rated |
| Market | Industrial |
| Material | Copper Free Aluminum |
| Maximum Operating Temperature | 104°F |
| Maximum Wire Size | 6 AWG |
|---|---|
| Minimum Operating Temperature | -13°F |
| Minimum Wire Size | 10 AWG |
| Mounting Box Entry | Dead End, Feed Through |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Nema Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Phase | Three |
| Power Indicating Light | No |
| Product Datasheet | appleton-electric-adr3023rs.pdf |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | Yes |
| Shrouded | Yes |
| Standard Logo | ul.png |
| Ul 94 Flammability Rating | Not Rated |
| Voltage | 600V AC |
| Voltage Rating | 120/240/480/600V AC |
| Wire Connection Type | Screw Terminals |
| standard | NEC/CEC |
Product Details
Shipping Information
| Height | 10.67 |
|---|---|
| Length | 13.72 |
| Width | 12.7 |
| HS Code | 8536908085 |
|---|---|
| Country Of Origin | MX |
| Weight | 0.697500 |
