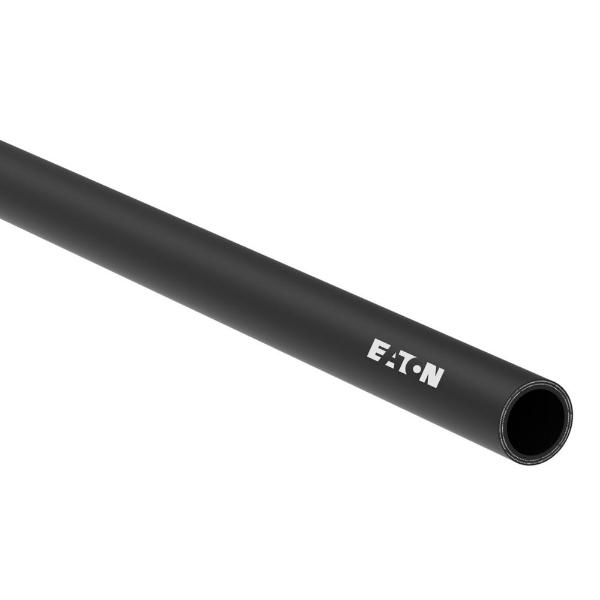

AEROQUIP GH781-12R250 Hydraulic Hose, 3500 psi, 3/4 Inch Hose I.D., 1 1/8 Inch Hose O.D., 250 ft Hose Lg
Item: AA2AYH
Model: GH781-12R250
In Stock
Get it by Wednesday, Apr 15
5.00% off
£4256.71/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Abrasion Resistance | Premium |
|---|---|
| Application | High Pressure Hydraulic Systems With Petroleum And Water-glycol Based Fluids, For Lubricating Oils And Water. |
| Burst Pressure | 13960 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Conductivity | Conductive |
| Construction | 2-ply braid |
| Cover Material | PVC, Nitrile Blend |
| Dash Size | 12 |
| Height | 3/4" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | PVC, Nitrile Blend |
| Hose Fittings | TTC |
| Hose Inside Dia. | 3/4" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 1 1/8" |
| Hose Reinforcement Material | Carbon Steel |
| Hose Tube Material | Nitrile |
| Impulse Cycle Life | 400000 Cycles |
| Inside Dia. | 3/4" |
|---|---|
| Lay Line Style | Transfer Tape |
| Length | 250 ft. |
| Max. Operating Temp. | 258.8°F |
| Max. Working Pressure @ 70 F | 3500 psi |
| Min. Bend Radius | 4 18/25" |
| Min. Operating Temp. | -50.8°F |
| Outside Dia. | 1.13" |
| Package Form | Reel |
| Reinforcement Material | Steel Wire |
| Safety Factor | 4:1 |
| Standard Logo | msha.png,uscg.png,abs.png |
| Temp. Range | -50°F to +260°F |
| Tube Material | Nitrile |
| Wall Thickness | 0.37" |
| Warranty | Hydraulics Warranty |
| Width | 3/4" |
| Working Pressure | 3485 psi |
| standard | ABS, DNV, EN857 2SC, IC 84/19, ISO 18752, MSHA, SAE 100R16, USCG |
Product Details
Hydraulic Hose
Shipping Information
| height | 1.9 |
|---|---|
| length | 73.66 |
| width | 1.9 |
| hs code | 4009220050 |
|---|---|
| country of origin | US |
| weight | 59.625000 |
Related Products
| Style | Model | Hose Inside Dia. | Hose Length | Dash Size | Min. Bend Radius | Hose Outside Dia. | Burst Pressure | Inside Dia. | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GH781-4R250 | 1/4" | 250 ft. | 4 | 1.97" | 9/16" | 26025 psi | 1/4" | -50°F to +260°F | 1,829.93 | |
| A | GH781-6R250 | 3/8" | 250 ft. | 6 | 2.55" | 23/32" | 23200 psi | 0.38" | -50°F to +260°F | 2,024.16 | |
| A | GH781-8R250 | 1/2" | 250 ft. | 8 | 3.54" | 27/32" | 20000 psi | 1/2" | -50°F to +260°F | 2,429.12 | |
| A | GH781-10R250 | 5/8" | 250 ft. | 10 | 3.94" | 31/32" | 16060 psi | 0.63" | -50°F to +260°F | 3,411.64 | |
| A | GH781-16R150 | 1" | 150 ft. | 16 | 5.9" | 1 7/16" | 12000 psi | 1" | -50°F to +260°F | 2,873.44 |
