AEROQUIP 190295-10S Hydraulic Hose Fitting
Item: AD8GYA
Model: 190295-10S
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹125.940000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Angle | 90° |
|---|---|
| Compatible Hose Id | 0.63" |
| Compatible Hoses | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Compatible Tube Od | 0.63" |
| Construction Style | Reusable |
| Drop Dimension | 2.57 |
| End Gender 1 | Female |
| End Size 1 | 7/8" |
| End Type 1 | SAE 37 |
| End Type 2 | Line, Hose, Tube |
| Finish/coating | Trivalent Chromate Zinc |
| Finish/plating | Dura Kote |
| Fitting Shape | 90° Elbow |
| For Hose Dash Size | -10 |
| For Hose I.d. | 5/8" |
| For Use With Hose Series | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, FC802 |
| Height | 3 17/25" |
| Hex Size 1 | 1" |
| Hose Cut-off Factor | 1.9" |
| Hose Dash Size | -10 |
| Hose Fitting A Connection Type | Universal |
| Hose Fitting A Gender | Female |
|---|---|
| Hose Fitting A Size | 7/8" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 5/8" |
| Inside Dia. | 0.46" |
| Item Type | Fitting Assembly |
| Length | 3.69" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70 F | 1750 psi |
| Operating Pressure | 3000 psi |
| Outside Diameter | 1.22" |
| Overall Length | 3.19 mm |
| Reusable | Yes |
| Thread Sealant | No |
| Thread Size | 7/8"-14 |
| Thread Type | Universal |
| Warranty | Hydraulics Warranty |
| Width | 1 3/25" |
| standard | FC 300, SAE 100R5 |
Product Details
Hydraulic Hose Fitting
Shipping Information
| height | 9.35 |
|---|---|
| length | 9.37 |
| width | 2.84 |
| hs code | 7307929000 |
|---|---|
| country of origin | US |
| weight | 0.211500 |
Related Products
| Style | Model | For Hose Dash Size | Fitting Shape | For Hose I.d. | Material | Angle | Inside Dia. | Height | Hose Fitting B Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 190297-5S | -5 | 45° Elbow | 5/16" | Stainless Steel | 45 Degree | 0.18" | 1.41" | 5/16" | 75.43 | |

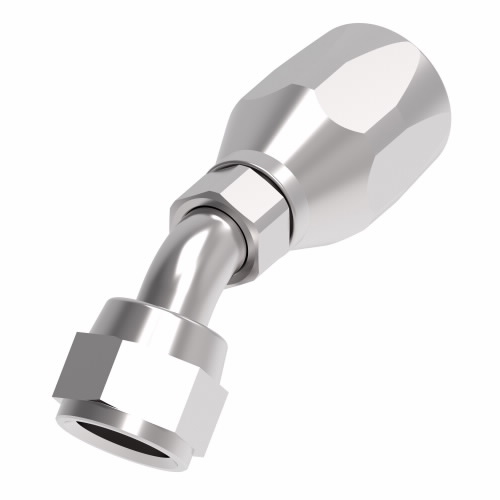

| B | 190299-6S | -6 | 45° Elbow | 3/8" | Carbon Steel | 45 Degree | 6/25" | 1.62" | 3/8" | 78.86 | |
| B | 190299-12S | -12 | 45° Elbow | 3/4" | Carbon Steel | 45 Degree | 0.55" | 2.83" | 3/4" | 140.09 | |
| C | 190296-5S | -5 | 90° Elbow | 5/16" | Carbon Steel | 90° | 0.17" | 1.51" | 5/16" | 79.61 | |
| C | 190302-6S | - | - | - | Carbon Steel | 90 Degree | 6/25" | 1 17/25" | - | 79.10 | |
| D | 190302-12S | -12 | 90° Elbow | 3/4" | Carbon Steel | 90° | 0.55" | 2.42" | 3/4" | 139.00 | |
| E | 190295-4S | -4 | 90° Elbow | - | Carbon Steel | 90° | 0.13" | 2.51" | 1/4" | 71.41 |
