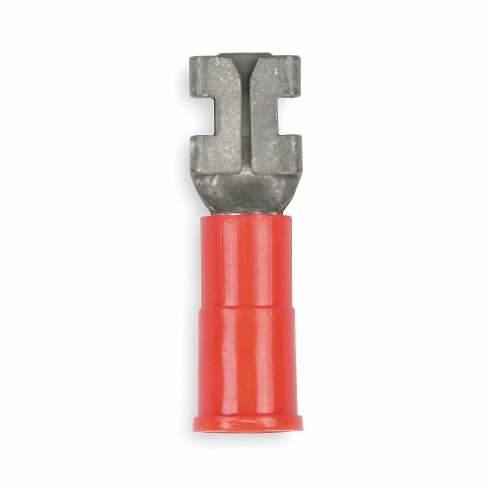

| Item | Female Disconnect |
| Barrel Inside Dia. | 0.085" |
| Barrel Length | 1/4" |
| Color Code | Red |
| Connection Type | Crimp |
| Connection Width | 0.187" |
| Disconnect Type | Female |
| Fastener Orientation | Female |
| Insulation | Partial |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Mates With Female Width | 0.187" |
| Mates With Male Tab Width (w') | 0.187" |
| Max. Temp. | 221°F |
| Max. Voltage | 600V |
| Maximum Conductor Size | 18 AWG |
| Maximum Insulation Outer Diameter | 0.145" |
| Min. Conductor Size | 22 AWG |
| Overall Length | 0.78" |
| Pad Width | 0.187" |
| Seam | Butted |
| Solution For | Wireless Network Infrastructure Accessories |
| Tab Size | 0.02" x 0.187" |
| Tab Width | 0.187" |
| Terminal Style | Standard |
| Terminal Type | Female Disconnect |
| Wire Size | 22 AWG to 18 AWG |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 1.98 |
| Ship width (cm) | 4.32 |
| HS code | 8536904000 |
| Country of Origin | US |
| Model | Barrel Inside Dia. | Color Code | Overall Length | Tab Size | Wire Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|
| 7100033017 | 0.085" | Blue | 0.78" | 0.187 x 0.020" | 16 to 14 AWG | 100 | £123.30 | |
| 7100024644 | 0.175" | Yellow | 1.23" | 0.375 x 0.050" | 12 to 10 AWG | 500 | £443.59 | |
| 7000133285 | 0.08" | Blue | 0.87" | 0.250 x 0.032" | 16 to 14 AWG | 100 | £113.82 |
