ACCURIDE 2907 Series Light Duty And Low Profile Slides with Over Travel

Item: AD8KMD
Model: C 2907-18D
Check Availability
In Stock

Get it by Jun 12, Thursday

Closed Length
£133.08 /pack (ex. VAT)
Add To Cart
Request Quote

Payment

Delivery

Specifications

Item Drawer Slide
Closed Length 18"
Closure Type Conventional
Color Silver
Detent Type Hold In
Disconnect Method Lever
Extended Length 38"
Extension Type Three Fourth
Finish Zinc Plated
Glide Mechanism Ball Bearing
Hardware Not Included
Height 1 13/16"
Load Capacity 115 lbs.

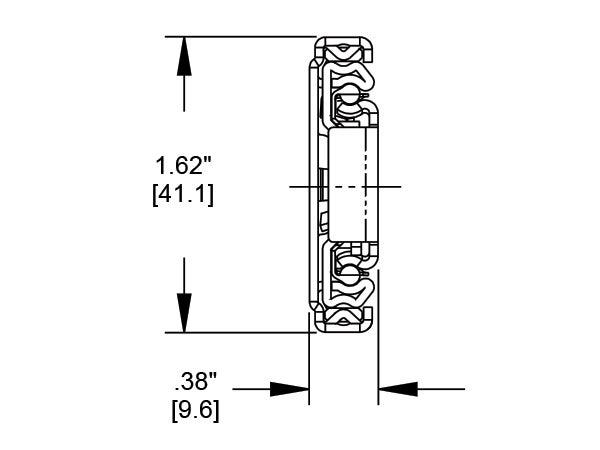

Low Profile Height 1.62"
Material Steel
Mounting Type Bracket
Over Travel 2"
Over Travel Distance 2"
Screw Head Type Pan
Screw Size #8-32, #10-32, #8
Screw Type Pan Head
Side Space 0.38"
Tested Drawer Width 16"
Travel Length 20"
Width 1/2"
Includes Hardware Hardware Not Included
Over Travel Length 2"
Overall Height 1 5/8"
Overall Width 3/8"
Product Type Drawer Slide
Standards ROHS

Product Details

    • Glide Mechanism (Ball Bearing)
    • Over Travel Distance (2")

Shipping Information

Height (cm) 5.08
Length (cm) 45.72
Width (cm) 15.24
HS Code 8302423015
Country Of Origin CN
Weight (kg) 1.665

Documentation
