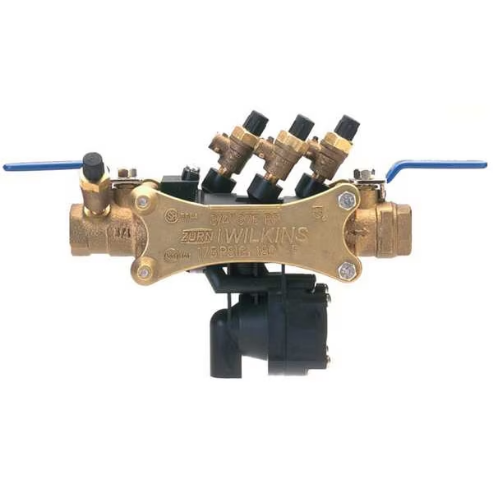

ZURN 1-375 Reduced Pressure Zone Backflow Preventer

Item: AE7WGE
Model: 1-375
15 In Stock

Ships within 2 days via

£966.07
5.00% off
£917.76/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Backflow Preventer Type Reduced Pressure Assembly (Rp)
Body Material Glass-Filled Nylon
Check Mechanism Material Plastic
Connection Size - Side 1 1"
Connection Size - Side 2 1"
Connection Type Flange
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
Flow Rate 72 GPM
For Media Water
Freeze Protection No
Hazard Protection Level High Health Hazard
Includes Freeze Protection No Freeze Sensor
Includes Strainer No
Length 11.187"
Material Bronze
Max. Pressure 175 psi
Max. Pressure (cwp) 175 psi
Max. Temp. 180°F
Media Temp. Range 33°F to 180°F
Mounting Orientation Horizontal, Vertical
Overall Height 7.44"
Overall Length 11.19"
Overall Width 8"
Pipe Size 1"
Protection Type Back Pressure, Back Siphonage
Shut-off Valve Type Ball Valve
Spring Material Stainless Steel
Standard Logo iapmo.png,csa.png,ul.png,fm.png
Temp. Range +33°F to +180°F
Valve Series 375
Width 2 1/4"
standard APPROVED BY THE FOUNDATION FOR CROSS-CONNECTION CONTROL AND HYDRAULIC RESEARCH AT THE UNIVERSITY OF SOUTHERN CALIFORNIA, ASSE 1013, AWWA C511, CSA B64.4, CUPC LISTED

Product Details

Reduced Press. Zone Assembly

Shipping Information

height 12.7
length 28.42
width 5.72
hs code 8481309000
country of origin CN
weight 4.500000
