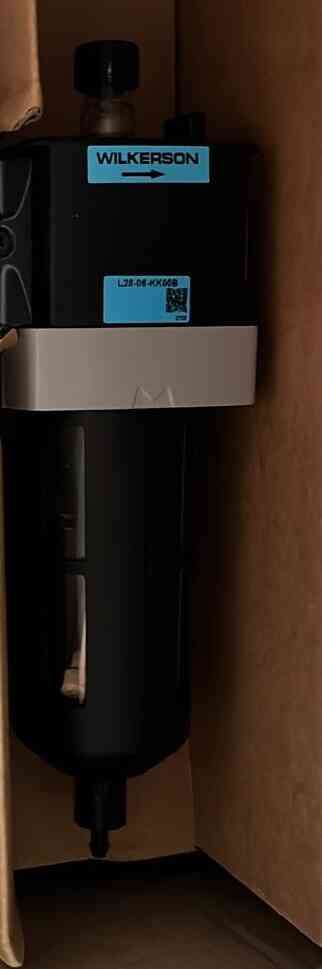

WILKERSON L28-03-KK00B 3/8 NPT Air Line Lubricator, 110 Cfm Max. Flow, 150 Psi Max. Pressure
Item: CH6PYN
Model: L28-03-KK00B
29 In Stock
Ships within 2 days via
5.00% off
£136.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Adjustment Mechanism | Knob |
|---|---|
| Adjustment Type | Locking Knob, Nonrising |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Material | Plastic |
| Bowl Size | 6 oz. |
| Connection Style | Air Line |
| Drain Included | Yes |
| Drain Part Compatbility | LRP-96-702 |
| Drain Type | Manual |
| For Fluid Type | Compressed Air |
| For Maximum Pipe Run | 20 ft. |
| For Substance Type | Air |
| Includes | Bowl And Guard, Drain, Over-Port |
| Inlet Size | 3/8 |
| Inlet Type | NPT |
| Lubricator Bowl Capacity | 6 oz. |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Bowl Guard Material | ABS |
| Lubricator Bowl Material | Plastic |
| Lubricator Type | Micro Mist |
|---|---|
| Material | Polycarbonate |
| Max. Flow Rate | 110 CFM |
| Max. Pressure | 150 psi |
| Max. Temp. | 125°F |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | 14°F |
| Modular Connection | Modular Connection |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 6 oz. |
| Overall Depth | 2 7/8" |
| Overall Height | 9 3/16" |
| Overall Width | 2 7/8" |
| Pipe Length | 20 ft. |
| Pressure Drop | 4.9 psi |
| Recommended Lubricant | Airline Oil F442001 |
| Seal Material | Nitrile Rubber |
| Series | L28 Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| System Location | Air Line |
Product Details
Air Line Lubricator
Shipping Information
| height | 23.34 |
|---|---|
| length | 7.3 |
| width | 7.3 |
| country of origin | US |
|---|---|
| weight | 0.607500 |
Related Products
| Style | Model | Bowl Material | Air Inlet Size | Max. Flow Rate | Air Outlet Size | Lubricator Bowl Guard Included | Lubricator Bowl Material | Inlet Size | Lubricator Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | L28-03-KL00B | Metal | 3/8" | 110 CFM | 3/8" | No | Metal | 3/8 | Micro Mist | 134.56 | |
| B | L28-04-KK00B | Plastic | 1/2" | 110 CFM | 1/2" | Yes | Plastic | 1/2 | Micro Mist | 121.41 | |
| C | L28-04-KL00B | Metal | 1/2" | 110 CFM | 1/2" | No | Metal | 1/2 | Micro Mist | 139.14 | |
| B | L28-06-KK00B | Plastic | 3/4" | 150 CFM | 3/4" | Yes | Plastic | 3/4 | Micro Mist | 121.41 | |
| D | L28-06-KL00B | Metal | 3/4" | 150 CFM | 3/4" | No | Metal | 3/4 | Micro Mist | 133.76 |
