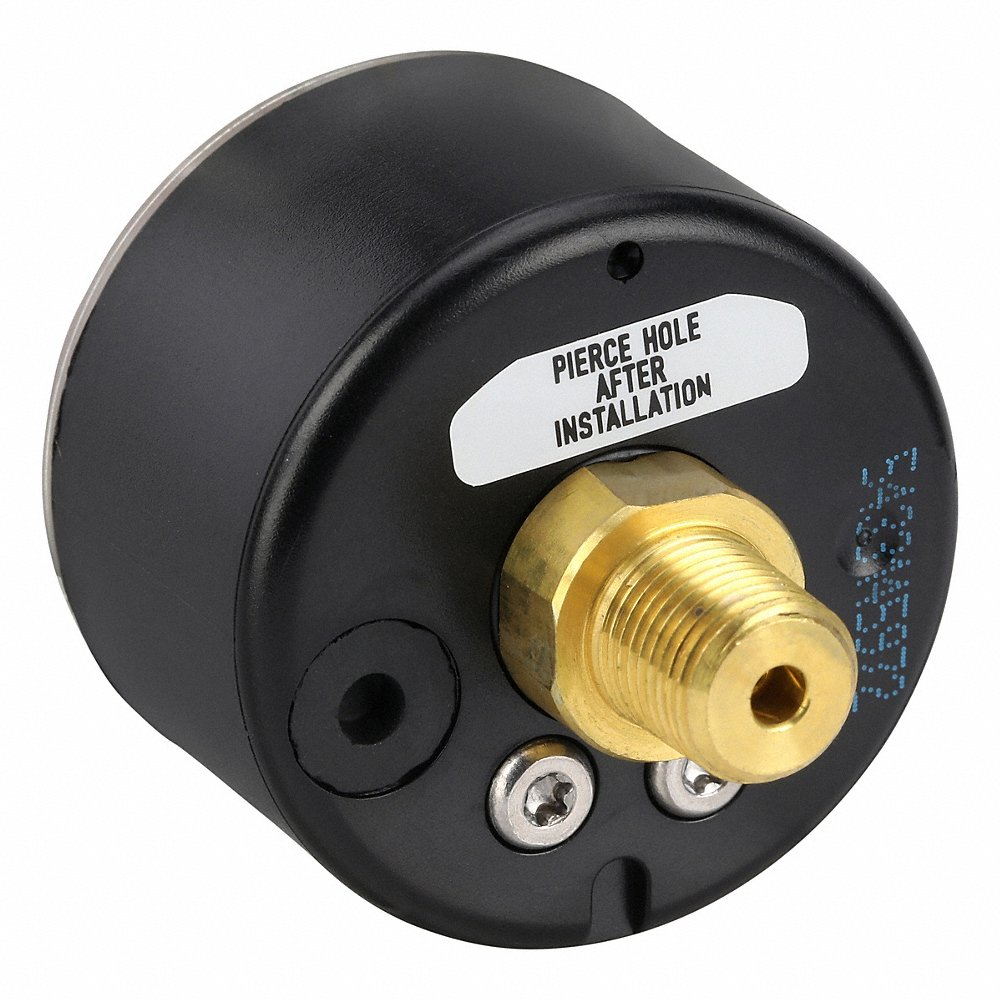

WIKA 113.13.15.3030.B Commercial Compound Gauge, Liquid-Filled, 30 To 0 To 30 Inch Hg/PSI, 1 1/2 Inch Dial
Item: CV3QDD
Model: 113.13.15.3030.B
22 In Stock
Ships within 2 days via
5.00% off
£42.4/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | ±3-2-3% |
|---|---|
| Accuracy Grade | ASME B40.100 Grade B |
| Accuracy Scale | Mid Scale |
| Ambient Operating Temperature Range | -4°F to +140°F |
| Application | Compressors, Hydraulics, Marine, Pumps |
| Blowout Safety Back | No |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth | 26.5 mm |
| Case Diameter | 41 mm |
| Case Material | Plastic |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Liquids And Gases |
| Dial Color | White |
| Dial Face Material | ABS |
| Dry Dampening Feature | Not Available |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade B Commercial |
| Gauge Application | General Purpose Case |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | ABS |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid-filled Case | Yes |
| Manufacturer Warranty Length | 1 yr. |
|---|---|
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | ABS |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 30 in. hg to 0 in. hg to 30 in. hg |
| Pressure Range (secondary) | 30 in. hg to 0 in. hg to 30 in. hg |
| Pressure Range Type | Compound |
| Primary Graduations | 10/1, 10/2 |
| Primary Pressure Range | 30 psi to 0 psi to 30 psi |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Numeric Increments | 10.0 |
| Primary Scale Units | In. Hg/psi |
| Process Connection | 1/8" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Series | 113.13 Series |
| Socket Material | Brass |
| Standards | En 837-1 |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | Brass, Bronze |
Product Details
Compound Gauge
Shipping Information
| weight | 0.085500 |
|---|
Related Products
| Style | Model | Pressure Range Type | Process Connection Location | Nominal Dial Size | Includes Vent Plug | Primary Scale Numeric Increments | Scale Type | Case Depth | Accuracy Grade | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 113.13.25.3030.L | Compound | Lower Back | 2" | Yes | 1 | Dual | 27 mm | ASME B40.100 Grade B | 37.66 | |
| B | 113.13.20.3030.B | Compound | Center Back | 2" | No | 10.0 | Single | 29 mm | ASME B40.100 Grade B | 39.66 | |
| A | 113.13.20.3030.L | - | - | - | No | 10.0 | - | - | - | 61.71 | |
| B | 113.13.15.1000.B | Pressure | Center Back | 1 1/2" | Yes | 200.0 | Dual | 26.5 mm | ASME B40.100 Grade B | 37.20 | |
| B | 113.13.15.1000.B | Pressure | Center Back | 1 1/2" | No | 200.0 | Single | 26.5 mm | ASME B40.100 Grade B | 37.20 | |
| A | 113.13.25.1000.L | Pressure | Bottom | 2 1/2" | Yes | 10 | Dual | 27 mm | ASME B40.100 Grade B | 37.66 | |
| C | 113.13.25.1000.B | Pressure | Center Back | 2 1/2" | No | 200.0 | Single | 29 mm | ASME B40.100 Grade B | 40.80 |
