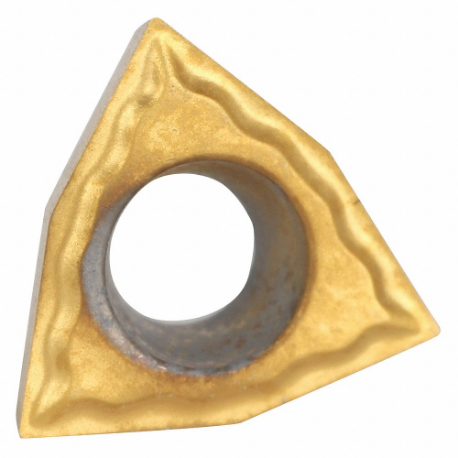

WIDIA WPHT1510 CG5 Insert, 3/16 Inch Inscribed Circle, Neutral, 1/16 Inch Thick, 11 Deg. Clearance Angle, TiN

Item: CV2QAP
Model: WPHT1510 CG5
18 In Stock

Ships within 2 days via

£19.52
5.00% off
£18.54/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code WPHT1510
Chip-breaker Yes
Chip-breaker Code Yes
Chip-breaker Style On One Side , Yes
Clearance Angle 11°
Coating Process PVD
Corner Radius 0.004"
Cutting Application Outside And Inside Diameter Turning
Cutting Direction Neutral
Cutting Edge Length 3.26 mm
Finish - Machining Tin
Included Angle 80°
Inscribed Circle 3/16"
Insert Code WPHT1.51.2
Insert Holding Angle 40° to 60.0°
Insert Holding Type 40° To 60° Countersink Hole
Insert Material Carbide
Insert Style WPHT
Iso Number WPHTS30101
Manufacturer Grade CG5
Material Carbide
Material - Machining Carbide
Number Of Cutting Edges 3
Primary Material Application Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application Iso Code M, N, P, S
Rake Positive
Secondary Material Application Cast Iron
Secondary Material Application Iso Code K
Shape Trigon
System Of Measurement Fractional Inch
Thickness 1/16"
Through Hole Inside Dia. 0.085"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin US
Weight 0.000900
