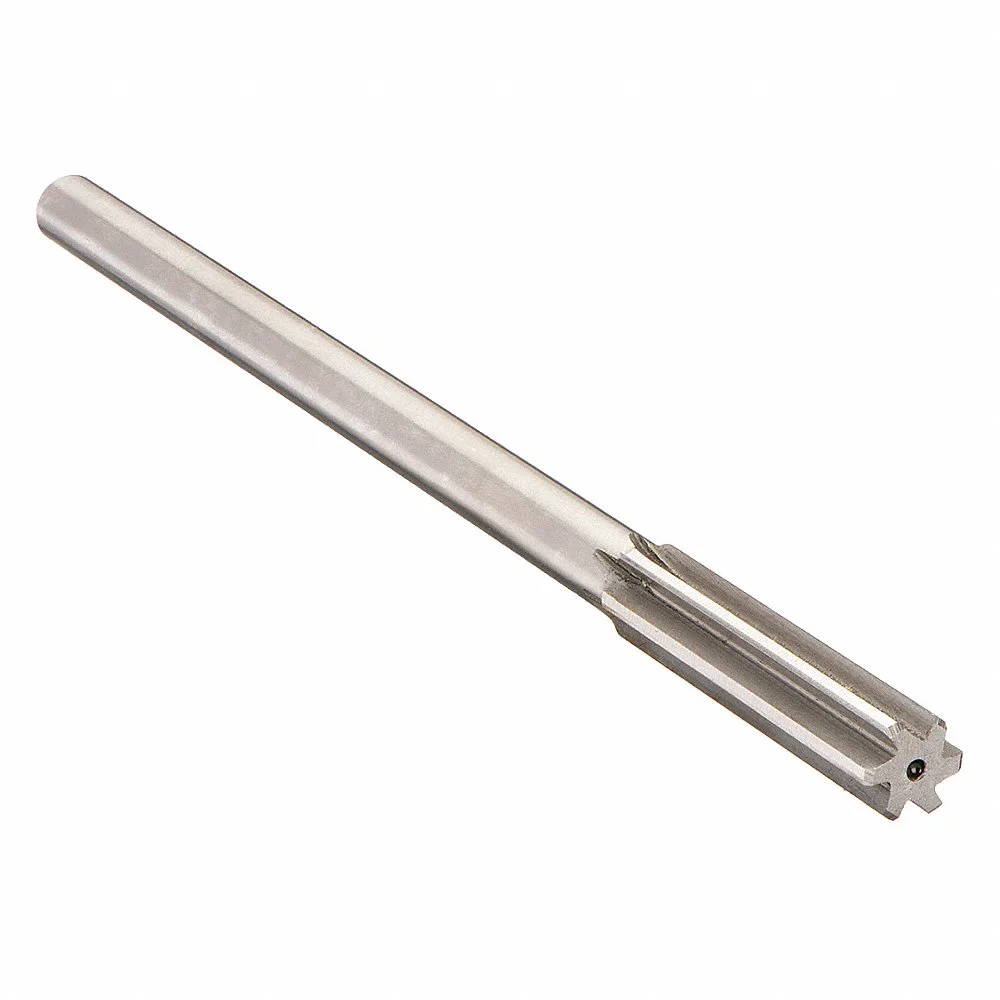

WESTWARD 13H731 Chucking Reamer, 0.3740 Inch Reamer, 23/64 Inch Shank Dia, 1 3/4 Inch Flute Length, 7 Inch Overall Length, 9.50 mm
Item: AA4XQT
Model: 13H731
21 In Stock
Ships within 2 days via
5.00% off
£18.67/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Chamfer Angle | 45° |
|---|---|
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.374" |
| Dimension Type | Metric |
| Finish | Bright |
| Flute Length | 1 3/4" |
| Flute Type | Straight |
| Left/right Hand | Right |
| Material | High Speed Steel |
| Measurement System | Metric |
| Metric Size | 9.5 mm |
| Number Of Flutes | 6 |
| Overall Length | 7" |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
|---|---|
| Reamer Application | Through Hole |
| Reamer Diameter | 9.5 mm |
| Reamer Size | 9.5 mm |
| Reamer Size (nominal) | 9.5 mm |
| Reamer Size - Decimal Equivalent | 0.374 |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank | Round Shank |
| Shank Diameter | 23/64" |
| Shank Shape | Round |
| Shank Size | 0.374" |
| Shank Type | Straight |
| Spiral Direction | Neutral |
Product Details
Shipping Information
| Height | 1.78 |
|---|---|
| Length | 17.53 |
| Width | 2.29 |
| HS Code | 8207600035 |
|---|---|
| Country Of Origin | IN |
| Weight | 0.045000 |
