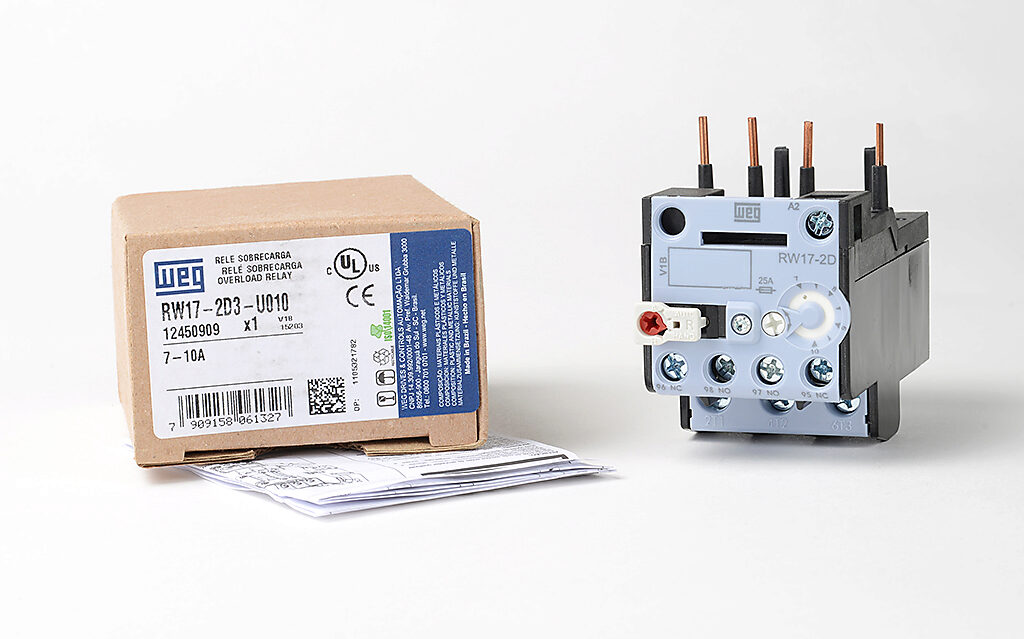

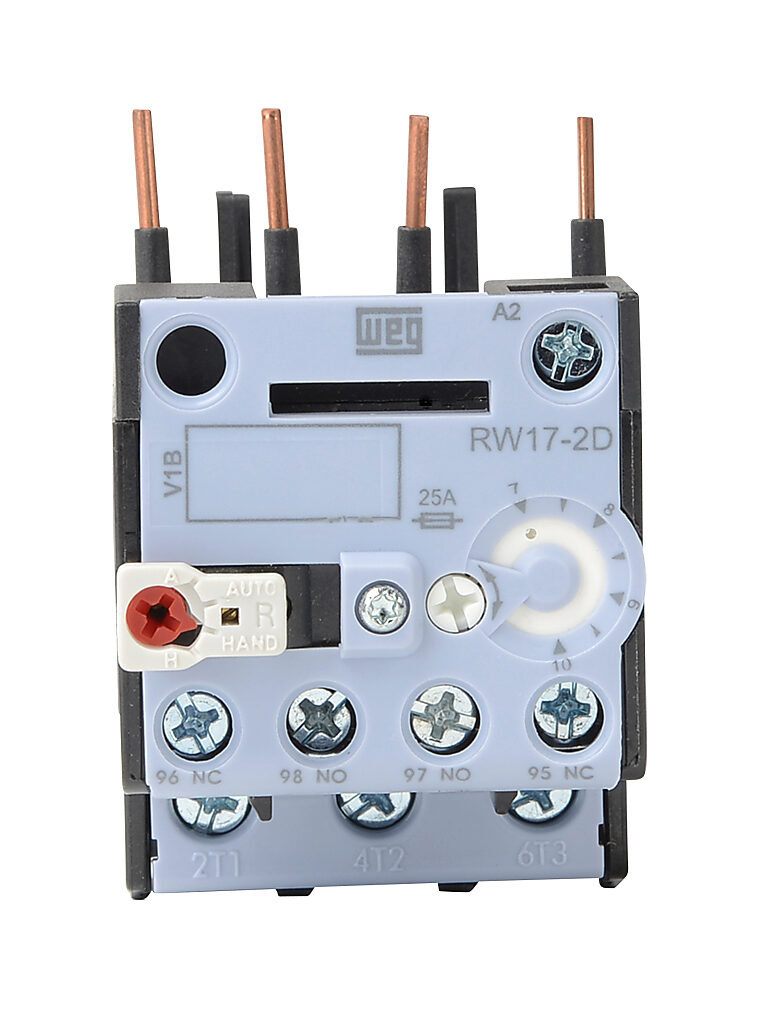

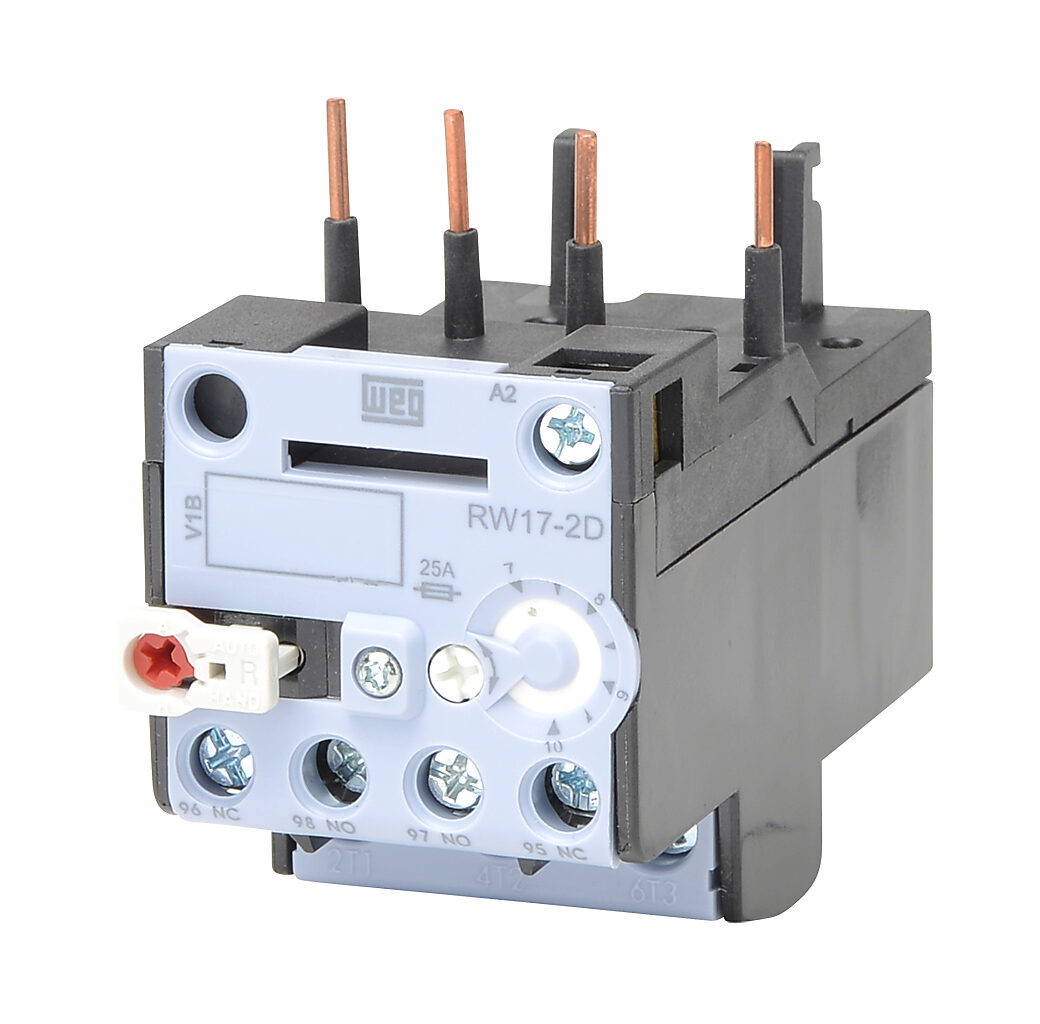

WEG RW17-2D3-U010 12450909 Thermal Overload Relay, 7.0-10.0A Adjustable, Bi-Metallic, Local Reset
Item: BB9AMV
Model: RW17-2D3-U010
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Auxiliary Contacts | NO/NC |
|---|---|
| Connection Type | Direct Mount Power |
| Contactor Model | CWC025 |
| Current Range | 7-10A |
| Depth | 3.23" |
| For Use With | CWC025 Series Miniature Contactors |
| Full Load Amperage Range | 7-10A |
| Fuse Type | gL/gG |
| Height | 2.83" |
| Max. Fuse (type 2 Coordination) | 25 |
| Max. Operating Frequency | 15 Hz |
| Mounting Configuration | 2D |
| Mounting Type | Direct |
| Number Of Poles | 3 |
| Operation Type | Bi-Metallic |
| Part/accessory Type | Contactor |
| Phase Loss Sensitive | Yes |
| Rated Impulse Withstand Voltage Uimp | 6 kV |
|---|---|
| Rated Insulation Voltage | 690V |
| Rated Operational Frequency | 25-400 Hz |
| Relay Type | Thermal Overload |
| Reset | Local |
| Series | RW17-2D Series |
| Short Circuit Protection With Fuses (gl/gg) | 6A |
| Suitable For Use With Dc Loads | Yes |
| Trip Class | Class 10 |
| Width | 1.77" |
| Degree Of Protection - Auxiliary Terminals | IP20 |
| Degree Of Protection - Main Terminals | IP10 |
| No. Of Poles | 3 |
| Rated Insulation Voltage Ui | 690V |
| Rated Insulation Voltage Ui (acc. To Ul) | 600V |
| Reference | RW17 |
| Short Circuit Protection With Fuses | 6gL/gG |
Product Details
Relay
Shipping Information
| height | 3.28 |
|---|---|
| length | 5.08 |
| width | 4.83 |
| country of origin | BR |
|---|---|
| weight | 0.180000 |
