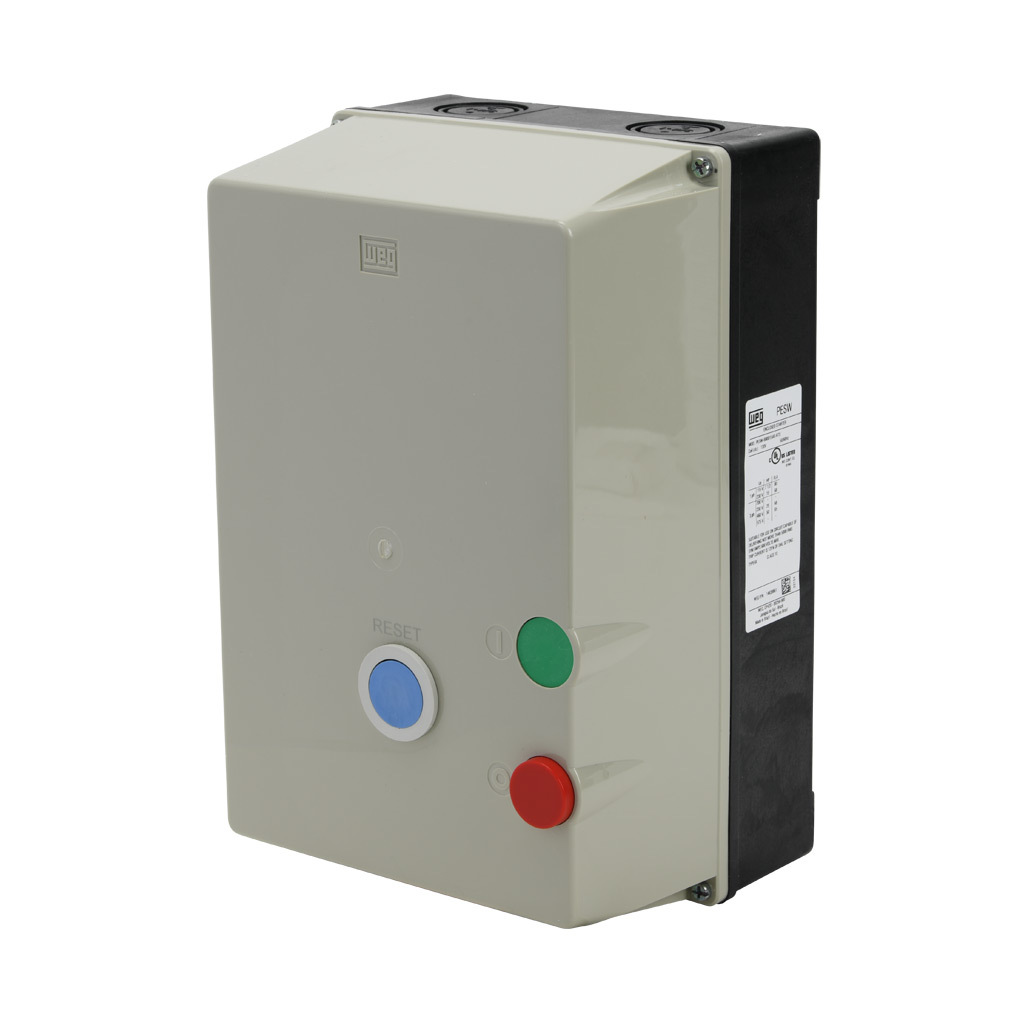

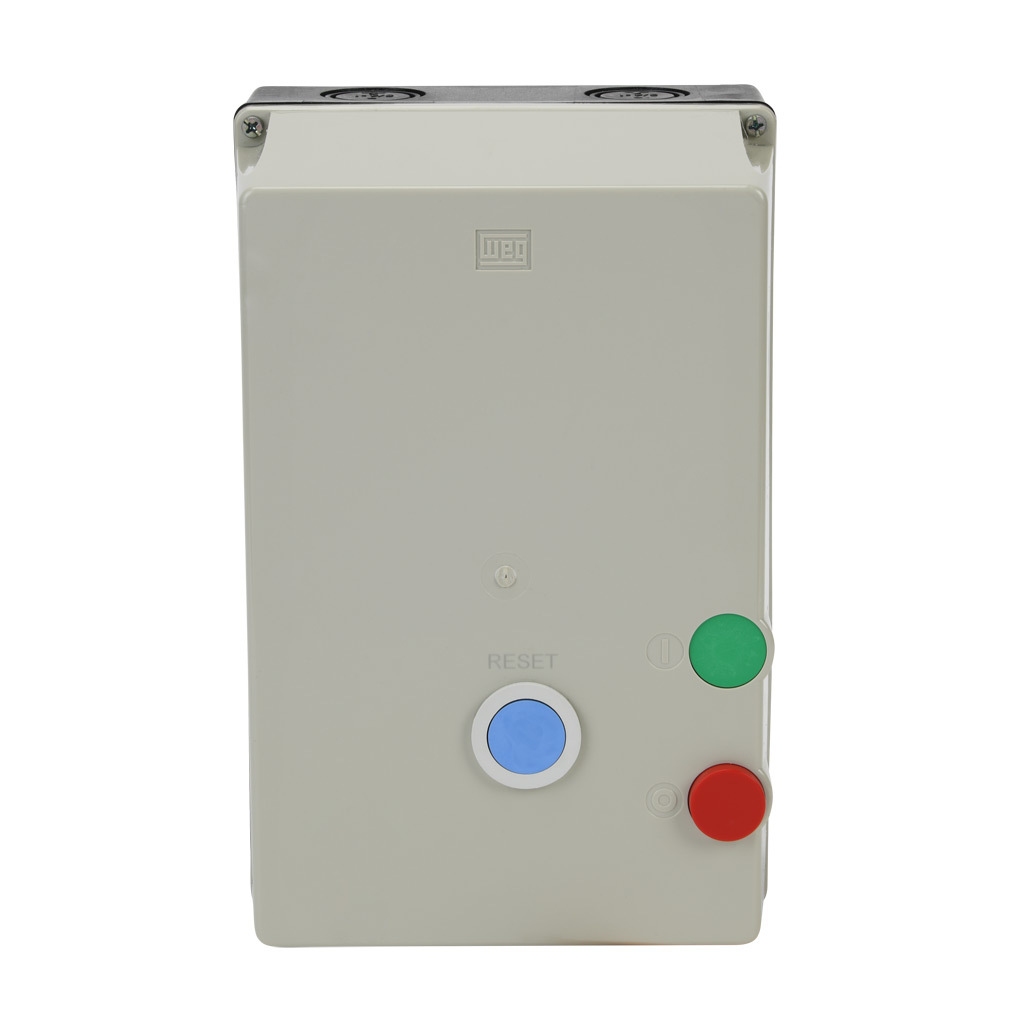

WEG PESW-B80D15AX-R75 14639861 Enclosed Starter, 3 Phase, 80A Rated, 63-80 A Range, On/Off Control, Plastic Crate, 120V50/60HZ
Item: CV6UDA
Model: PESW-B80D15AX-R75
In Stock
Get it by Wednesday, Apr 15
£734.4/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly Method (start Key) | Plastic Crate |
|---|---|
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 120V AC |
| Connection Type | Screw Terminal |
| Control Voltage | 120V |
| Enclosure Type | NEMA 4/4X |
| Frequency | 60/50 Hz |
| Full Load Amperage Range | 63-80A |
| Horsepower Rating | 50 hp |
| Includes | Start, Stop And Reset Pushbuttons |
| Mounting | Wall |
| Number Of Poles | 3 |
| Overload Relay | 63-80A |
| Overload Type | Bi-Metallic |
| Phase Loss Sensitive | Yes |
| Power Poles | NO |
| Rated Current | 80A |
| Rated Operational Voltage | 600V |
|---|---|
| Sccr Rating | 5 kA |
| Series | PESW Series |
| Start Type | Direct Three Phase |
| Starter Type | Non Combination |
| Trip Class | Class 10 |
| Voltage Rating | 600V AC |
| Button Color | Not Specified |
| Button Type | Unspecified |
| Control Devices | A On Off Button |
| Degree Of Protection | NEMA 4X |
| Maximum Power Rating | Not Applicable |
| Measuring Tool And Accessories | Not Applicable |
| no. of phases | 3 |
| over load | 63-80A |
| rated amps (ac-3) | 80A (CWB80) |
| Reference | PESW |
| Starters Complements | Does Not Contain |
Product Details
Motor Starter
Shipping Information
| country of origin | BR |
|---|
| weight | 2.376000 |
|---|
