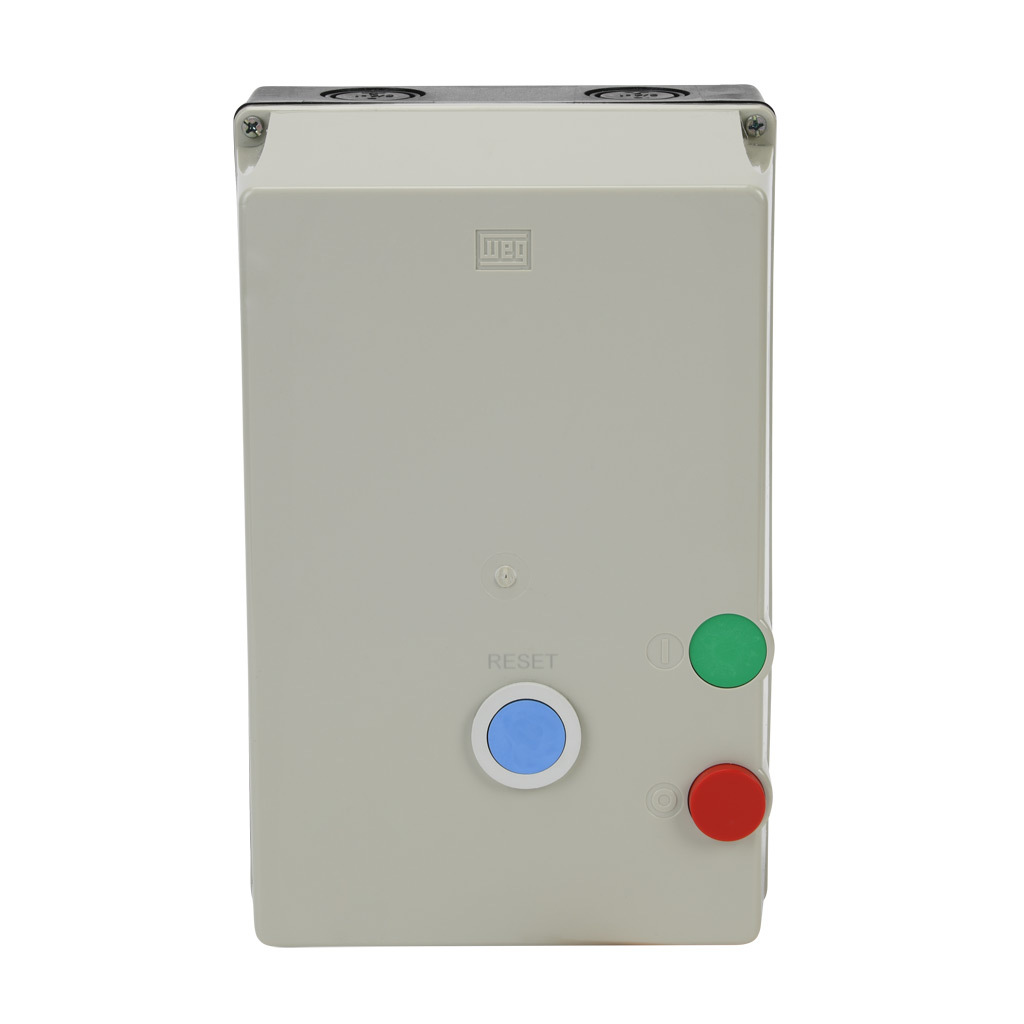

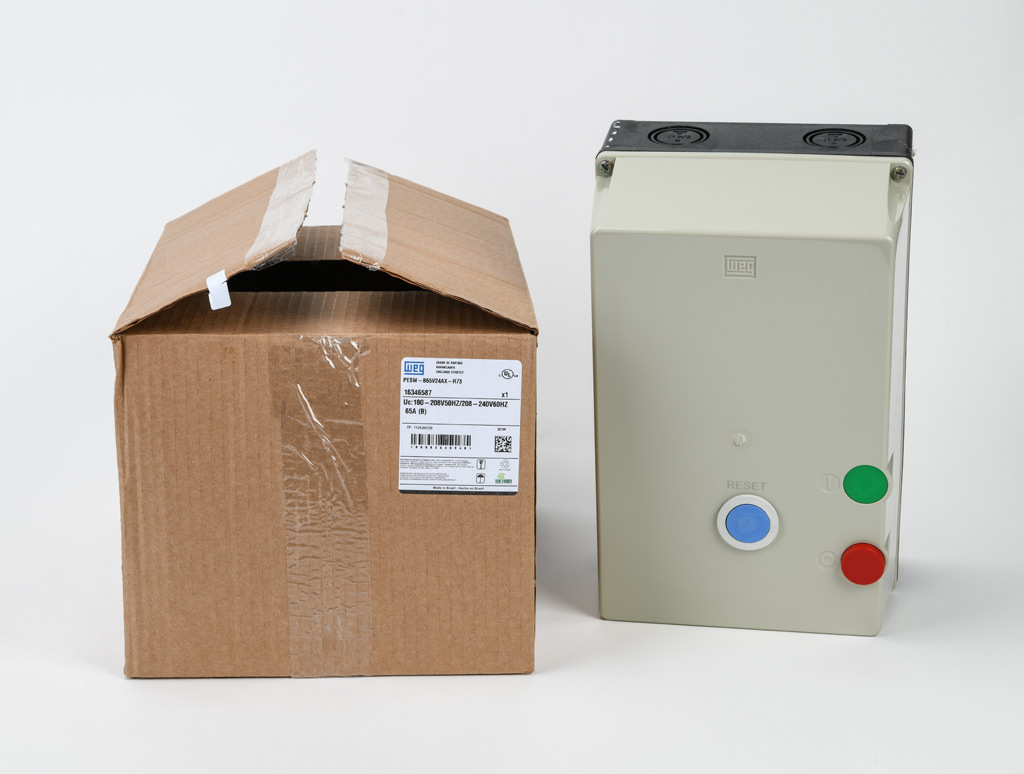

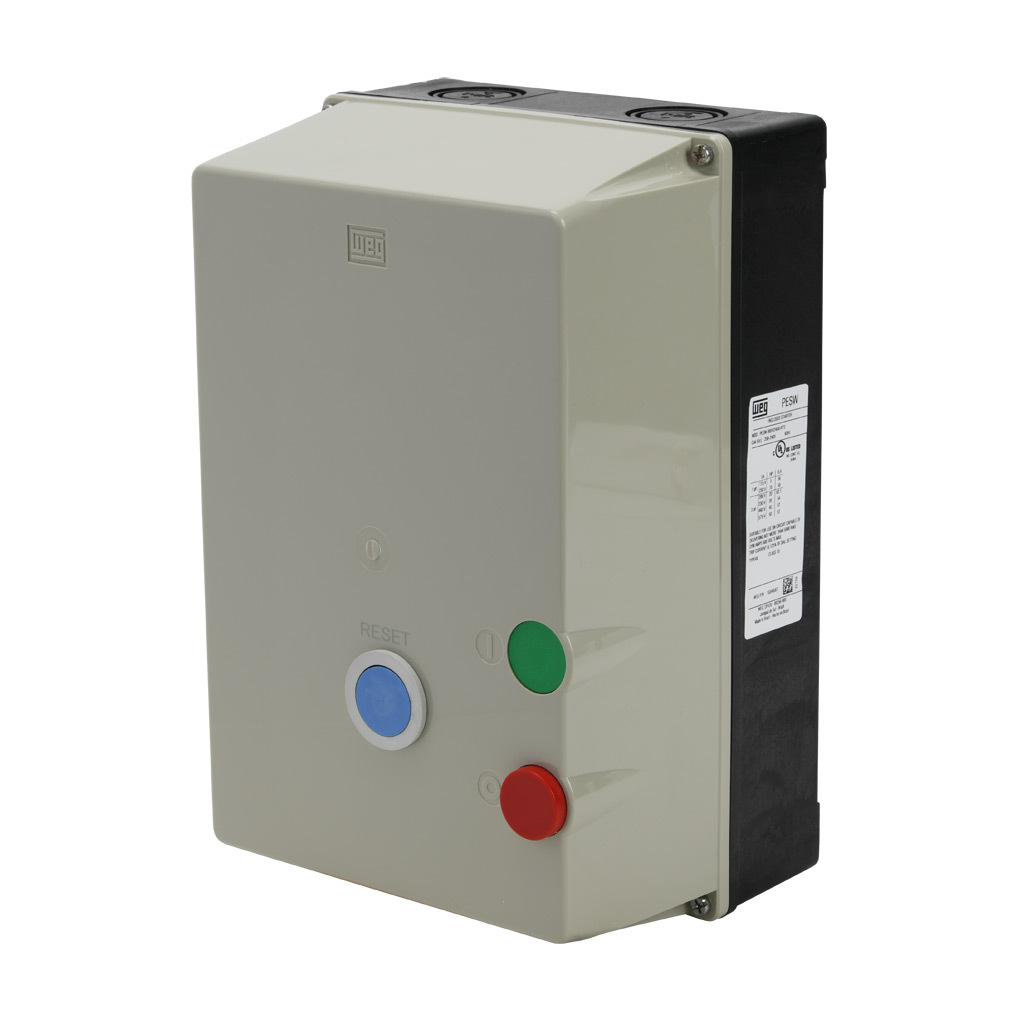

WEG PESW-B65V24AX-R73 16346587 Enclosed Starter, 3 Phase, 65A Rated, 50-63 A Range, On/Off Control, Plastic Crate, 180-208V50HZ/208-240V60HZ

Item: CV6UCY
Model: PESW-B65V24AX-R73
22 In Stock

Ships within 2 days via

£618.02/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Assembly Method (start Key) Plastic Crate
Auxiliary Contacts NO/NC
Coil Frequency 50/60 Hz
Coil Voltage 180-208/208-240V AC
Connection Type Screw Terminal
Control Voltage 180-208/208-240V
Enclosure Type NEMA 4/4X
Frequency 60/50 Hz
Full Load Amperage Range 50-63A
Horsepower Rating 40 hp
Includes Start, Stop And Reset Pushbuttons
Mounting Wall
Number Of Poles 3
Overload Relay 50-63A
Overload Type Bi-Metallic
Phase Loss Sensitive Yes
Power Poles NO
Product Datasheet weg-esw-b12d15a-r30.pdf
Rated Current 65A
Rated Operational Voltage 600V
Sccr Rating 5 kA
Series PESW Series
Start Type Direct Three Phase
Starter Type Non Combination
Trip Class Class 10
Voltage Rating 600V AC
Button Color Not Specified
Button Type Unspecified
Control Devices A On Off Button
Degree Of Protection NEMA 4X
Maximum Power Rating Not Applicable
Measuring Tool And Accessories Not Applicable
no. of phases 3
over load 50-63A
rated amps (ac-3) 65A (CWB65)
Reference PESW
Starters Complements Does Not Contain

Product Details

Shipping Information

Country Of Origin BR
Weight 2.358000
