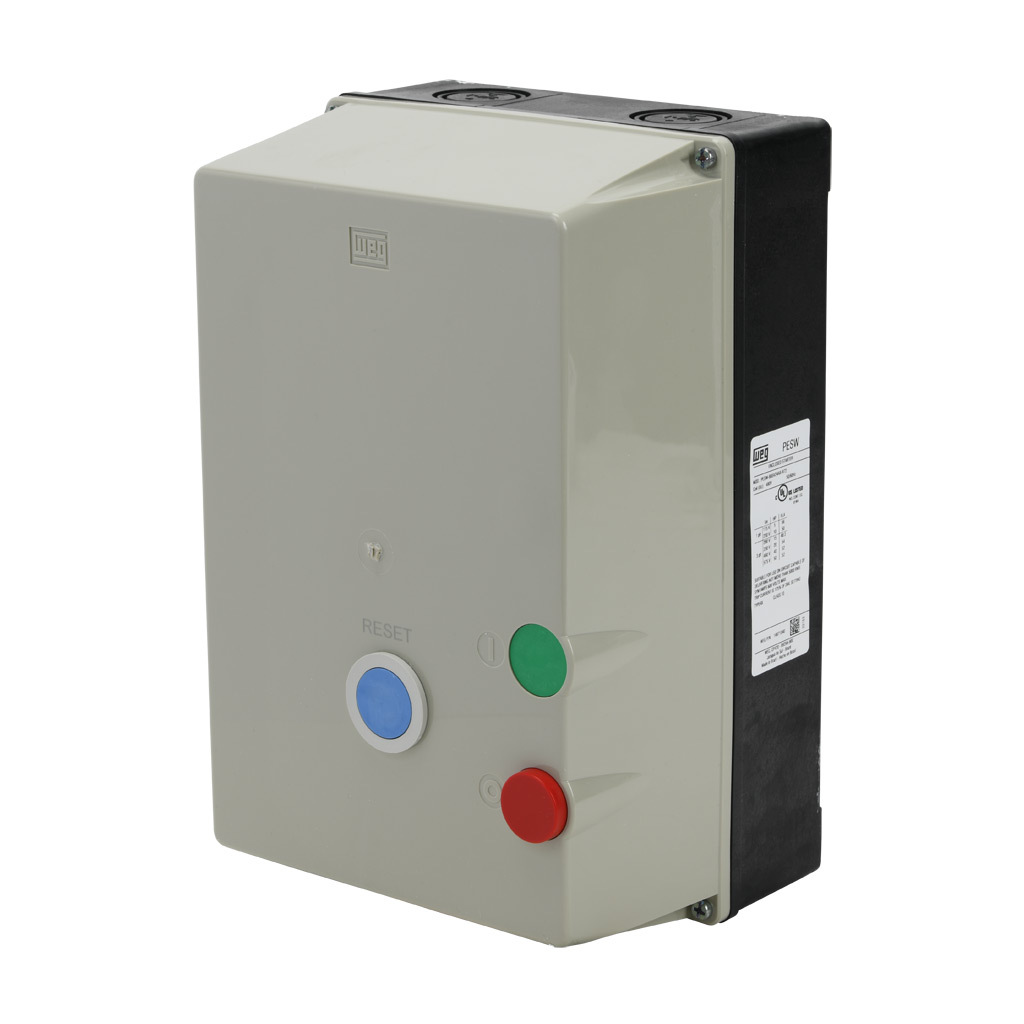

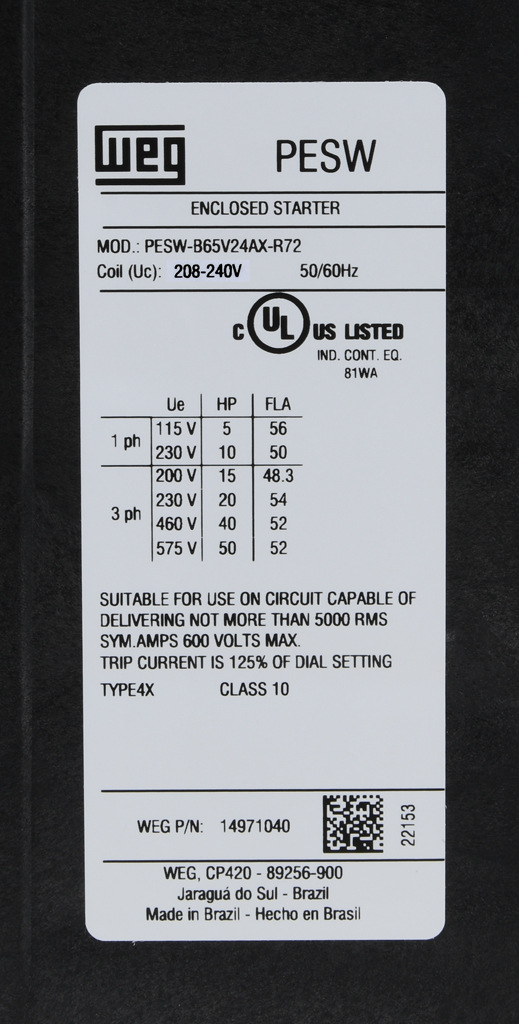

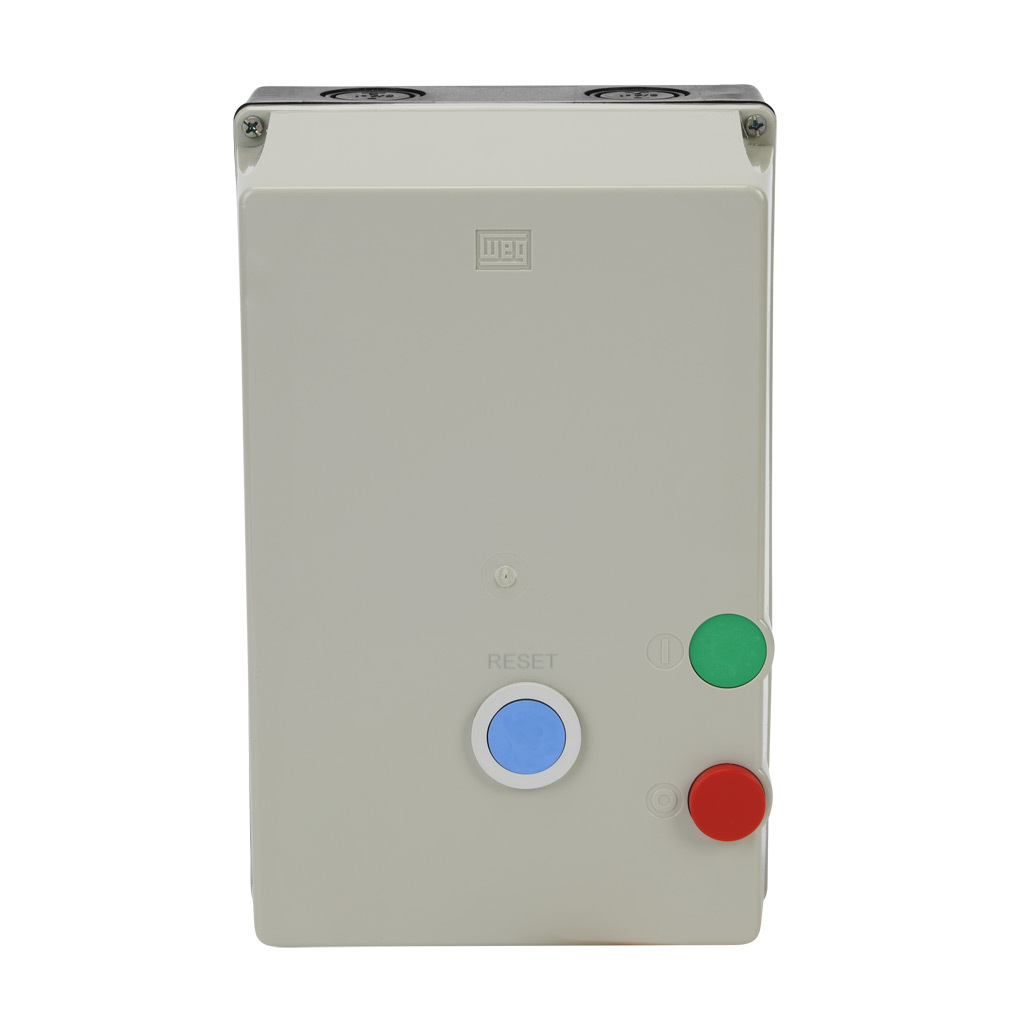

WEG PESW-B65V24AX-R72 14971040 Enclosed Starter, 3 Phase, 65A Rated, 40-57 A Range, On/Off Control, Plastic Crate, 180-208V50HZ/208-240V60HZ

Item: CV6UCX
Model: PESW-B65V24AX-R72
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Assembly Method (start Key) Plastic Crate
Auxiliary Contacts NO/NC
Coil Frequency 50/60 Hz
Coil Voltage 180-208/208-240V AC
Connection Type Screw Terminal
Control Voltage 180-208/208-240V
Enclosure Type NEMA 4/4X
Frequency 60/50 Hz
Full Load Amperage Range 40-57A
Horsepower Rating 40 hp
Includes Start, Stop And Reset Pushbuttons
Mounting Wall
Number Of Poles 3
Overload Relay 40-57A
Overload Type Bi-Metallic
Phase Loss Sensitive Yes
Power Poles NO
Rated Current 65A
Rated Operational Voltage 600V
Sccr Rating 5 kA
Series PESW Series
Start Type Direct Three Phase
Starter Type Non Combination
Trip Class Class 10
Voltage Rating 600V AC
Button Color Not Specified
Button Type Unspecified
Control Devices A On Off Button
Degree Of Protection NEMA 4X
Maximum Power Rating Not Applicable
Measuring Tool And Accessories Not Applicable
no. of phases 3
over load 40-57A
rated amps (ac-3) 65A (CWB65)
Reference PESW
Starters Complements Does Not Contain

Product Details

Motor Starter

Shipping Information

country of origin BR
weight 2.353500
