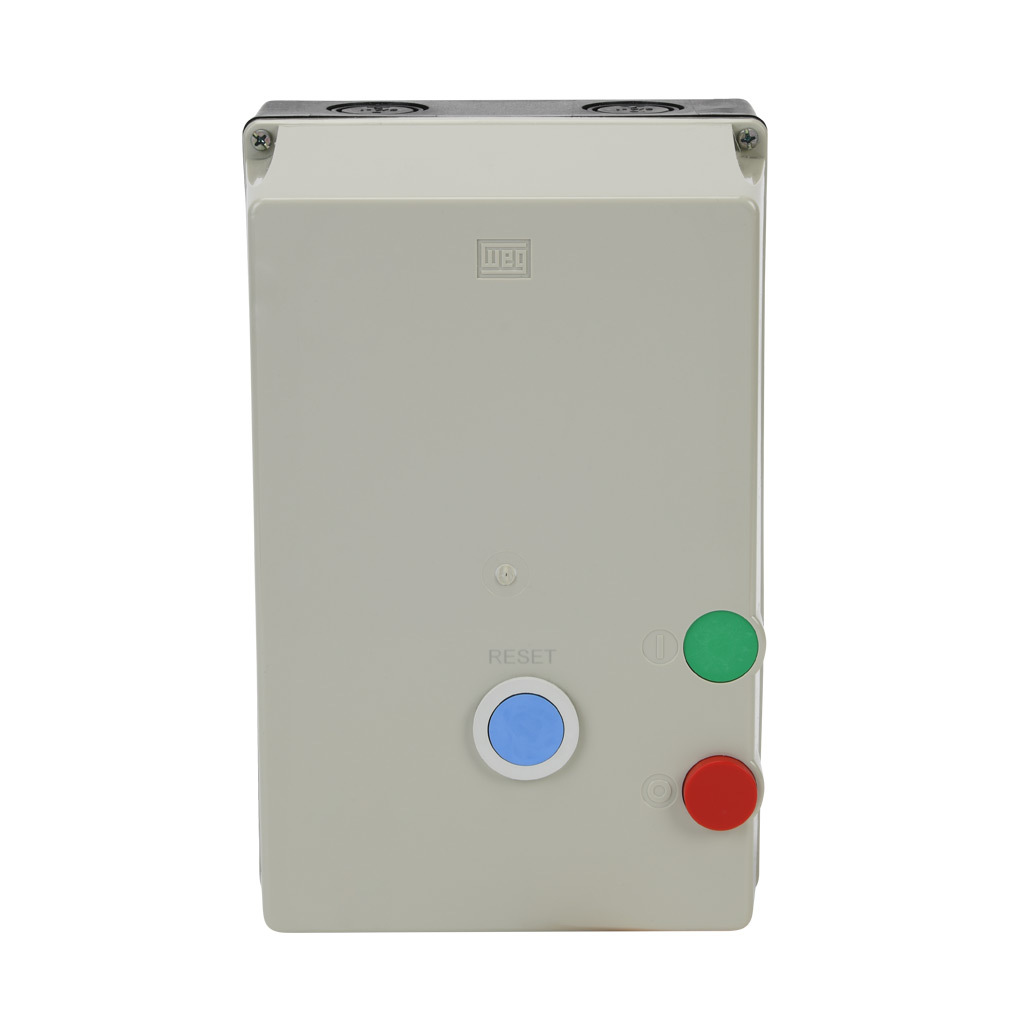

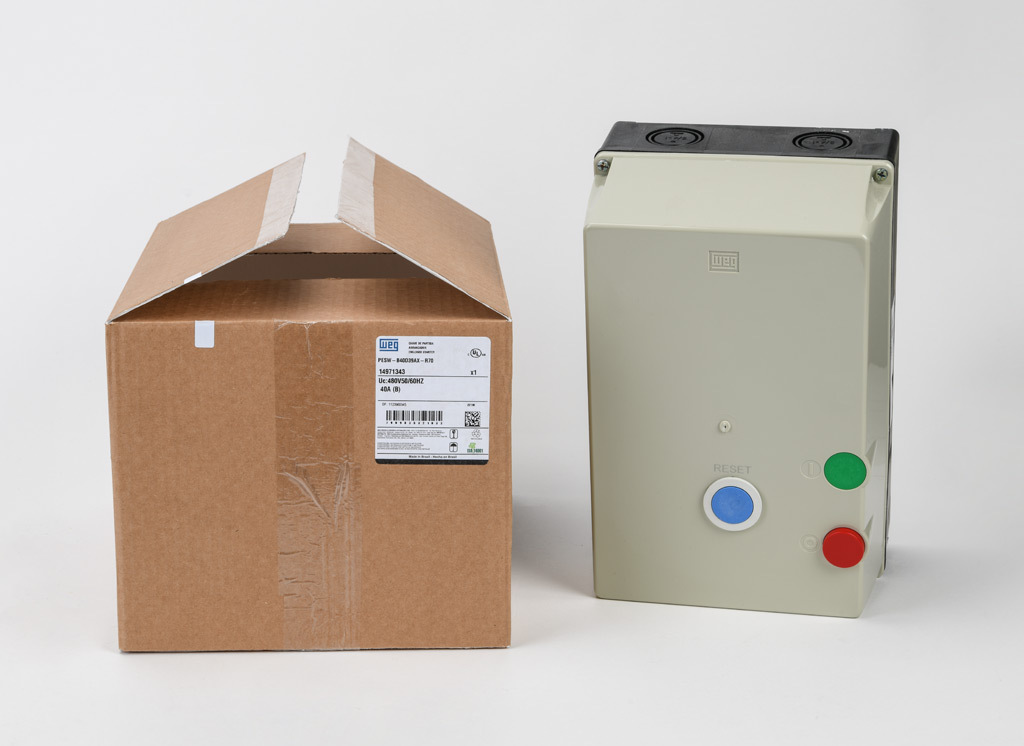

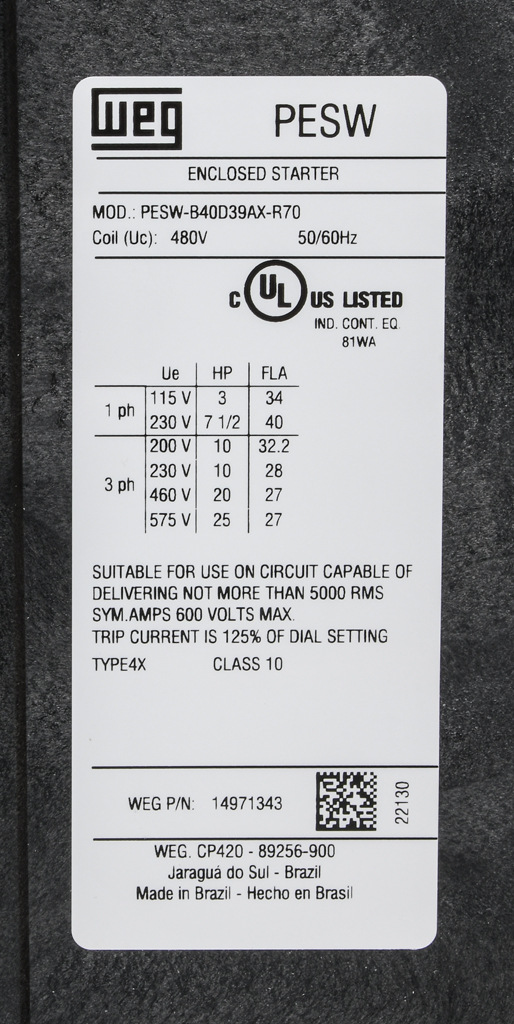

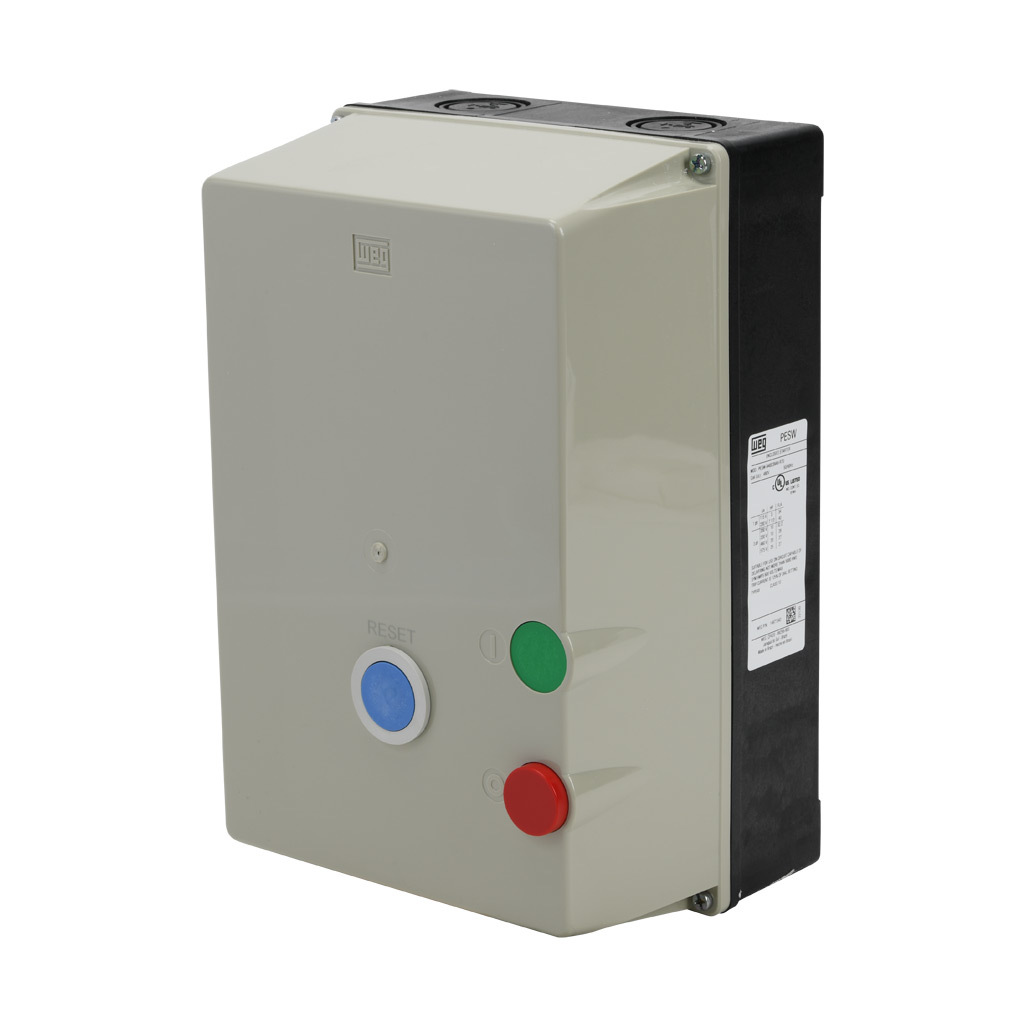

WEG PESW-B40D39AX-R70 14971343 Enclosed Starter, 3 Phase, 40A Rated, 25-40 A Range, On/Off Control, Plastic Crate, 480V50/60HZ

Item: CV6UCM
Model: PESW-B40D39AX-R70
14 In Stock

Ships within 2 days via

£542.11/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Assembly Method (start Key) Plastic Crate
Auxiliary Contacts NO/NC
Coil Frequency 50/60 Hz
Coil Voltage 480V AC
Connection Type Screw Terminal
Control Voltage 480V
Enclosure Type NEMA 4/4X
Frequency 60/50 Hz
Full Load Amperage Range 25-40A
Horsepower Rating 20 hp
Includes Start, Stop And Reset Pushbuttons
Mounting Wall
Number Of Poles 3
Overload Relay 25-40A
Overload Type Bi-Metallic
Phase Loss Sensitive Yes
Power Poles NO
Product Datasheet weg-esw-b12d15a-r30.pdf
Rated Current 40A
Rated Operational Voltage 600V
Sccr Rating 5 kA
Series PESW Series
Start Type Direct Three Phase
Starter Type Non Combination
Trip Class Class 10
Voltage Rating 600V AC
Button Color Not Specified
Button Type Unspecified
Control Devices A On Off Button
Degree Of Protection NEMA 4X
Maximum Power Rating Not Applicable
Measuring Tool And Accessories Not Applicable
no. of phases 3
over load 25-40A
rated amps (ac-3) 40A (CWB40)
Reference PESW
Starters Complements Does Not Contain

Product Details

Shipping Information

Country Of Origin BR
Weight 2.362500
