WEG

See our 858 reviews on trustpilot

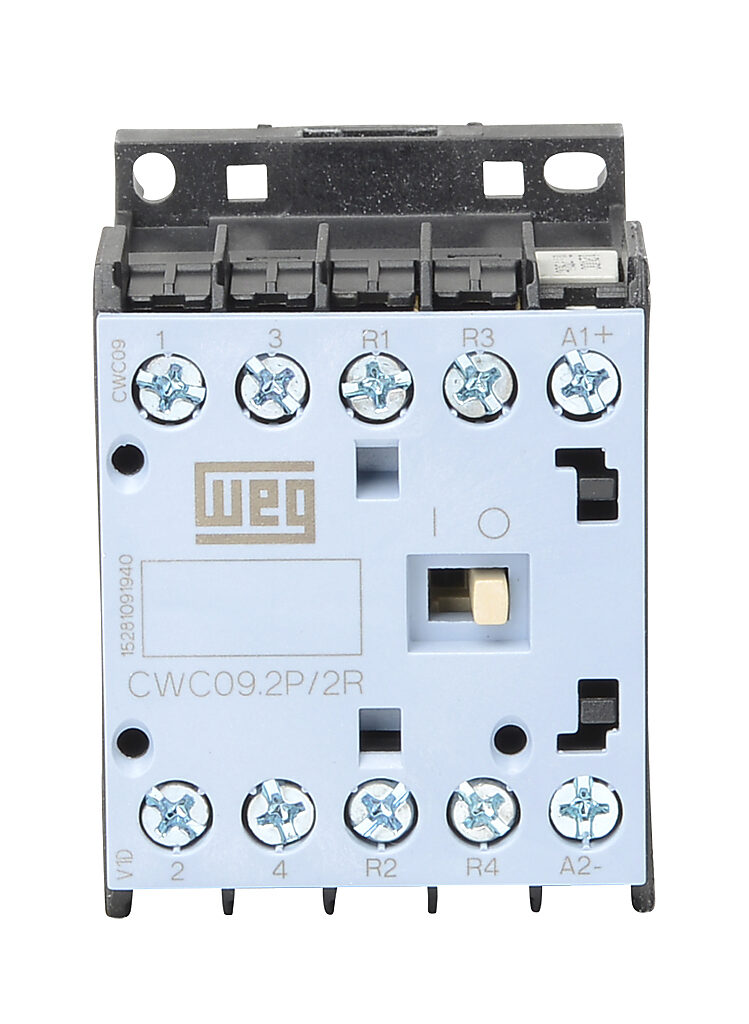

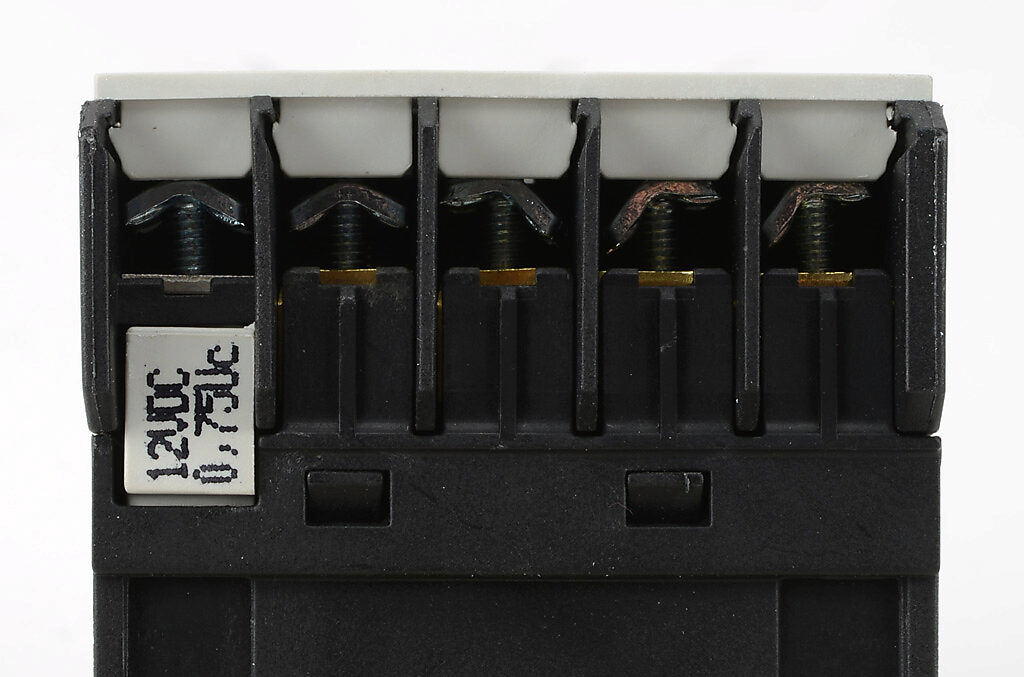

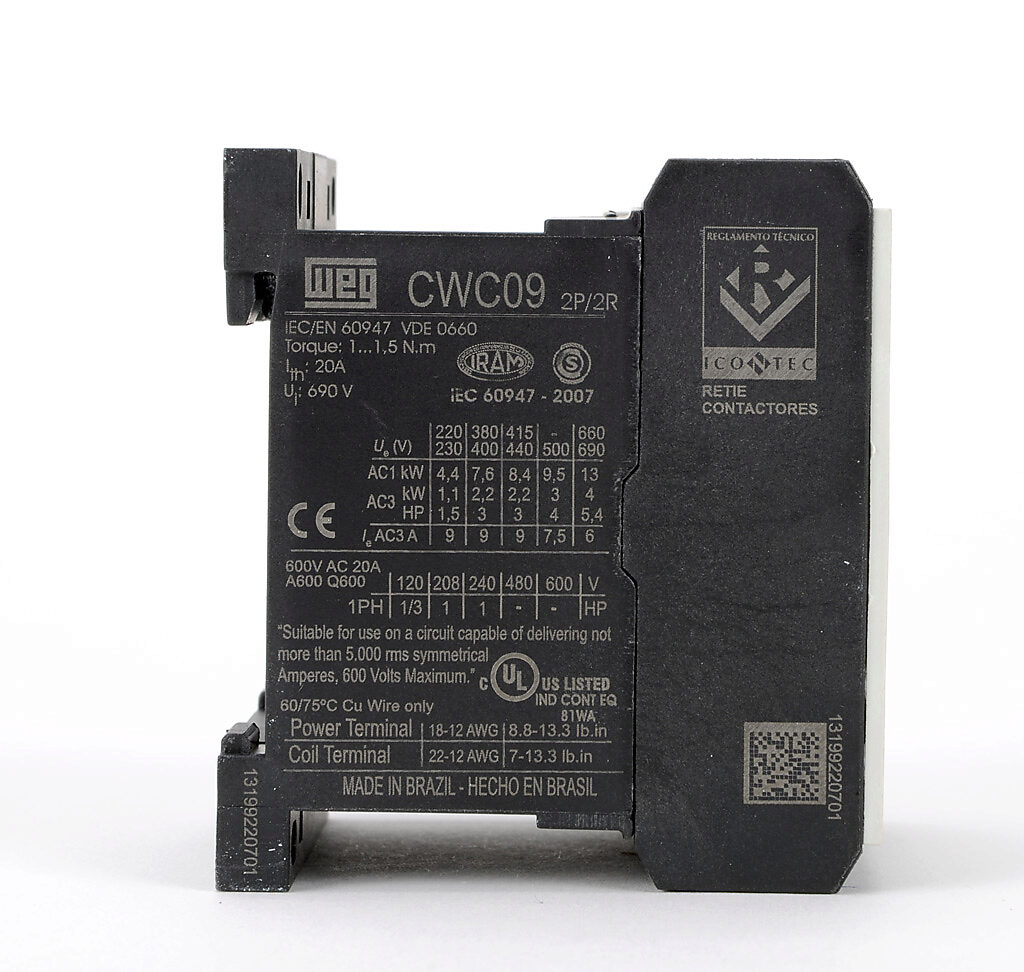

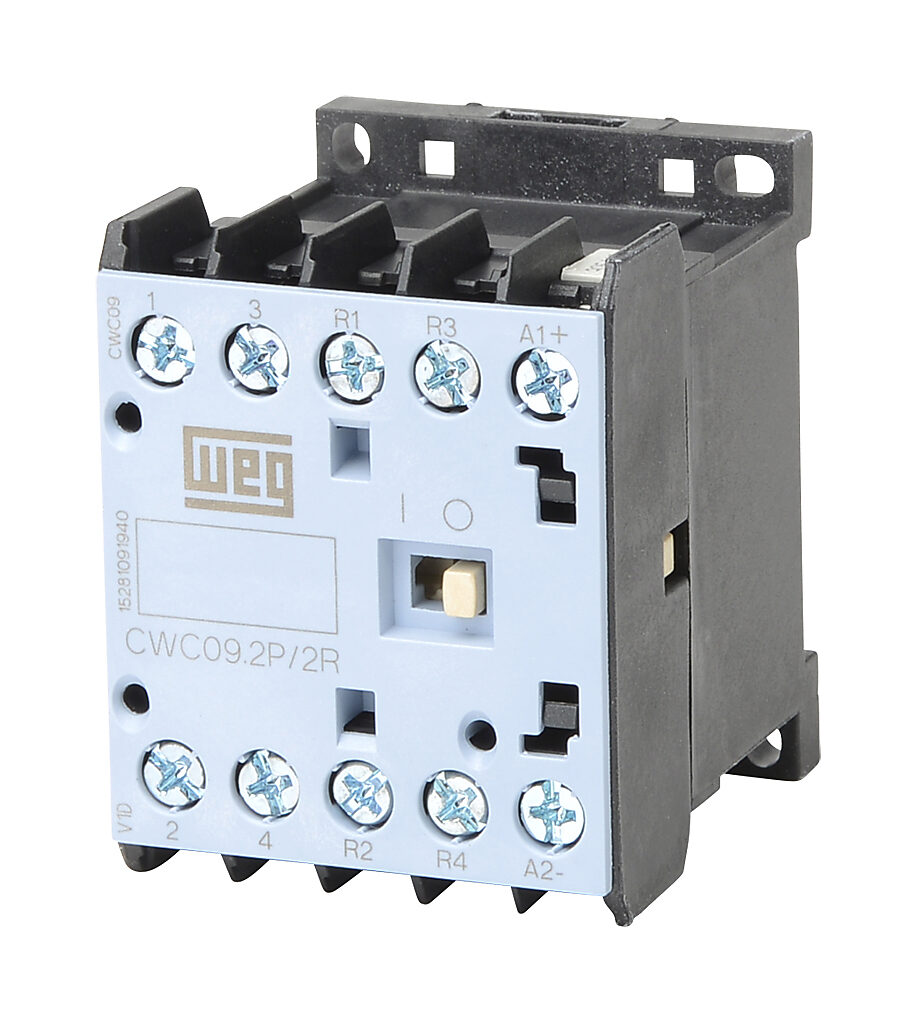

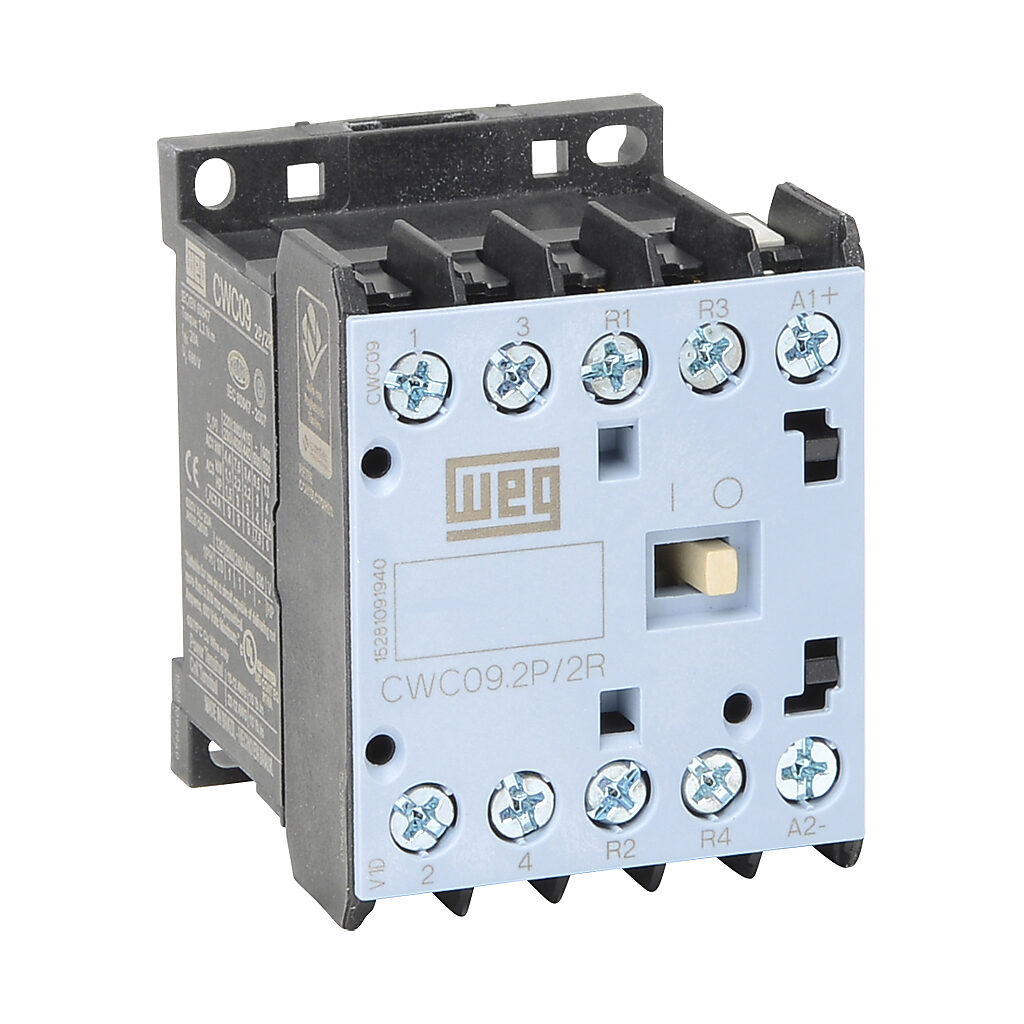

WEG CWC09-00-22R02 13181184 Miniature Contactor, 9 A Rated, 2 NO + 2 NC Main Contact, 12V DC

Item: BD4YEE
Model: CWC09-00-22R02
In Stock

Get it by Thursday, Apr 16

£45.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuator Type Magnetic
Coil Voltage 12V DC
Contact Type NO/NC
Contactor Type IEC Miniature
Control Voltage 12V DC
Depth 2.05"
Electrical Lifespan 1.3 Million Cycles
Height 2.28"
Main Contacts NO, NC
Max. Rated Operational Frequency 25 Hz
Mechanical Lifespan (ac) 10 Milion Cycles
Mechanical Lifespan (dc) 12 Milion Cycles
Min. Rated Operational Frequency 400 Hz
No. Of Contacts 2 NO, 2 NC
Number Of Contacts 4
Number Of Poles 4
Power Poles NO/NC
Rated Current 9A
Rated Insulation Voltage 1000V
Rated Operational Amps Ie Ac-1 20A
Rated Operational Voltage 690V
Series CWC Series
Terminal Type Screw
Width 1.77"
Degree Of Protection Ip (iec 60529) - Control Circuit IP20
Degree Of Protection Ip (iec 60529) - Main Circuit IP20
Main Contact 2 NO + 2 NC
Rated Insulation Voltage Ui (pollution Degree 3) 600V
Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 1000V
rated operational amps ie ac-1 (¿ = 55 ºc) 20A
Rated Operational Voltage Ue 690V
Reference CWC0

Product Details

Shipping Information

height 6.35
length 9.4
width 6.35
country of origin BR
weight 0.225000
