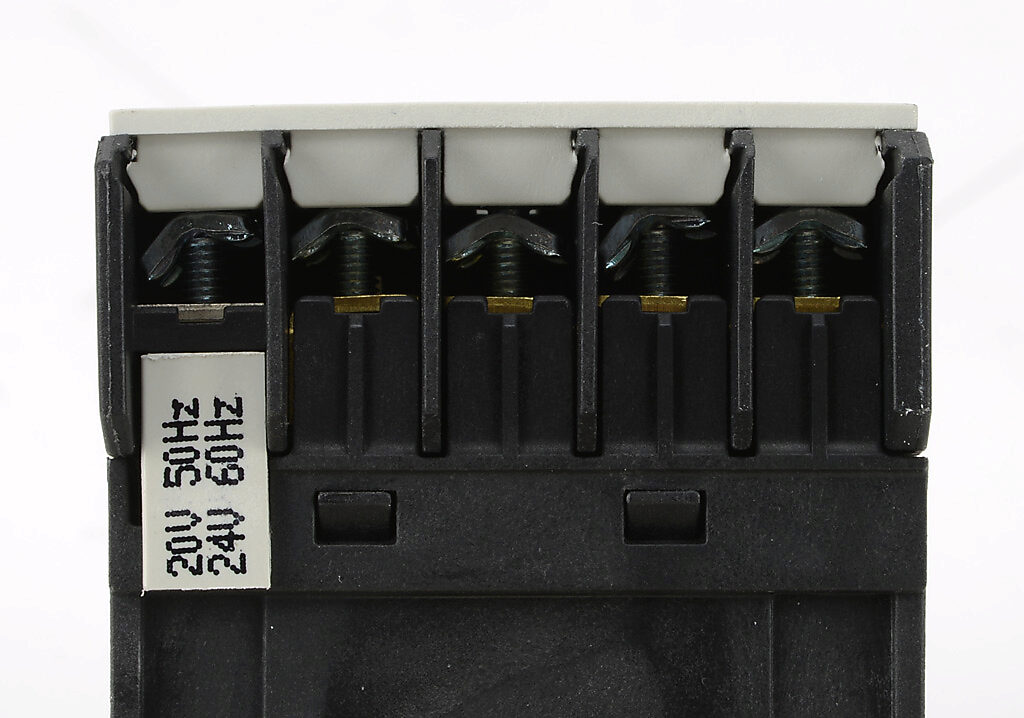

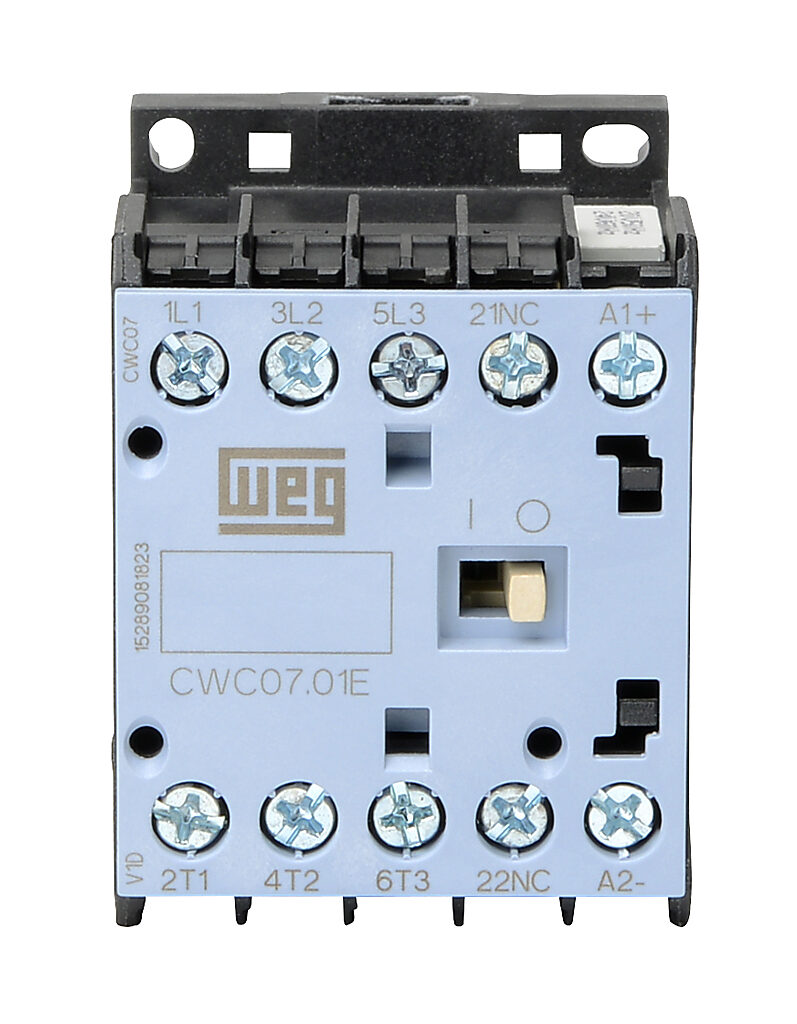

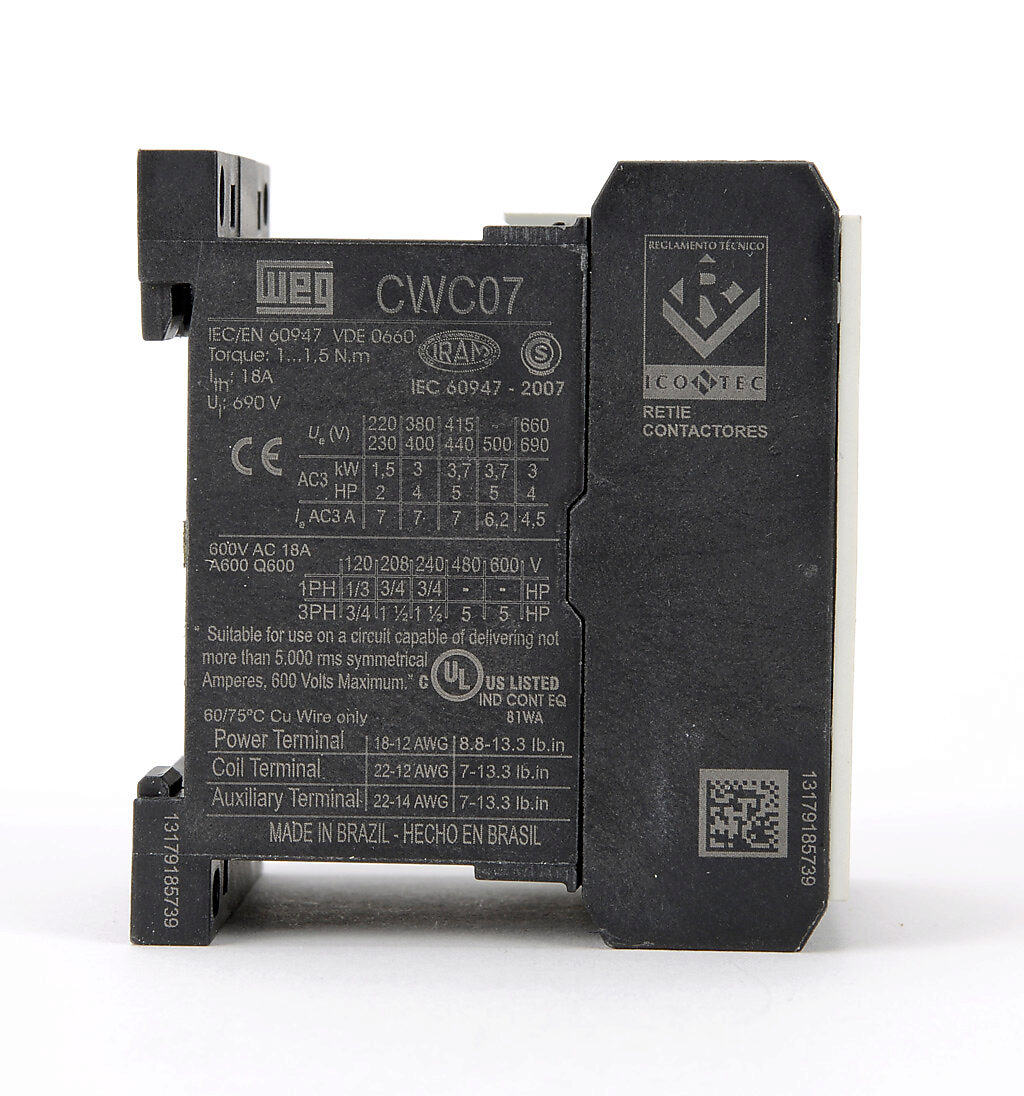

WEG CWC07-01-30V04 12486546 Miniature Contactor, 7 A Rated, 3 NO Main Contact, 1 NC Aux Contact, 20V 50Hz/24V 60Hz

Item: BD2BZH
Model: CWC07-01-30V04
In Stock

Get it by Thursday, Apr 16

£31.52/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuator Type Magnetic
Auxiliary Contacts NC
Coil Frequency 60 Hz
Coil Type Magnetic
Coil Voltage 24V AC
Contact Type NO
Contactor Type IEC Miniature
Control Voltage 20/24V
Depth 2.05"
Electrical Lifespan 1.4 Million Cycles
Frequency 60/50 Hz
Height 2.28"
Main Contacts NO
Max Hp 120v 1ph 33/100 hp
Max Hp 200/208v 3ph 1 1/2 hp
Max Hp 230/240v 1ph 3/4 hp
Max Hp 230/240v 3ph 1 1/2 hp
Max Hp 460/480v 3ph 5 hp
Max Hp 575/600v 3ph 5 hp
Max. Rated Operational Frequency 25 Hz
Mechanical Lifespan (ac) 10 Milion Cycles
Mechanical Lifespan (dc) 12 Milion Cycles
Min. Rated Operational Frequency 400 Hz
No. Of Contacts 3 NO
Nominal Coil Voltage 24V AC
Number Of Contacts 2
Number Of Poles 3
Power Poles NO
Rated Current 7A
Rated Insulation Voltage 690V
Rated Operational Amps Ie Ac-1 18A
Rated Operational Voltage 690V
Series CWC Series
Terminal Type Screw
Termination Screw
Ul Motor Switching 7A
Width 1.77"
Degree Of Protection Ip (iec 60529) - Control Circuit IP20
Degree Of Protection Ip (iec 60529) - Main Circuit IP20
Main Contact 3 NO
Rated Insulation Voltage Ui (pollution Degree 3) 600V
Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 690V
rated operational amps ie ac-1 (¿ = 55 ºc) 18A
Rated Operational Voltage Ue 690V
Reference CWC0

Product Details

Shipping Information

height 6.35
length 9.4
width 6.35
country of origin BR
weight 0.180000
