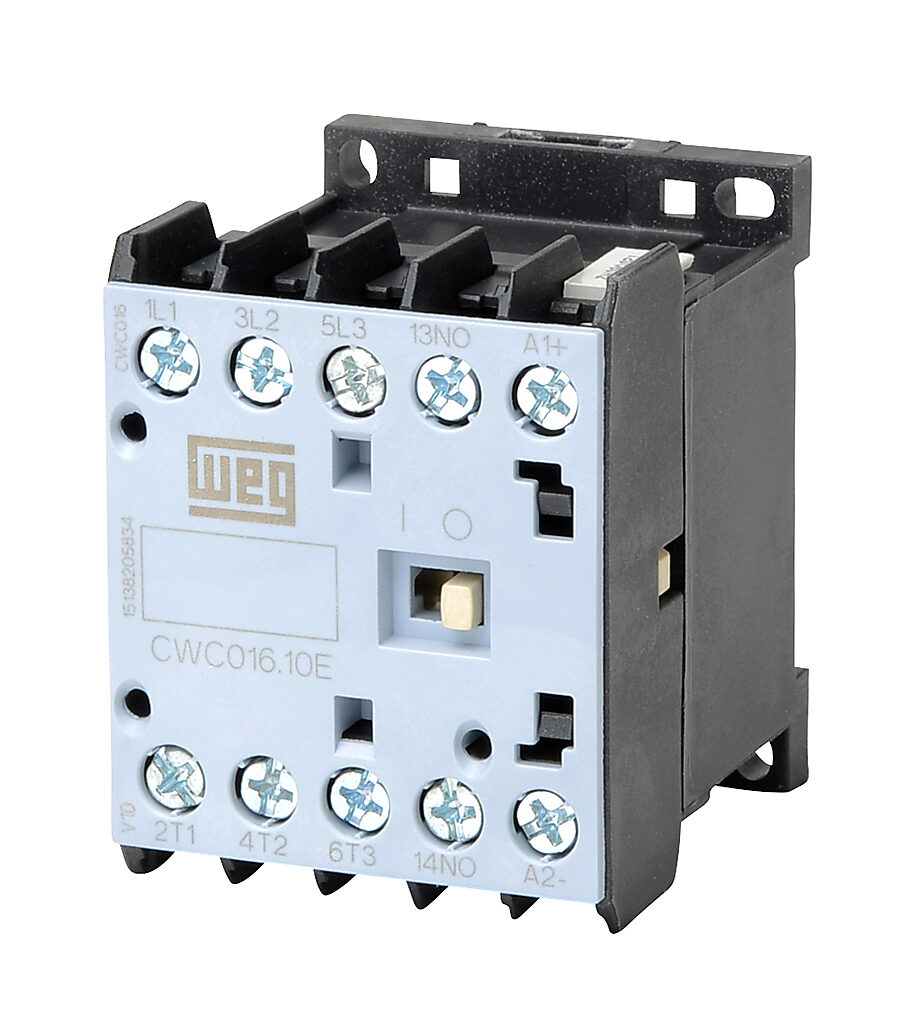

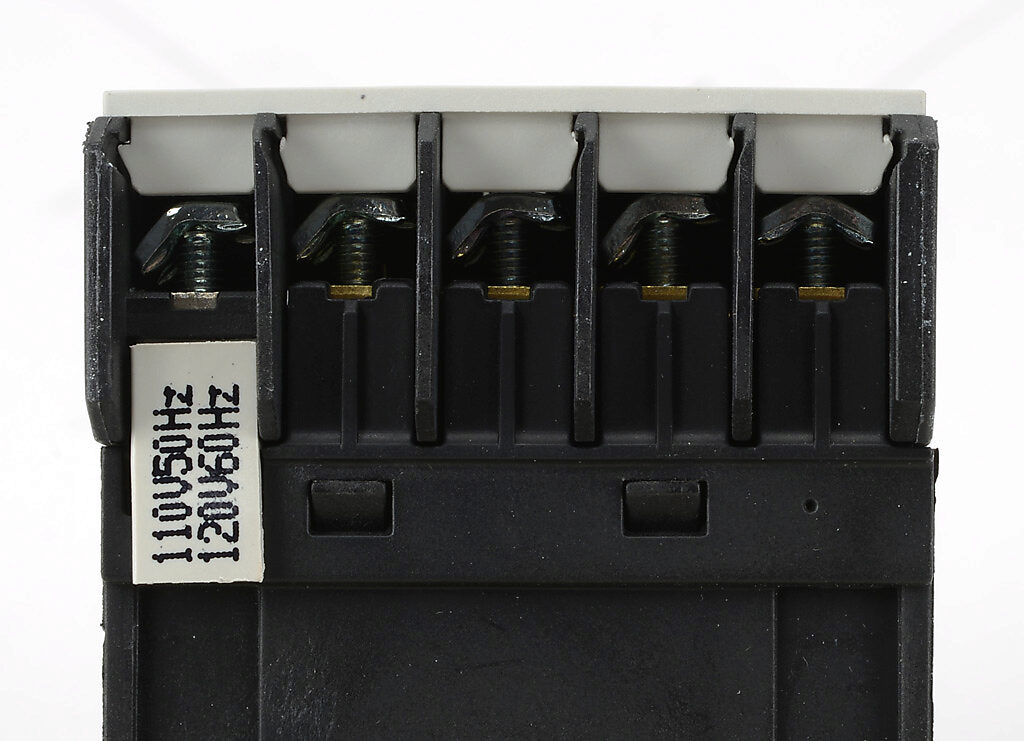

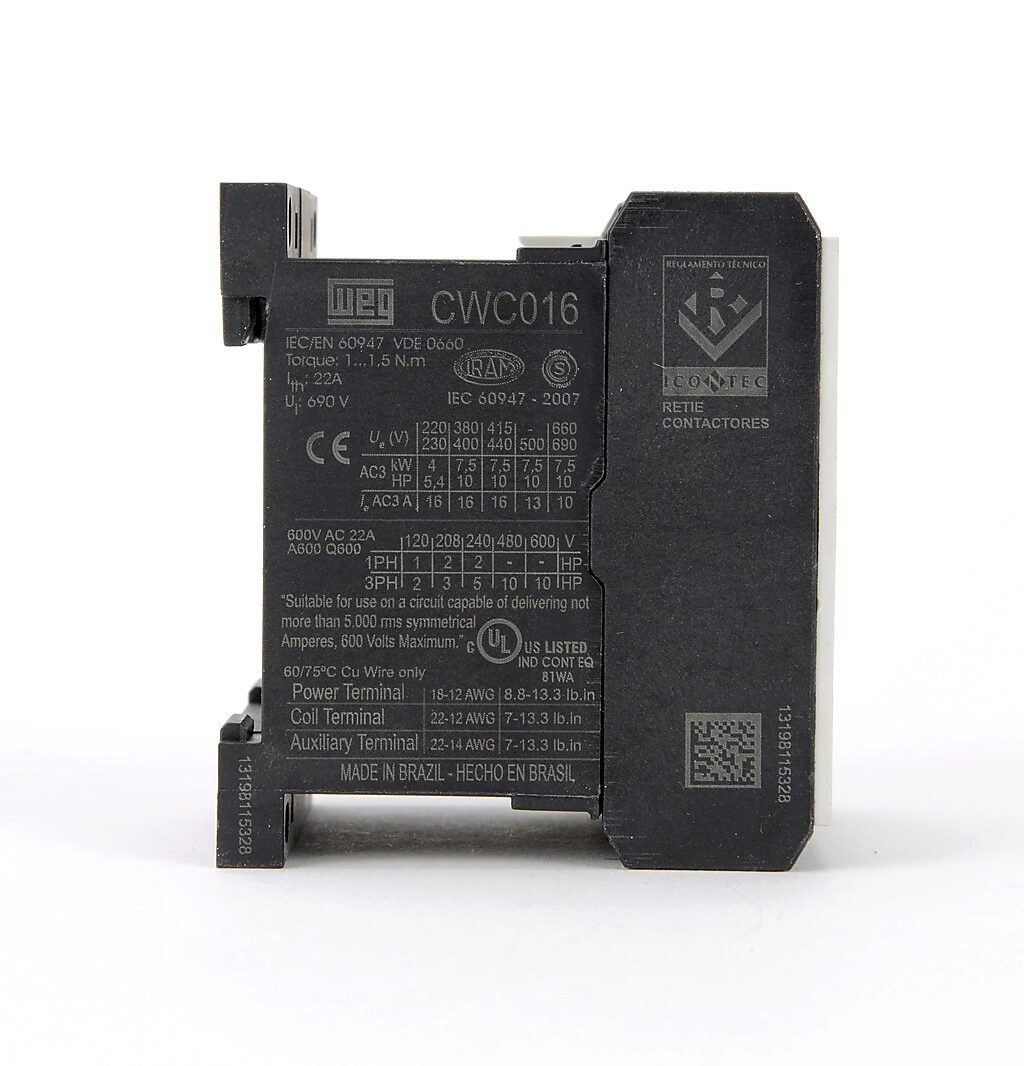

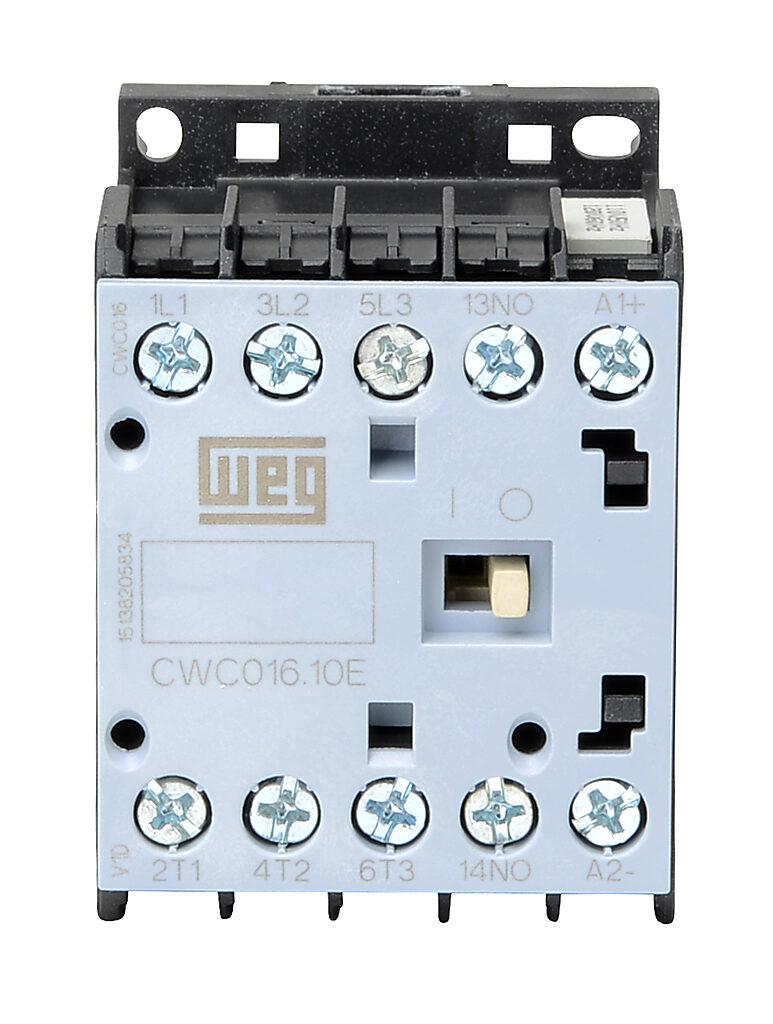

WEG CWC016-10-30V18 12679863 Miniature Contactor, 16 A, 3 NO Main Contact, 1 NO Aux Contact, 110V 50Hz/120V 60Hz
Item: BC8FEF
Model: CWC016-10-30V18
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Magnetic |
|---|---|
| Auxiliary Contacts | NO |
| Coil Frequency | 50/60 Hz |
| Coil Type | Magnetic |
| Coil Voltage | 120/110V AC , 120V AC |
| Contact Type | NO |
| Contactor Type | IEC Miniature |
| Control Voltage | 110/120V |
| Depth | 2.05" |
| Electrical Lifespan | 1 Million Cycles |
| Frequency | 60/50 Hz |
| Gross Weight | 0.425 lbs. |
| Height | 2.28" |
| Main Contacts | NO |
| Max Hp 120v 1ph | 1 hp |
| Max Hp 200/208v 3ph | 3 hp |
| Max Hp 230/240v 1ph | 2 hp |
| Max Hp 230/240v 3ph | 5 hp |
| Max Hp 460/480v 3ph | 10 hp |
| Max Hp 575/600v 3ph | 10 hp |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 12 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
|---|---|
| No. Of Contacts | 3 NO |
| Nominal Coil Voltage | 120V AC |
| Number Of Contacts | 2 |
| Number Of Poles | 3 |
| Power Poles | NO |
| Rated Current | 16A |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 22A |
| Rated Operational Voltage | 690V |
| Series | CWC Series |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 16A |
| Width | 1.77" |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP20 |
| Main Contact | 3 NO |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 | 690V |
| rated operational amps ie ac-1 (¿ = 55 ºc) | 22A |
| Rated Operational Voltage Ue | 690V |
| Reference | CWC0 |
Product Details
Contactor
Shipping Information
| height | 6.35 |
|---|---|
| length | 9.4 |
| width | 6.35 |
| country of origin | BR |
|---|---|
| weight | 0.184000 |
