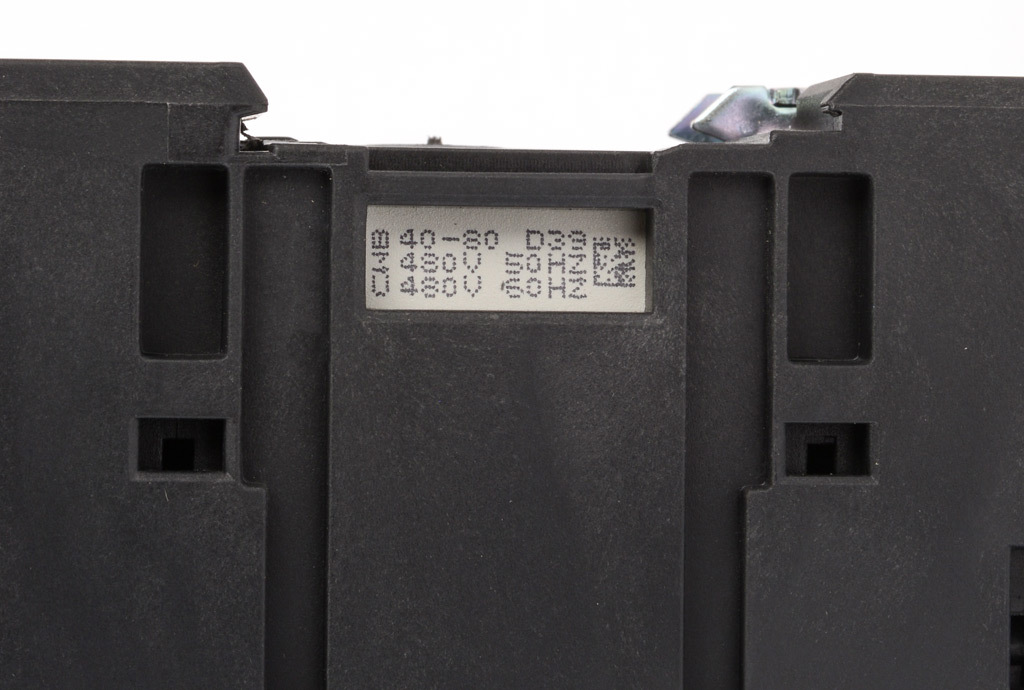

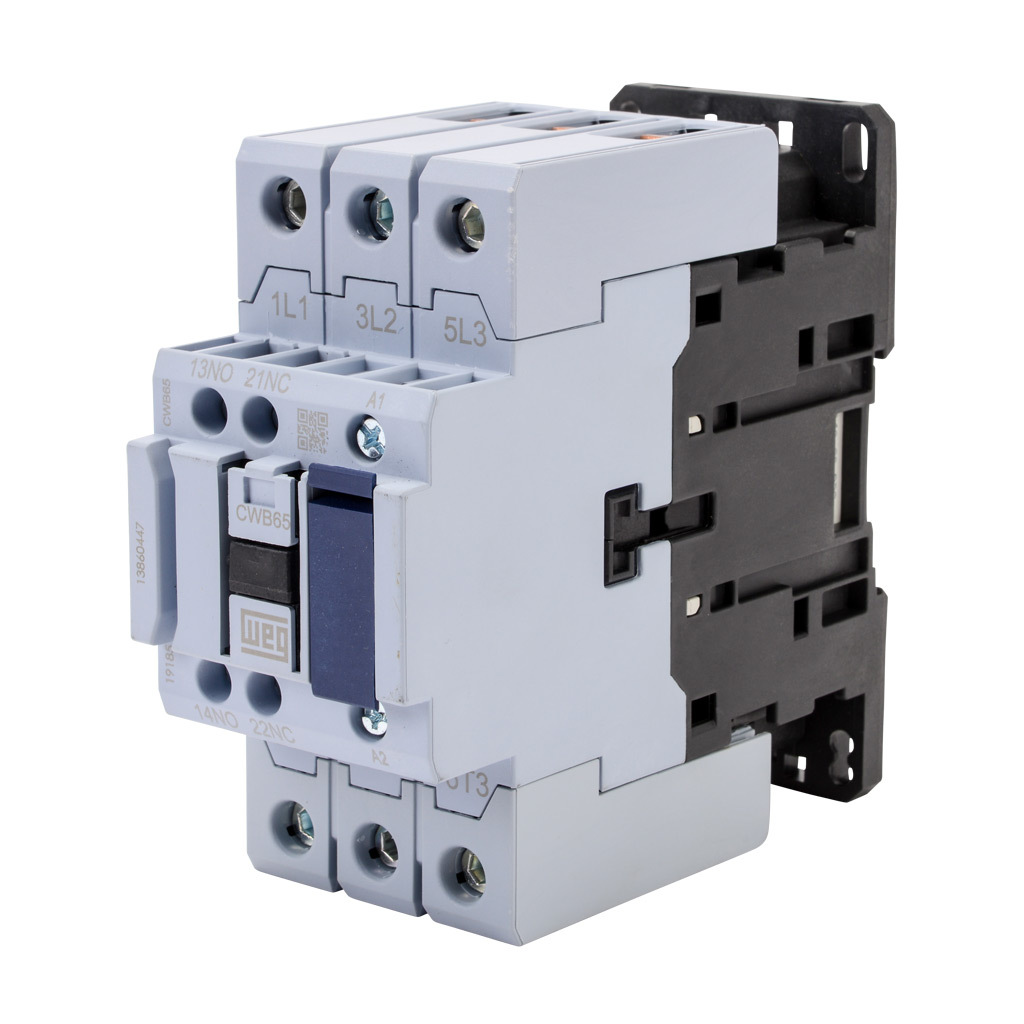

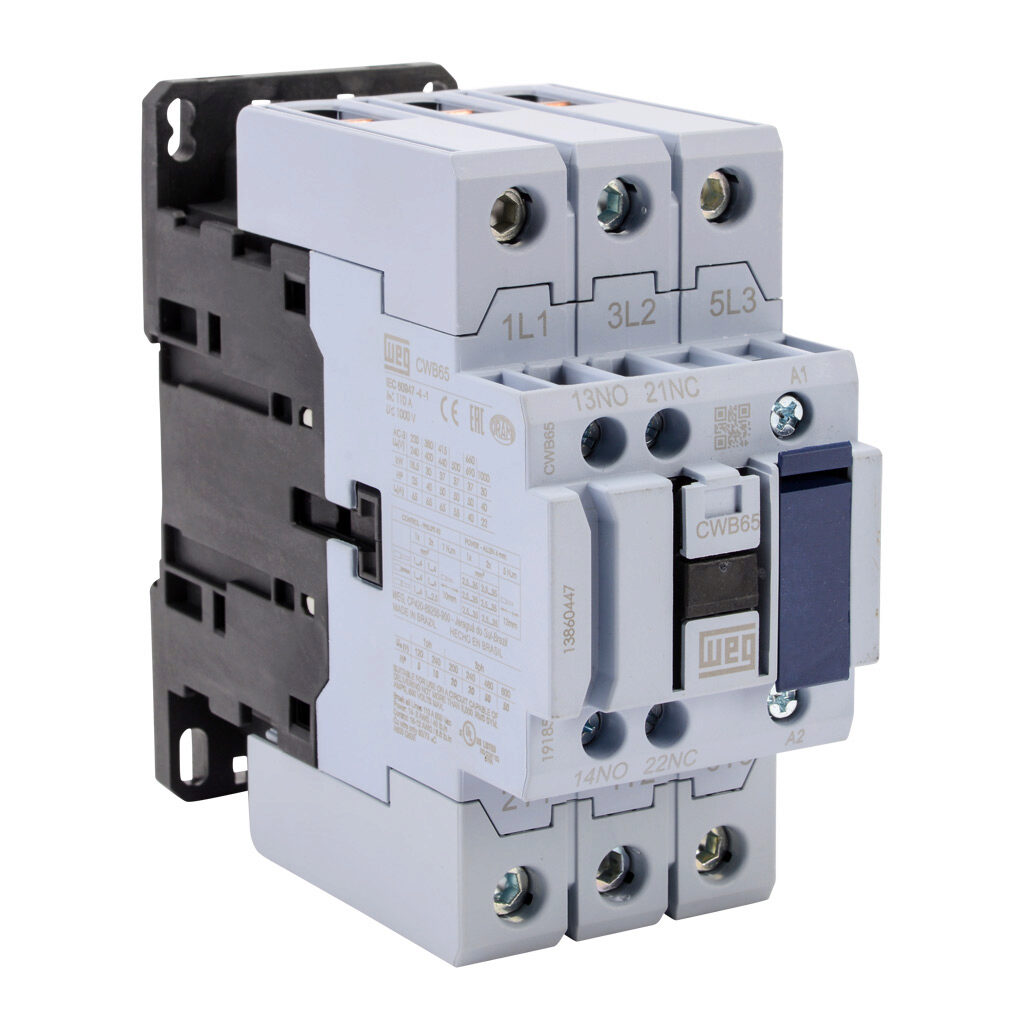

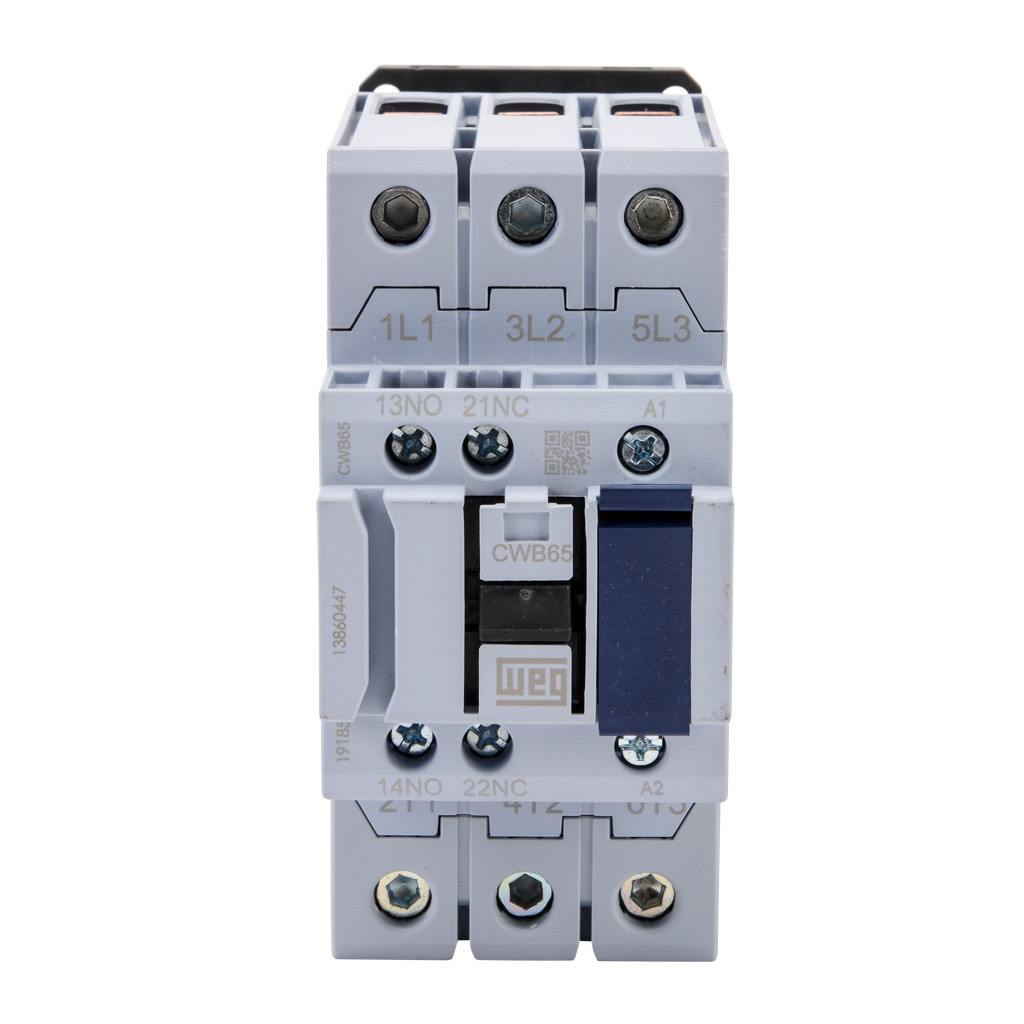

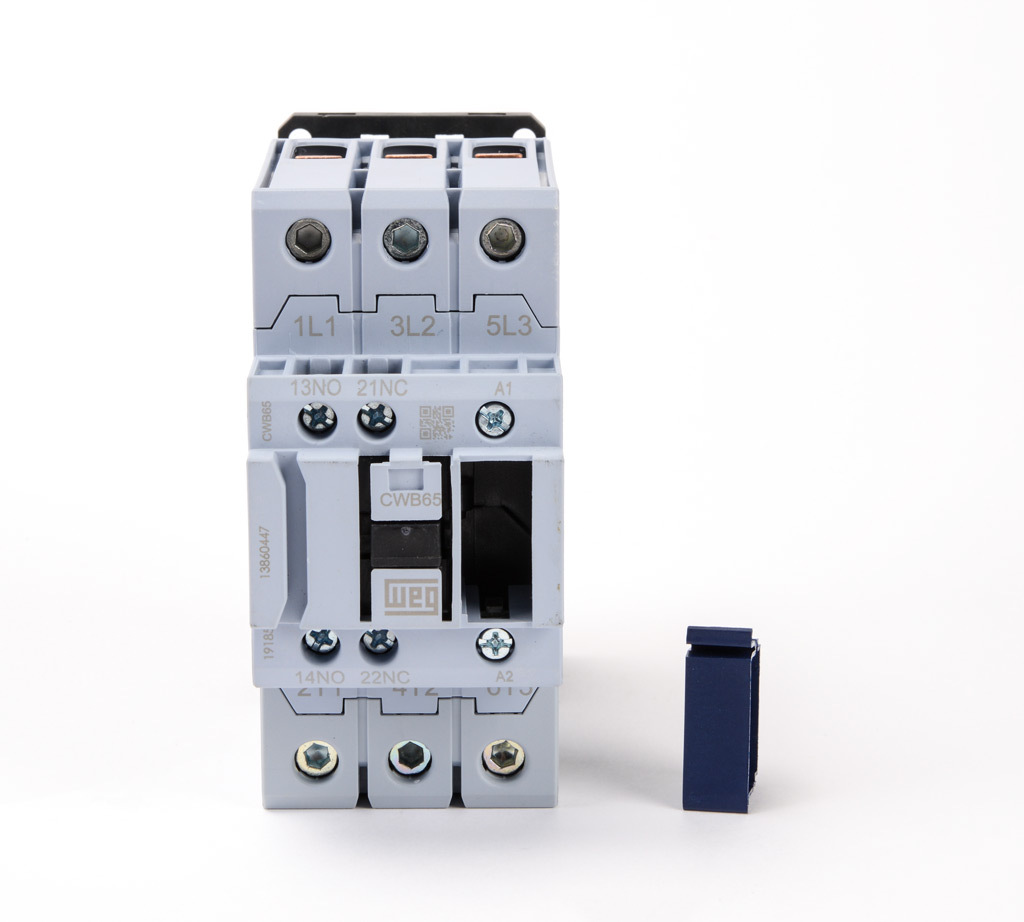

WEG CWB65-11-30D39 13860447 Contactor, 65 A Rated, 3 NO Main Contact, 1 NO, 1 NC Aux Contact, 480V 50/60Hz
Item: CV6TBQ
Model: CWB65-11-30D39
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Magnetic |
|---|---|
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 480V AC |
| Contact Type | NO |
| Contactor Type | IEC |
| Control Voltage | 480V |
| Depth | 4 3/4" |
| Electrical Lifespan | 1.6 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 4.53" |
| Horsepower Rating | 50 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 6 Milion Cycles |
| Mechanical Lifespan (dc) | 6 Milion Cycles |
| Mechanically Interlocked | Yes |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | Din Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 3 NO |
| Nominal Coil Voltage | 480V DC |
| Number Of Contacts | 2 |
|---|---|
| Number Of Poles | 3 |
| Power Poles | NO |
| Rated Current | 65A |
| Rated Insulation Voltage | 1000V |
| Rated Operational Amps Ie Ac-1 | 110A |
| Rated Operational Voltage | 1000V |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Termination | Screw |
| Ul Motor Switching | 65A |
| Width | 2.13" |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Main Contact | 3 NO |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 | 1000V |
| rated operational amps ie ac-1 (¿ = 55 ºc) | 110A |
| Rated Operational Voltage Ue | 1000V |
| Reference | CWB |
Product Details
IEC Magnetic Contactor
Shipping Information
| height | 11.51 |
|---|---|
| length | 12.06 |
| width | 5.41 |
| country of origin | BR |
|---|---|
| weight | 0.895500 |
