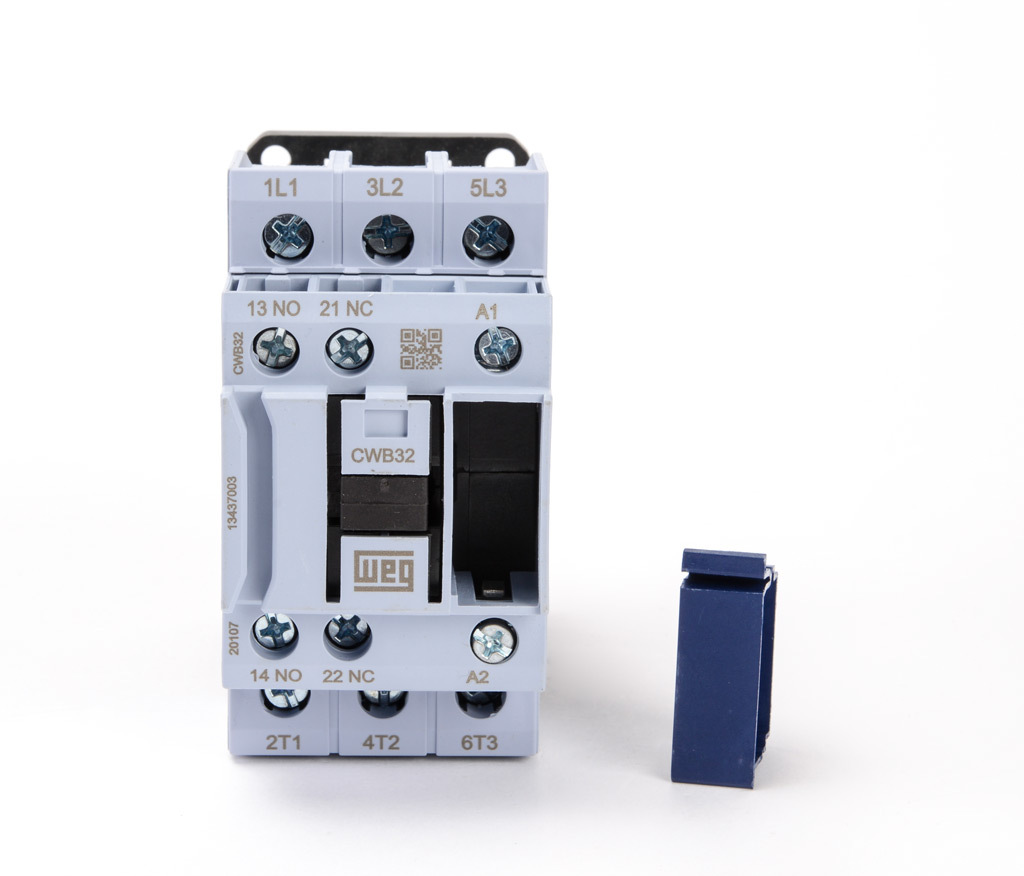

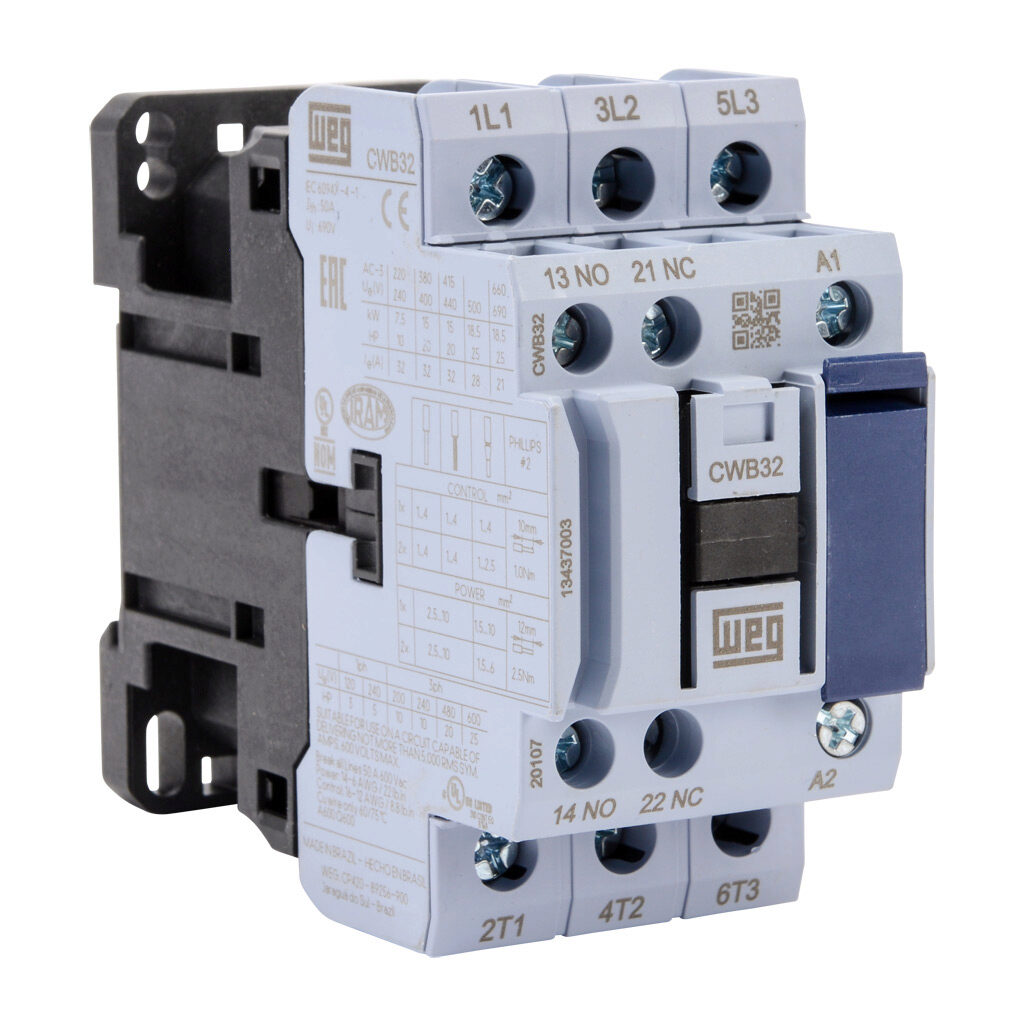

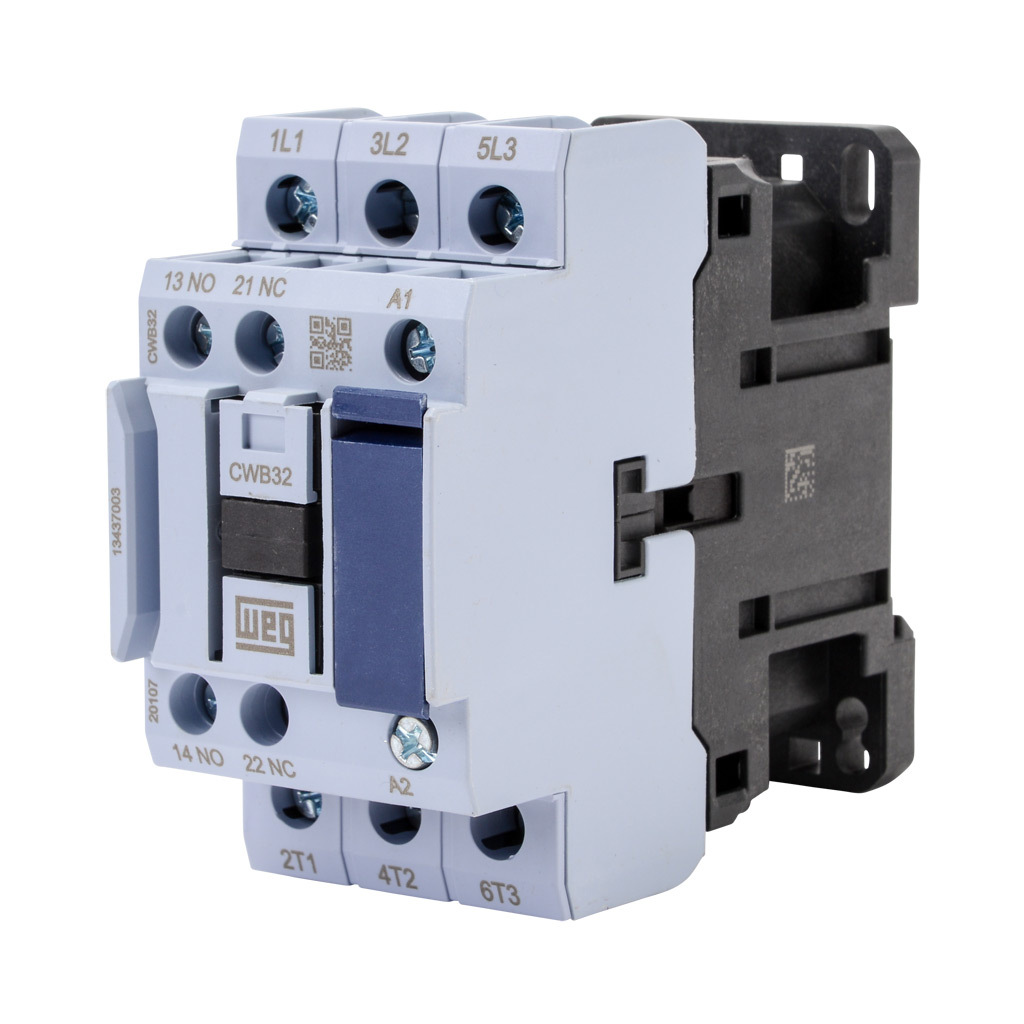

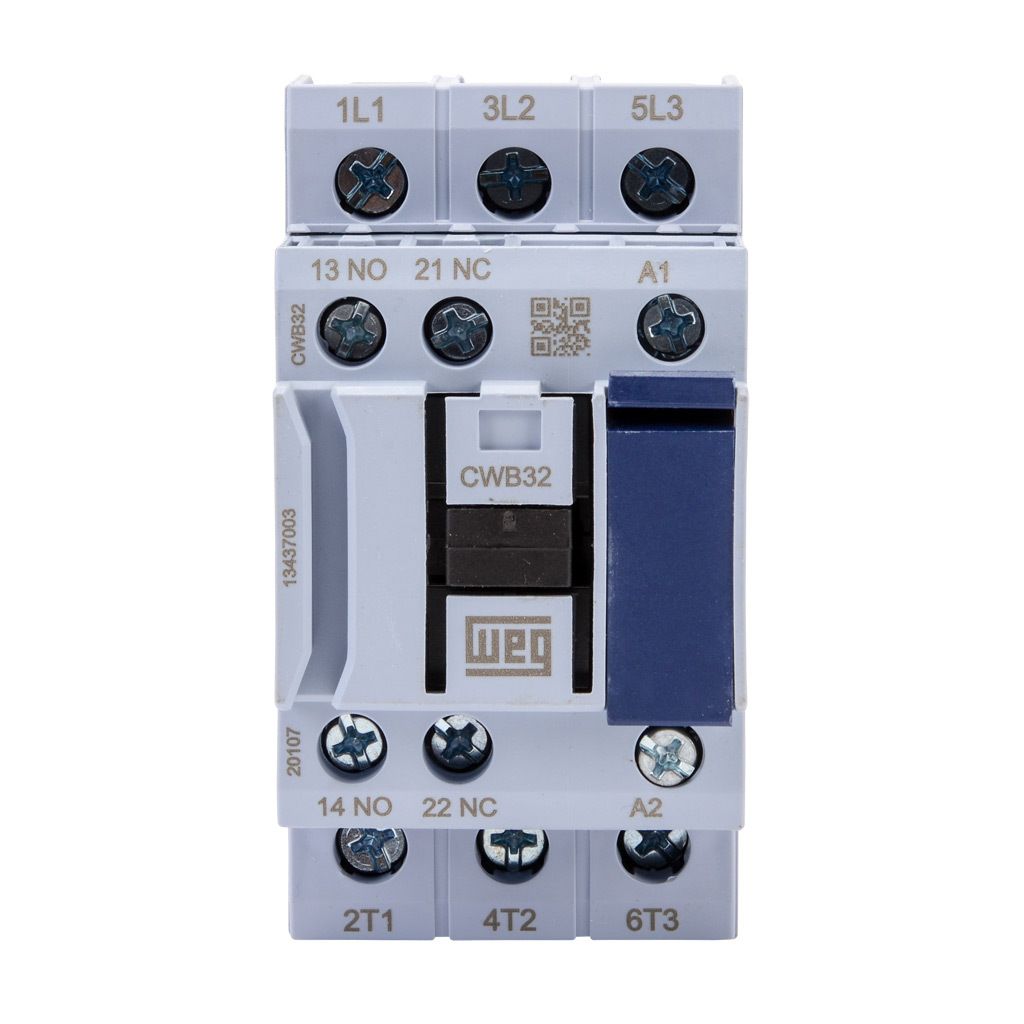

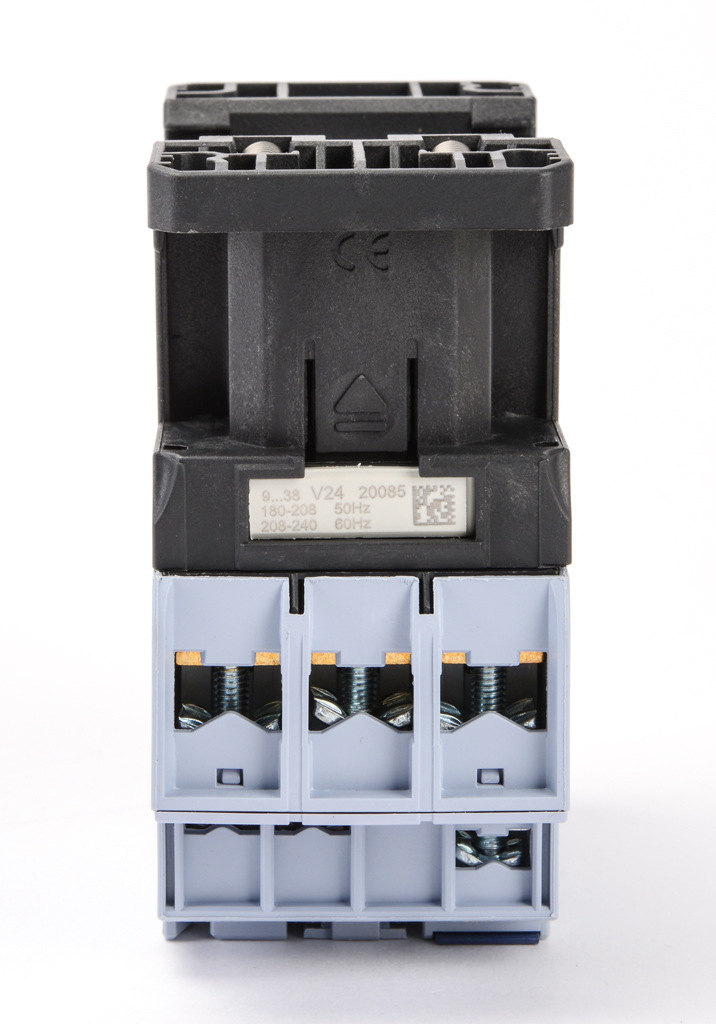

WEG CWB32-11-30V24 13437003 Contactor, 32 A, 3 NO Main Contact, 180-208V 50Hz/208-240V 60Hz
Item: BC8KML
Model: CWB32-11-30V24
In Stock
Get it by Wednesday, Apr 15
£122.4/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Magnetic |
|---|---|
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 180-208/208-240V AC |
| Contact Type | NO |
| Contactor Type | IEC |
| Control Voltage | 180-208/208-240V |
| Depth | 3.66" |
| Electrical Lifespan | 1.6 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 3.35" |
| Horsepower Rating | 20 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | Din Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 3 NO |
| Number Of Contacts | 2 |
|---|---|
| Number Of Poles | 3 |
| Power Poles | NO |
| Rated Current | 32A |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 50A |
| Rated Operational Voltage | 690V |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Width | 1.77" |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Main Contact | 3 NO |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 | 690V |
| rated operational amps ie ac-1 (¿ = 55 ºc) | 50A |
| Rated Operational Voltage Ue | 690V |
| Reference | CWB |
Product Details
Contactor
Shipping Information
| height | 6.35 |
|---|---|
| length | 9.4 |
| width | 6.35 |
| country of origin | BR |
|---|---|
| weight | 0.423000 |
