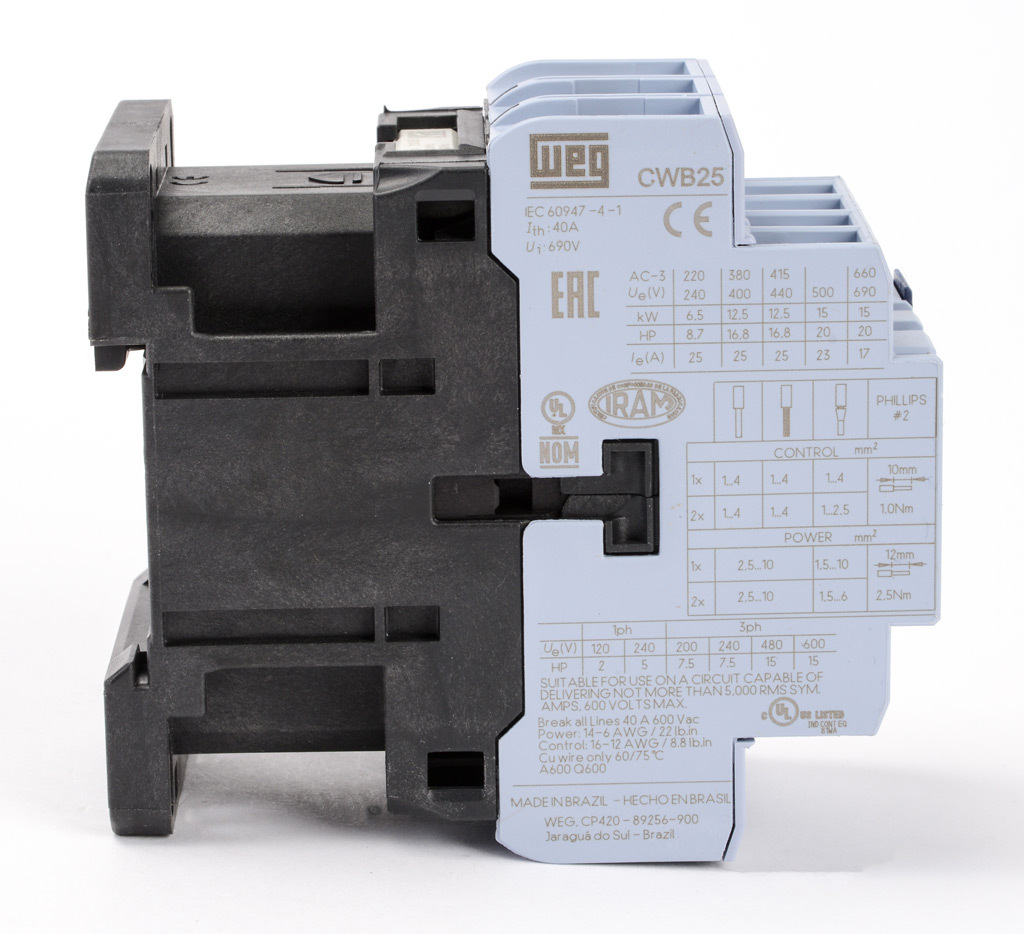

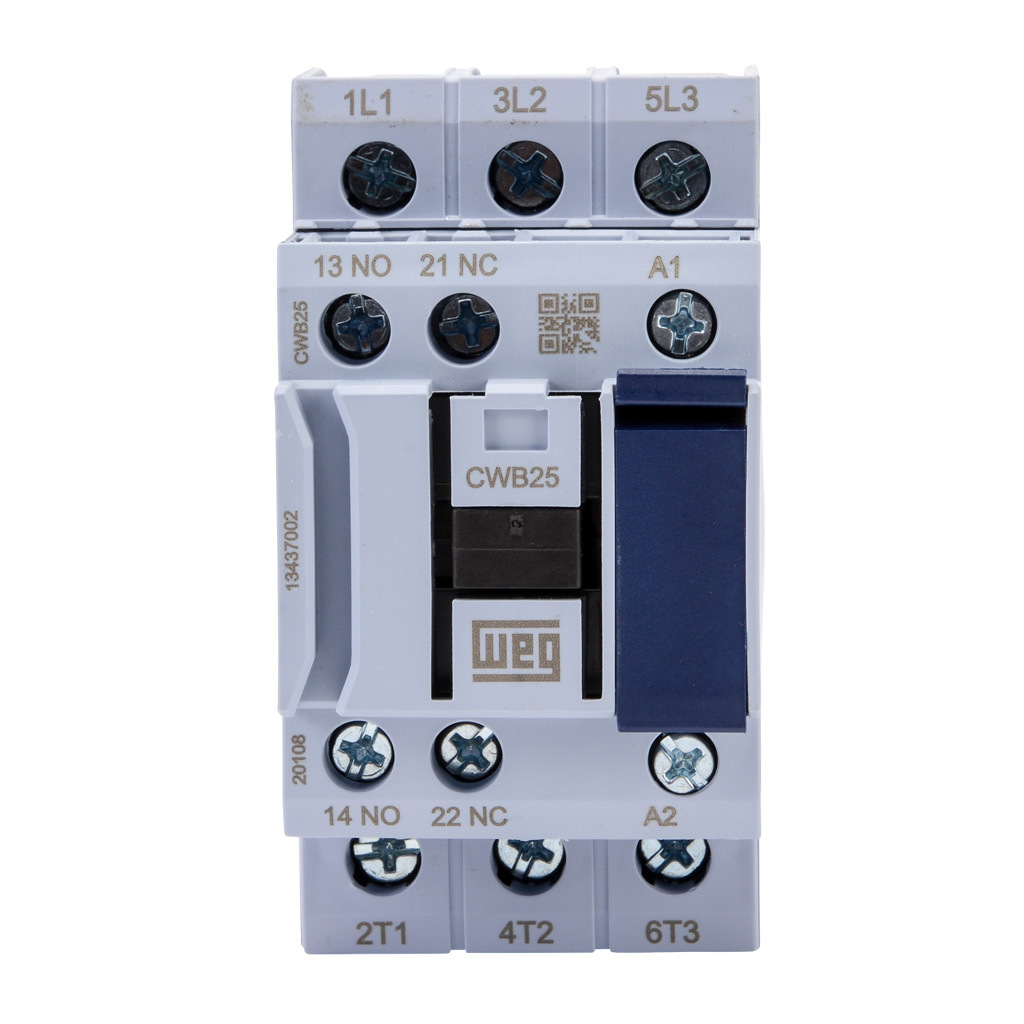

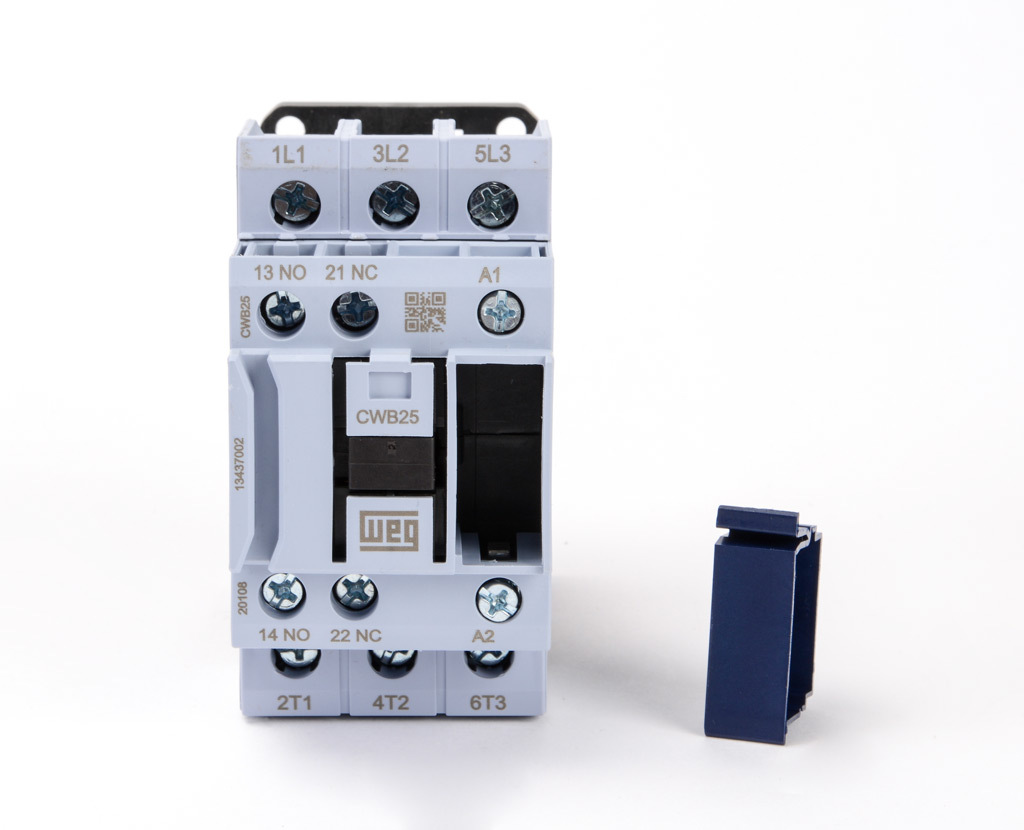

WEG CWB25-11-30V24 13437002 Iec Contactor, 25A, 3 N.O. Power Poles, 208-240 VAC 60Hz/180-208 VAC 50Hz Coil Voltage
Item: BD6AUV
Model: CWB25-11-30V24
In Stock
Get it by Thursday, Apr 16
£102/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Magnetic |
|---|---|
| Auxiliary Contacts | NO/NC |
| Coil Frequency | 50/60 Hz |
| Coil Voltage | 180-208/208-240V AC |
| Contactor Type | IEC |
| Control Voltage | 180-208/208-240V |
| Depth | 3.66" |
| Electrical Lifespan | 1.6 Million Cycles |
| Frequency | 60/50 Hz |
| Height | 3.35" |
| Horsepower Rating | 15 hp |
| Main Contacts | NO |
| Max. Rated Operational Frequency | 25 Hz |
| Mechanical Lifespan (ac) | 10 Milion Cycles |
| Mechanical Lifespan (dc) | 10 Milion Cycles |
| Min. Rated Operational Frequency | 400 Hz |
| Mounting | Din Rail, Panel |
| Mounting Size | 35 mm |
| No. Of Contacts | 3 NO |
| Number Of Poles | 3 |
|---|---|
| Power Poles | NO |
| Rated Insulation Voltage | 690V |
| Rated Operational Amps Ie Ac-1 | 40A |
| Rated Operational Voltage | 690V |
| Sccr Rating | 5 kA |
| Series | CWB Series |
| Terminal Type | Screw |
| Voltage | 24V DC |
| Width | 1.77" |
| Degree Of Protection Ip (iec 60529) - Control Circuit | IP20 |
| Degree Of Protection Ip (iec 60529) - Main Circuit | IP10 |
| Main Contact | 3 NO |
| rated amps | 25A |
| Rated Insulation Voltage Ui (pollution Degree 3) | 600V |
| Rated Insulation Voltage Ui (pollution Degree 3) - Iec 60974-4-1 | 690V |
| rated operational amps ie ac-1 (¿ = 55 ºc) | 40A |
| Rated Operational Voltage Ue | 690V |
| Reference | CWB |
Product Details
Contactor
Shipping Information
| height | 6.35 |
|---|---|
| length | 9.4 |
| width | 6.35 |
| country of origin | BR |
|---|---|
| weight | 0.418500 |
