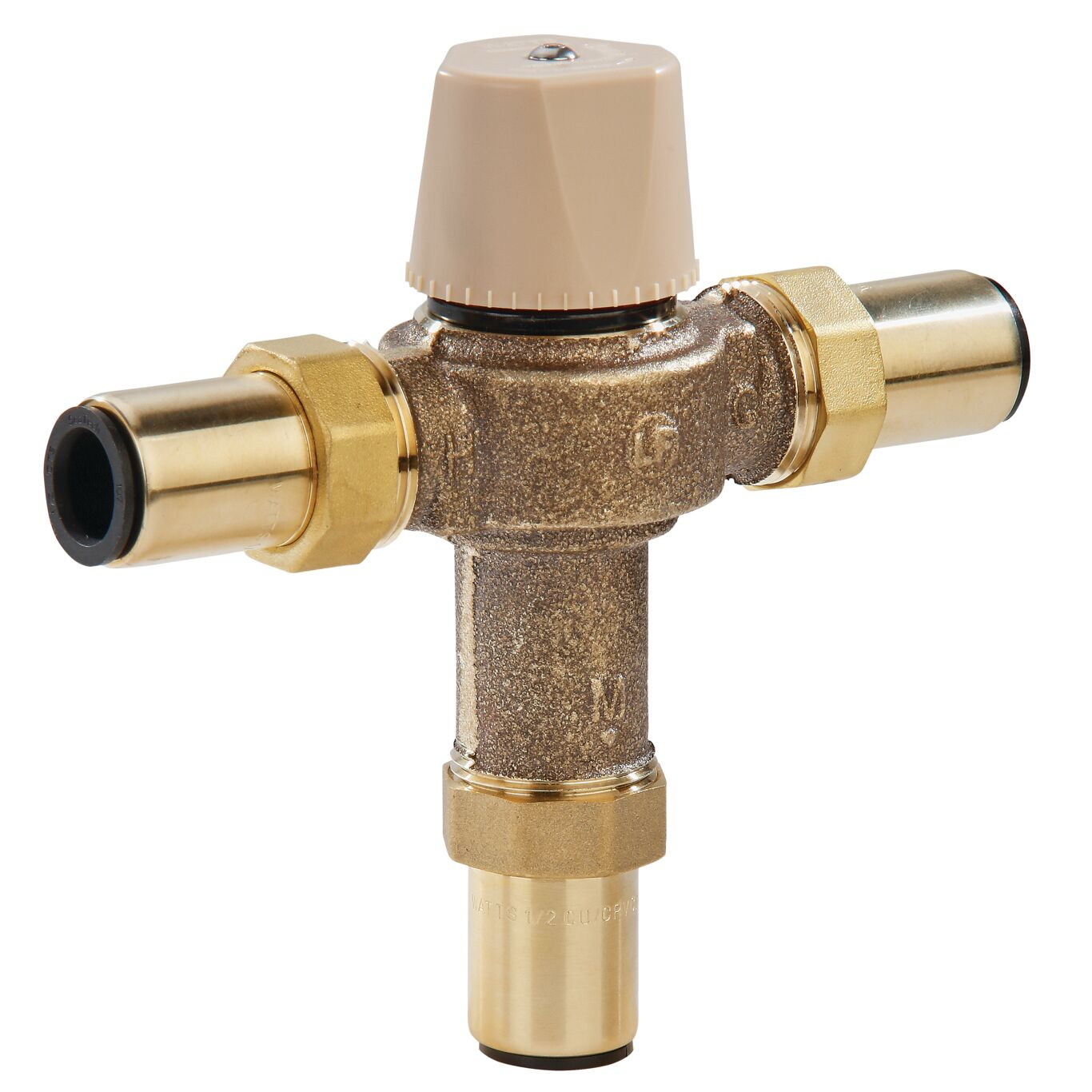

WATTS LFMMVM1-QC 1 0559166 Thermostatic Mixing Valve, 1 Inch Inlet Connection Size, 1 Inch Outlet Connection Size
Item: AF8XQQ
Model: LFMMVM1-QC 1
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Body Material | Copper Silicon Alloy |
|---|---|
| Cold Inlet Temp. | +33°F to +85°F |
| Connection Type | Quick Connect |
| Flow Rate | 13 GPM |
| Hot Inlet Temp. | +120° to +180°F |
| Hot Inlet Temp. Range | 120°F to 180°F |
| Includes | Check Valves, Integral Filter Washers, Solid Wax Hydraulic Principle Thermostat |
| Includes Temperature Gauge | No |
| Inlet (cold) Temperature Range | 39°F to 85°F |
| Inlet Connection Size | 1" |
| Inlet Size | 1" |
|---|---|
| Inlet Type | Quick Connect |
| Max. Operating Pressure | 150 psi |
| Max. Pressure | 150 psi |
| Outlet Size | 1" |
| Outlet Temperature Range | 80°F to 120°F |
| Outlet Type | Quick Connect |
| Temp. Range | +80°F to +120°F |
| Valve Type | Thermostatic |
| standard | ASSE 1017, ASSE 1069, ASSE 1070, UPC |
Product Details
Thermostatic Mixing Valve
Shipping Information
| height | 18.73 |
|---|---|
| length | 6.19 |
| width | 14.29 |
| hs code | 8481400000 |
|---|---|
| weight | 1.597500 |
Related Products
| Style | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Inlet Type | Hot Inlet Temp. | Cold Inlet Temp. | Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | LFMMV-M1-US | 13 GPM | 1" | Solder | 1" | Union | +120° to +180°F | +33°F to +85°F | - | 587.30 | |
| B | LFMMVM1-UT 1/2 | 13 GPM | 1/2" | Threaded | 1/2" | Union | +120° to +180°F | +33°F to +85°F | - | 303.79 | |
| C | LFMMVM1-UT 3/4 | 13 GPM | 3/4" | Threaded | 3/4" | Union | +120° to +180°F | +33°F to +85°F | - | 385.03 | |
| C | LFMMVM1-UT 1 | 13 GPM | 1" | Threaded | 1" | Union | +120° to +180°F | +33°F to +85°F | - | 632.90 | |
| D | LFMMVM1-QC 1/2 | 13 GPM | 1/2" | Quick Connect | 1/2" | Quick Connect | +120° to +180°F | +33°F to +85°F | - | 354.29 | |
| E | LFMMVM1-QC 3/4 | 13 GPM | 3/4" | Quick Connect | 3/4" | Quick Connect | +120° to +180°F | +33°F to +85°F | - | 284.00 | |
| F | LFMMVM1-CPVC 1/2 | 0.5-13 GPM | 1/2" | Push | - | - | +120°F to +180°F | +39°F to +85°F | 20 GPM at 125 psi | 411.60 |
