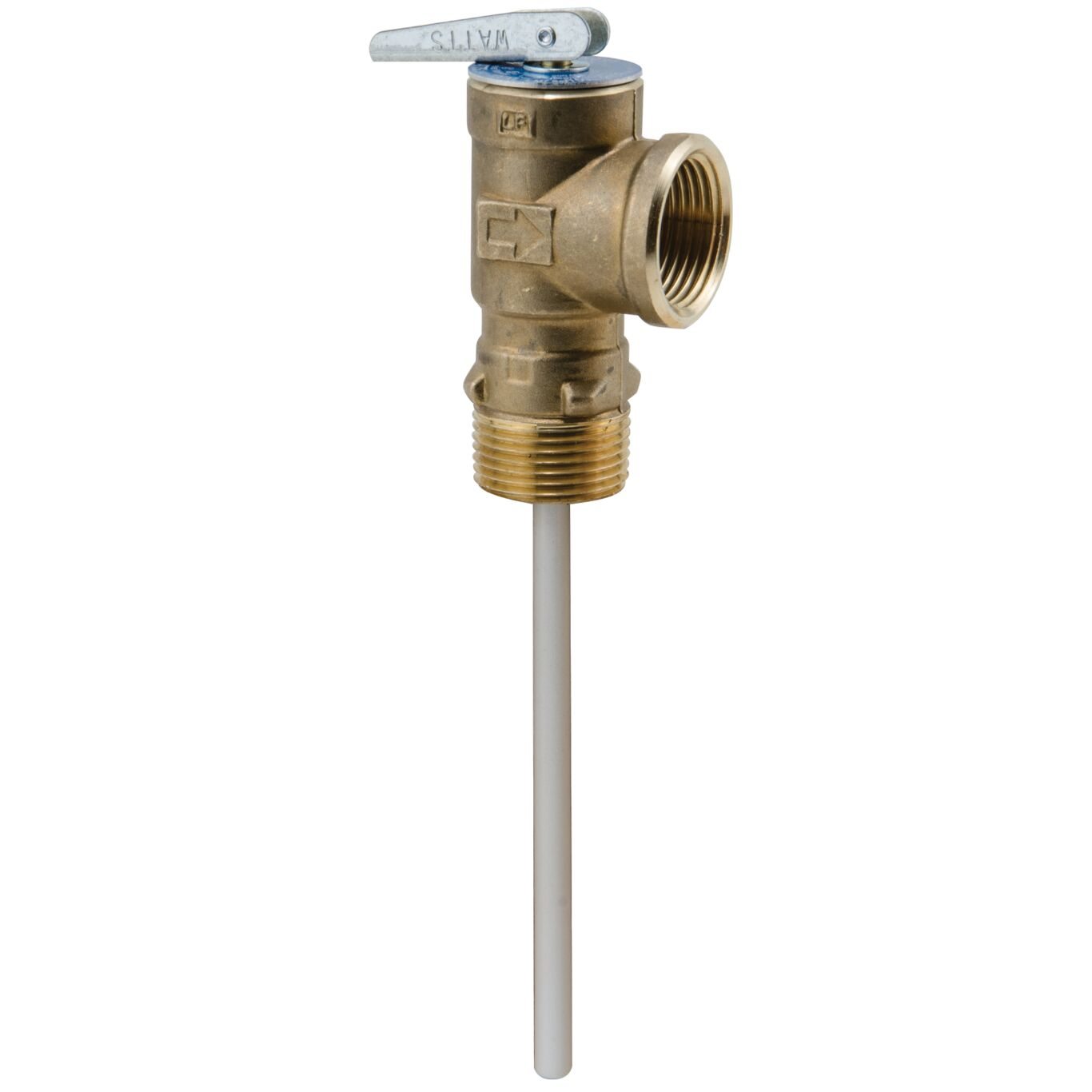

WATTS LF100XL-Z11 100-180 0121357 Temperature And Pressure Relief Valve, 3/4 Inch Size, 100 Psi Relief Pressure
Item: BP4FVW
Model: LF100XL-Z11 100-180
In Stock
Get it by Friday, Apr 17
£78.72/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Temperature and Pressure Relief Valve |
|---|---|
| Body Material | Lead Free Copper Silicon Alloy |
| Discharge Capacity | 200000 btuH |
| Gpm-when Relieved | Not Applicable |
| Inlet Size | 3/4" |
| Inlet Thread Type | NPT |
| Inlet Type | Male Threaded |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 210°F |
| Max. Working Pressure | 75 psi |
| Outlet Size | 3/4" |
|---|---|
| Outlet Thread Type | NPT |
| Outlet Type | Female Threaded |
| Pressure Range | 75 psi to 150 psi |
| Protection Type | Temperature, Pressure |
| Relief Temperature | 210°F |
| Relief Valve Pressure | 100 psi |
| Series | LF100XL Series |
| Shank Length | 1 1/8" |
| Thermostat Material | Copper |
| Thermostat Probe Length | 4" |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 0.261400 |
Related Products
| Style | Model | Max. Working Pressure | Discharge Capacity | Factory Set Pressure | Body Height | Thermostat Length | Outlet Type | Shank Length | Inlet Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3/4 LF 100XL-4 | - | 105000 btuH | 125 psi | 7 5/32" | 4" | FNPT | Standard | MNPT | 39.95 | |
| B | 3/4 LF LL100XL | - | 105000 btuH | 150 psi | 3 3/16" | 2" | FNPT | Extended | MNPT | 49.78 | |
| C | 3/4 LF LLL100XL-2 | - | 105000 btuH | 150 psi | 7 1/4" | 3" | FNPT | Extended | MNPT | 66.78 | |
| D | LF100XL-150210 | 113 psi | 200000 btuH | - | - | - | Female Threaded | 1 1/8" | Male Threaded | 27.83 | |
| E | LFL100XL3-150210 | 113 psi | 200000 btuH | - | - | - | Female Threaded | 1 1/16" | Male Threaded | 43.61 | |
| F | LF100XL 175-210 3/4 | - | - | - | - | - | Female Threaded | 1 1/8" | Male Threaded | 33.30 | |
| E | LFSL100XL-150/210 3/4 | - | - | - | - | - | Female Threaded | 1 1/4" | Male Threaded | 69.53 |
