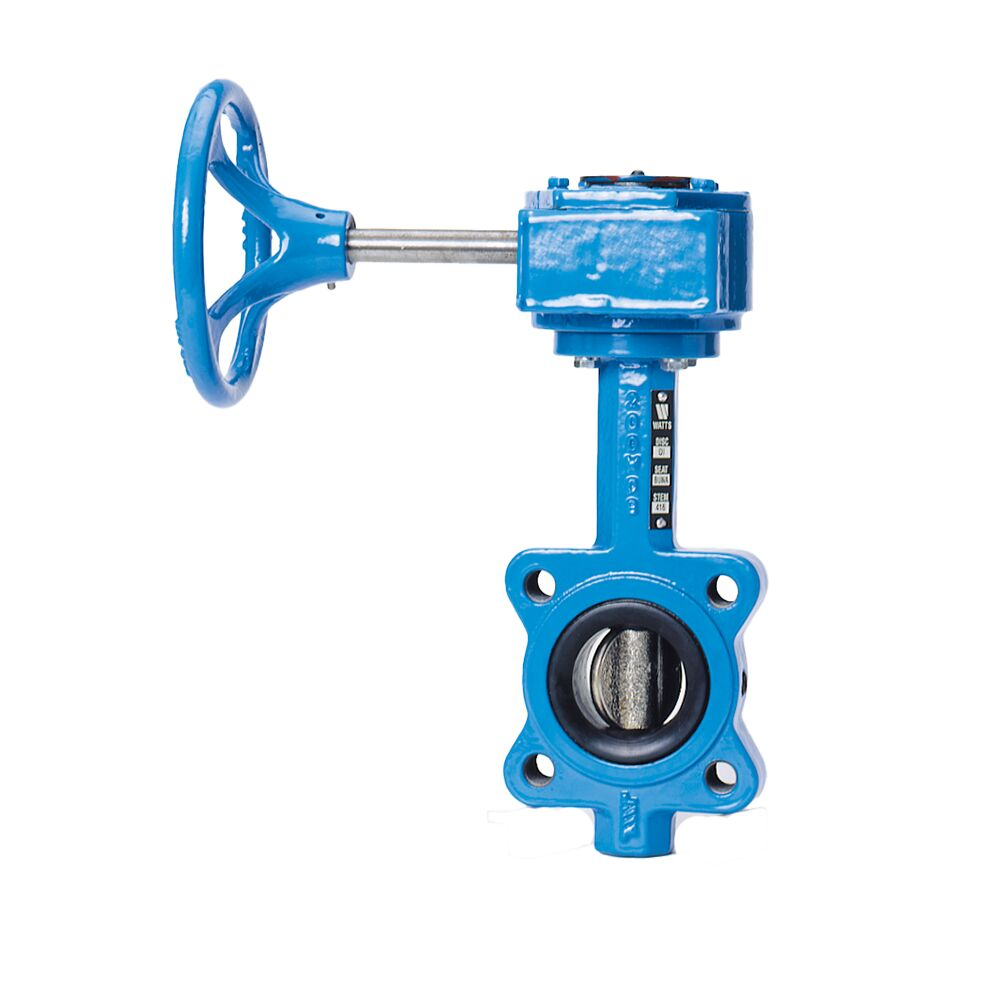

WATTS DBF-04-111-2G-M2 2 0525338 Domestic Wafer Butterfly Valve, 214 In. Lbs. Torque, 2 Inch Inlet
Item: BY6TZM
Model: DBF-04-111-2G-M2 2
In Stock
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Butterfly Valve |
|---|---|
| Body Material | Iron |
| Class Rating | 125/150 |
| Control Type | Gear Operator |
| Cv Rating | 135 GPM |
| Disc Material | Ductile Iron |
| Dry Operating Torque | 214 lbs.-in. |
| Inlet Connection Size | 2" |
| Inlet Size | 2" |
| Inlet Type | Wafer |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 176°F |
| Maximum Working Pressure | 200 psi |
|---|---|
| Mfr. Series | DBF-04 Series |
| Min. Temp. | 33°F |
| Outlet Connection Thread Type | Wafer |
| Outlet Size | 2" |
| Outlet Type | Wafer |
| Seat Material | Buna N |
| Shaft Material | Stainless Steel |
| Silicone Free | Yes |
| Stem Shaft Material | Stainless Steel |
| Valve Design | Wafer |
| Valve Style | Wafer |
| Wet Operating Torque | 134 lbs.-in. |
Product Details
Domestic Wafer Butterfly Valve, 214 In. Lbs. Torque, 2 Inch Inlet
Related Products
| Style | Model | Body Material | Seat Material | Inlet Size | Min. Temp. | Lead | Control Type | Dry Operating Torque | Wet Operating Torque | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DBF-04-111-15-M2 2 | Iron | EPDM | 2" | 33°F | Not Present | Lever Handle | 214 lbs.-in. | 134 lbs.-in. | 476.38 | |
| B | DBF-04-121-25-M2 2 | Iron | Buna N | 2" | 33°F | Not Present | Lever Handle | 214 lbs.-in. | 134 lbs.-in. | 491.48 | |
| C | DBF-04-121-15-M2 2 | Iron | EPDM | 2" | 33°F | Not Present | Lever Handle | 214 lbs.-in. | 134 lbs.-in. | 491.48 | |
| A | DBF-04-131-15-M2 2 | Iron | EPDM | 2" | 33°F | Not Present | Lever Handle | 214 lbs.-in. | 134 lbs.-in. | 647.76 | |
| A | DBF-04-131-25-M2 2 | Iron | Buna N | 2" | 33°F | Not Present | Lever Handle | 214 lbs.-in. | 134 lbs.-in. | 647.76 | |
| D | DBF-04-111-1G-M2 2 | Iron | EPDM | 2" | 33°F | Not Present | Gear Operator | 214 lbs.-in. | 134 lbs.-in. | 767.80 | |
| E | DBF-04-121-1G-M2 2 | Iron | EPDM | 2" | 33°F | Not Present | Gear Operator | 214 lbs.-in. | 134 lbs.-in. | 782.16 |
