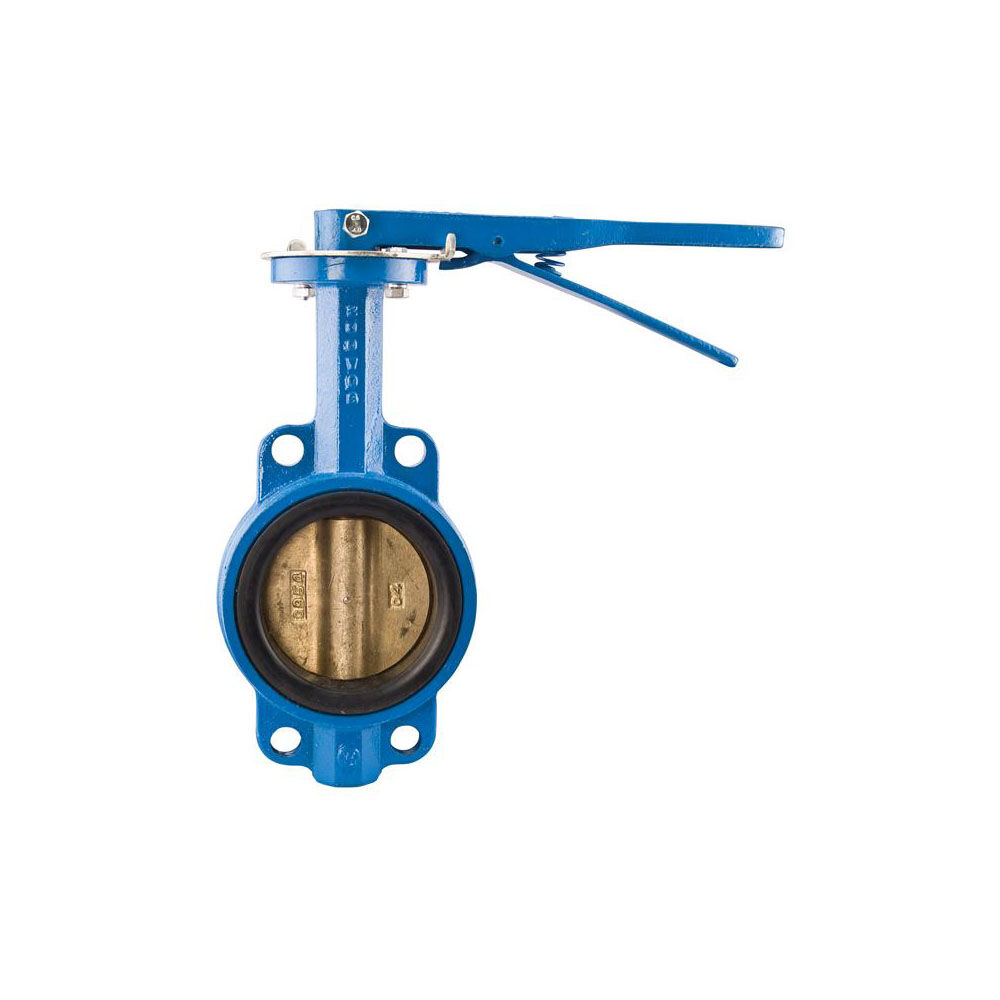

WATTS BF-04-131-15-M2 3 0525811 Wafer Butterfly Valve, 387 In. Lbs. Torque, 3 Inch Inlet
Item: BZ9YQB
Model: BF-04-131-15-M2 3
In Stock
£378.86/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Butterfly Valve |
|---|---|
| Body Material | Ductile Iron |
| Class Rating | 125/150 |
| Control Type | Lever Handle |
| Cv | 302 GPM |
| Disc Material | Stainless Steel |
| Dry Operating Torque | 387 lbs.-in. |
| Inlet Connection | Wafer |
| Inlet Size | 3" |
| Inlet Type | Wafer |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Operating Temp. | 248°F |
| Max. Working Pressure | 200 psi |
|---|---|
| Mfr. Series | BF-04 Series |
| Min. Temp. | 33°F |
| Outlet Connection | Wafer |
| Outlet Size | 3" |
| Outlet Type | Wafer |
| Seat Material | EPDM |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 316 |
| Silicone Free | Yes |
| Valve Design | Wafer |
| Wet Operating Torque | 250 lbs.-in. |
Product Details
Related Products
| Style | Model | Body Material | Min. Temp. | Control Type | Disc Material | Dry Operating Torque | Wet Operating Torque | Inlet Size | Outlet Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BF-04-121-15-M2 2 | Ductile Iron | 33°F | Lever Handle | Aluminum Bronze | 214 lbs.-in. | 134 lbs.-in. | 2" | 2" | 200.86 | |
| B | BF-04-121-15-M2 3 | Ductile Iron | 33°F | Lever Handle | Aluminum Bronze | 387 lbs.-in. | 250 lbs.-in. | 3" | 3" | 226.54 | |
| A | BF-04-111-1G-M2 4 | Ductile Iron | 5°F | Gear Operator | Ductile Iron | 644 lbs.-in. | 390 lbs.-in. | 4" | 4" | 567.29 | |
| B | BF-04-131-15-M2 5 | Ductile Iron | 33°F | Lever Handle | Stainless Steel | 959 lbs.-in. | 600 lbs.-in. | 5" | 5" | 500.55 | |
| B | BF-04-131-15-M2 2 | Ductile Iron | 33°F | Lever Handle | Stainless Steel | 214 lbs.-in. | 134 lbs.-in. | 2" | 2" | 252.84 | |
| B | BF-04-111-15-M2 4 | Ductile Iron | 33°F | Lever Handle | Ductile Iron | 644 lbs.-in. | 390 lbs.-in. | 4" | 4" | 250.92 | |
| A | BF-04-131-15-M2 6 | Iron | 33°F | Lever Handle | Stainless Steel | 1542 lbs.-in. | 907 lbs.-in. | 6" | 6" | 647.50 |
