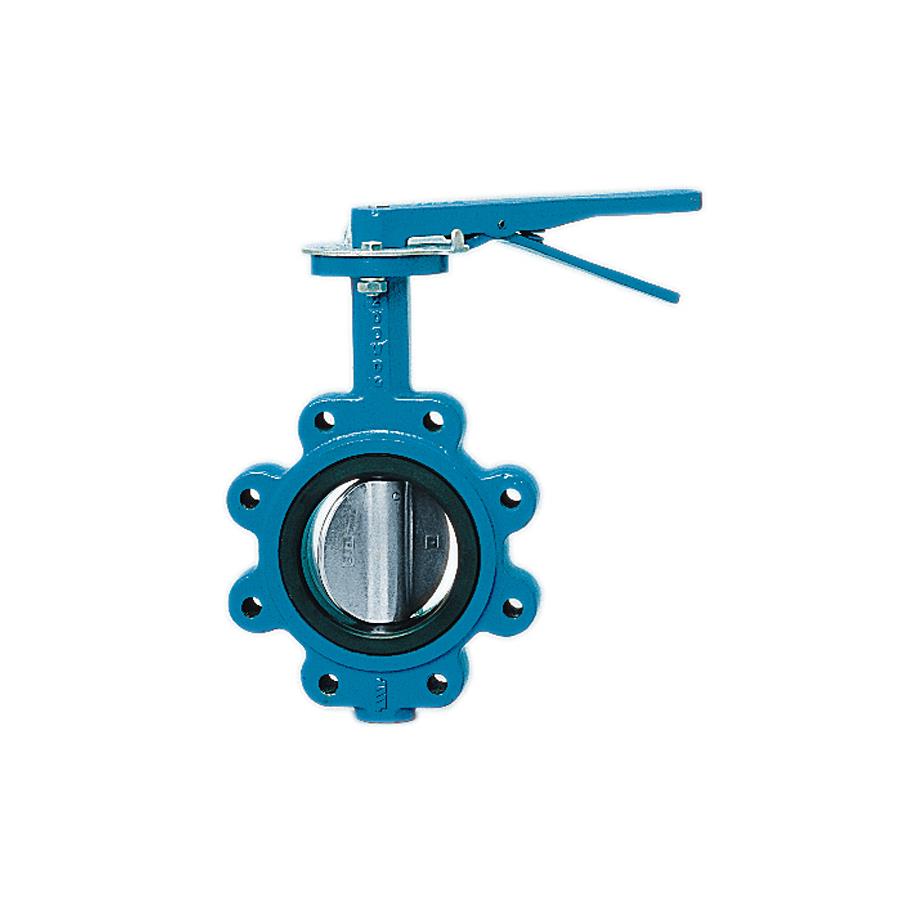

WATTS BF-03-121-1G-M2 4 0525615 Lug Butterfly Valve, 644 In. Lbs. Torque, 4 Inch Inlet
Item: CA4WNX
Model: BF-03-121-1G-M2 4
In Stock
£728.48/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Butterfly Valve |
|---|---|
| Body Material | Iron |
| Class Rating | 125/150 |
| Control Type | Gear Operator |
| Cv | 600 GPM |
| Disc Material | Aluminum Bronze |
| Dry Operating Torque | 644 lbs.-in. |
| Inlet Connection | Lug |
| Inlet Connection Size | 4" |
| Inlet Size | 4" |
| Inlet Type | Lug |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Operating Temp. | 248°F |
| Max. Temp. | 248°F |
| Max. Working Pressure | 200 psi |
|---|---|
| Mfr. Series | BF03-121 Series |
| Min. Temp. | 33°F |
| Outlet Connection | Lug |
| Outlet Connection Thread Type | Lug |
| Outlet Size | 4" |
| Outlet Type | Lug |
| Seat Material | EPDM |
| Shaft Material | Stainless Steel |
| Silicone Free | Yes |
| Stem Shaft Material | Stainless Steel |
| Valve Design | Lug |
| Valve Style | Lug |
| Wet Operating Torque | 390 lbs.-in. |
Product Details
Lug Butterfly Valve, 644 In. Lbs. Torque, 4 Inch Inlet
Related Products
| Style | Model | Body Material | Seat Material | Inlet Size | Min. Temp. | Outlet Size | Control Type | Disc Material | Dry Operating Torque | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BF-03-121-1G-M2 16 | Iron | EPDM | 16" | 33°F | 16" | Gear Operator | Aluminum Bronze Alloy | 10027 lbs.-in. | 5,437.94 | |
| B | BF03-121-1P-M2 5 | Ductile Iron | EPDM | 5" | 5°F | 5" | Locking Lever Handle | Aluminum Bronze Alloy | 959 lbs.-in. | 835.52 | |
| A | BF03-121-45 2 1/2 | Ductile Iron | EPDM | 2 1/2" | 5°F | 2 1/2" | Lever Handle | Aluminum Bronze | 289 lbs.-in. | 481.30 | |
| A | BF03-121-45 2 | Ductile Iron | EPDM | 2" | 5°F | 2" | Lever Handle | Aluminum Bronze | 214 lbs.-in. | 473.59 | |
| A | BF 03-221-15 | Ductile Iron | EPDM | 3" | 5°F | 3" | Lever Handle | Aluminum Bronze Alloy | 387 lbs.-in. | 479.38 | |
| A | BF03-121-45 4 | Ductile Iron | EPDM | 4" | 5°F | 4" | Lever Handle | Aluminum Bronze | 644 lbs.-in. | 651.98 | |
| A | BF03-121-45 5 | Ductile Iron | EPDM | 5" | 5°F | 5" | Lever Handle | Aluminum Bronze | 959 lbs.-in. | 813.08 |
