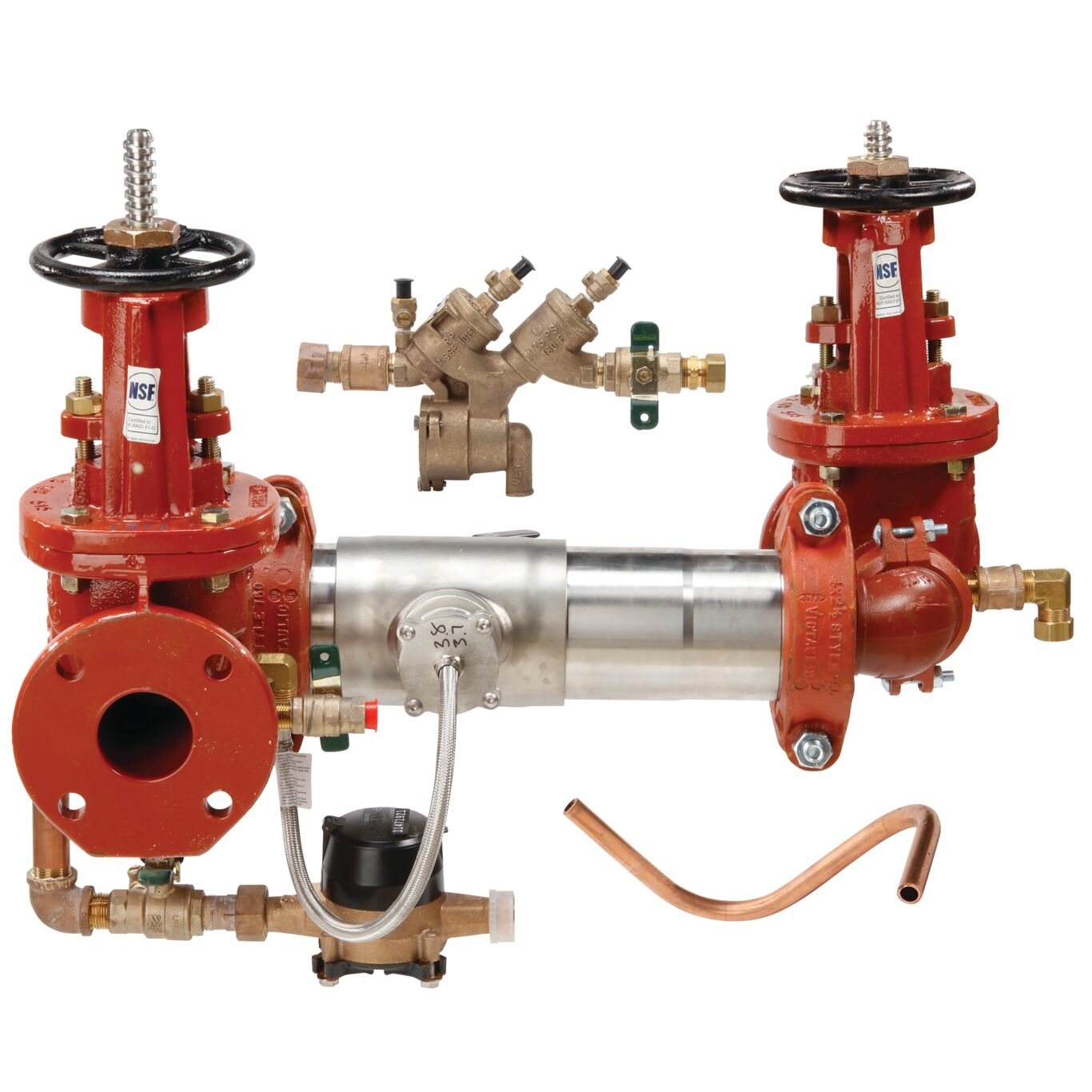

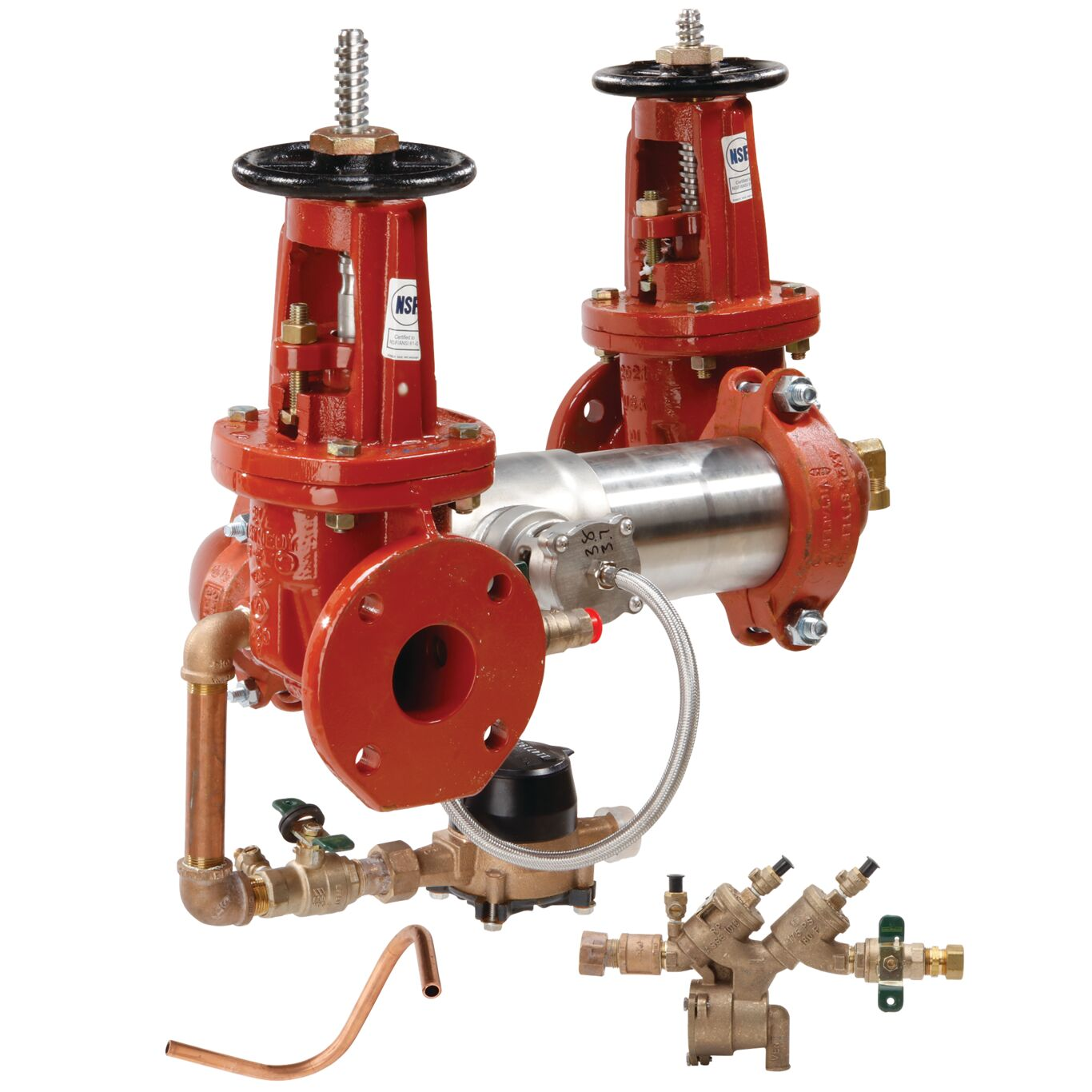

WATTS 957ZRPDA-OSY-GPM 2 1/2 0111650 Reduced Pressure Detector Assembly, Grooved Joint, 2 1/2 Inch Size
Item: CB4ARW
Model: 957ZRPDA-OSY-GPM 2 1/2
In Stock
£6087.62/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Reduced Press. Zone Assembly |
|---|---|
| Backflow Preventer Type | Reduced Pressure Detector Assembly |
| Body Finish | Plain |
| Body Pattern | Z Pattern |
| Body Style | Z Pattern |
| Fitting | No |
| Hydrant Connection | No |
| Inlet Connection Size | 2 1/2" |
| Inlet Shutoff Valve Type | Outside Stem And Yoke Gate Valve |
| Inlet Size | 2 1/2" |
| Inlet Thread Type | Not Applicable |
| Inlet Type | Grooved Joint |
| Lead Free | No |
| Material | Stainless Steel |
| Max. Temp. | 110°F |
| Max. Working Pressure | 175 psi |
| Maximum Working Pressure | 12.06 Bar |
| Meter Type | GPM |
|---|---|
| Min. Temp. | 33°F |
| Operation | Continuous |
| Outlet Connection Thread Type | Grooved Joint |
| Outlet Shutoff Valve Type | Outside Stem And Yoke Gate Valve |
| Outlet Size | 2 1/2" |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Grooved Joint |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure, Back Siphonage |
| Series | 957RPDA Series |
| Strainer | No |
| Technologies | Not Applicable |
| Type | Kit |
| Valve Type | Outside Stem And Yoke Gate Valve |
Product Details
Related Products
| Style | Model | Body Finish | Min. Temp. | Type | Body Style | Max. Working Pressure | Meter Type | Outlet Size | Body Pattern | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 957ZRPDA-DOSY-GPM 8 | Plain | 33°F | Valve To Accessory | Z Pattern | 12.06 Bar | GPM | 8" | - | 16,502.12 | |
| A | 957ZRPDA-DOSY-CFM 8 | Stainless Steel | 33°F | Valve To Accessory | Z Pattern | 12.06 Bar | CFM | 8" | Z Pattern | 16,502.12 | |
| B | 957RPDA-DOSY-LM 8 | Stainless Steel | 33°F | Valve To Accessory | Straight | 12.06 Bar | No Meter | 8" | Straight | 13,072.46 | |
| C | 957ZRPDA-DOSY-LM 8 | Plain | 33°F | Valve To Accessory | Z Pattern | 175 psi | No Meter | 8" | - | 16,412.92 | |
| D | 957NRPDA-OSY-CFM 3 | Plain | 33°F | Valve To Accessory | N Pattern | 12.06 Bar | - | 3" | - | 5,515.04 | |
| D | 957NRPDA-OSY-CFM 4 | Stainless Steel | 33°F | Valve To Accessory | N Pattern | 12.06 Bar | CFM | 4" | N Pattern | 7,596.94 | |
| D | 957NRPDA-OSY-CFM 6 | Stainless Steel | 33°F | Valve To Accessory | N Pattern | 12.06 Bar | CFM | 6" | N Pattern | 11,329.55 |
