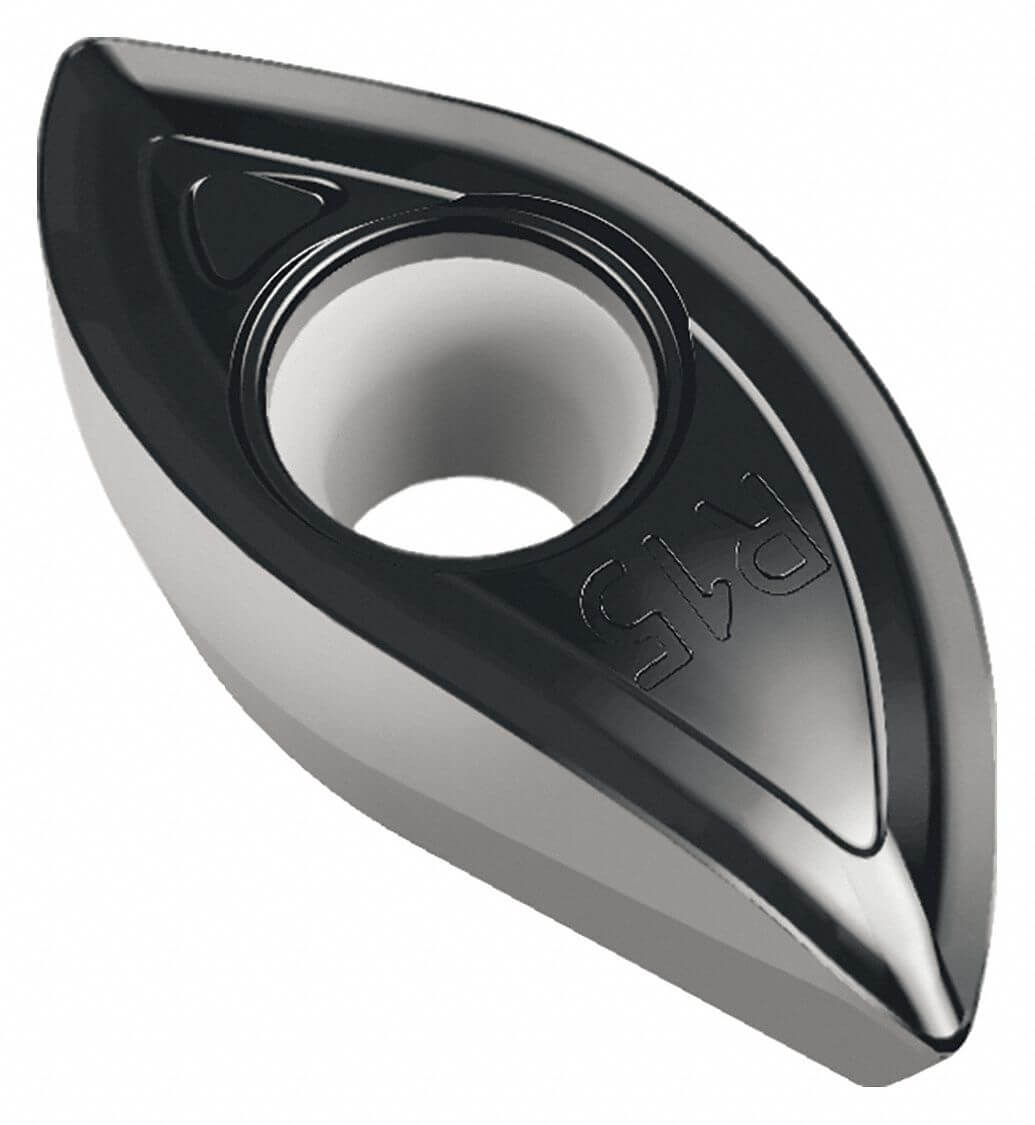

| Item | Milling Insert |
|---|---|
| Ansi Code | Xdmt16T3095R-F55 Wsp45S |
| Chip-breaker | F55 |
| Chip-breaker Style | 16° Chipbreaker Groove |
| Clearance Angle | 15° |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 0.47 mm |
| Cutting Application | Medium |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 15.93 mm |
| Finish - Machining | Tialn+Al2O3+Al |
| For Toolholder | F2339 |
| For Use With | Copy Milling Cutter |
| Grade | Grade WSP45S |
| Hole Type | Countersink Hole |
| Insert Holding Type | Screw |
| Insert Shape | Parallelogram |
| Insert Size | 16T3095 |
| Insert Style | XDMT |
| Iso Number | XDMT16T3095R-F55 WSP45S |
|---|---|
| Lead Angle | 15° |
| Manufacturer Grade | Wsp45S |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Style | Screw |
| Nose Radius | 3/8" |
| Number Of Cutting Edges | 2 |
| Number Of Edges | 2 |
| Primary Application | Medium |
| Primary Material Application | Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | M, P, S |
| Rake | Positive |
| Secondary Material Application | Nickel, Titanium |
| Secondary Material Application Iso Code | S |
| Shape | Parallelogram |
| Style | XDMT |
| Thickness | 0.15" |
| Width | 9 mm |
| Height | 1.1 |
|---|---|
| Length | 9.8 |
| Width | 1.4 |
| Country Of Origin | DE |
|---|---|
| Weight | 0.061200 |
| Style | Model | Cutting Direction | Chip-breaker | Mounting Style | Insert Size | Inscribed Circle | Lead Angle | Coating | Insert Shape | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | SPHW120416-A57 WSN10 | Right Hand | A57 | Screw Held | 120416 | 1/2" | - | Uncoated | Square | - |
RFQ
|
| B | LNMU120608-F57T WKP35G | Neutral | Yes | Screw | 120608 | 12 mm | 0° | - | - | 53.12 |
