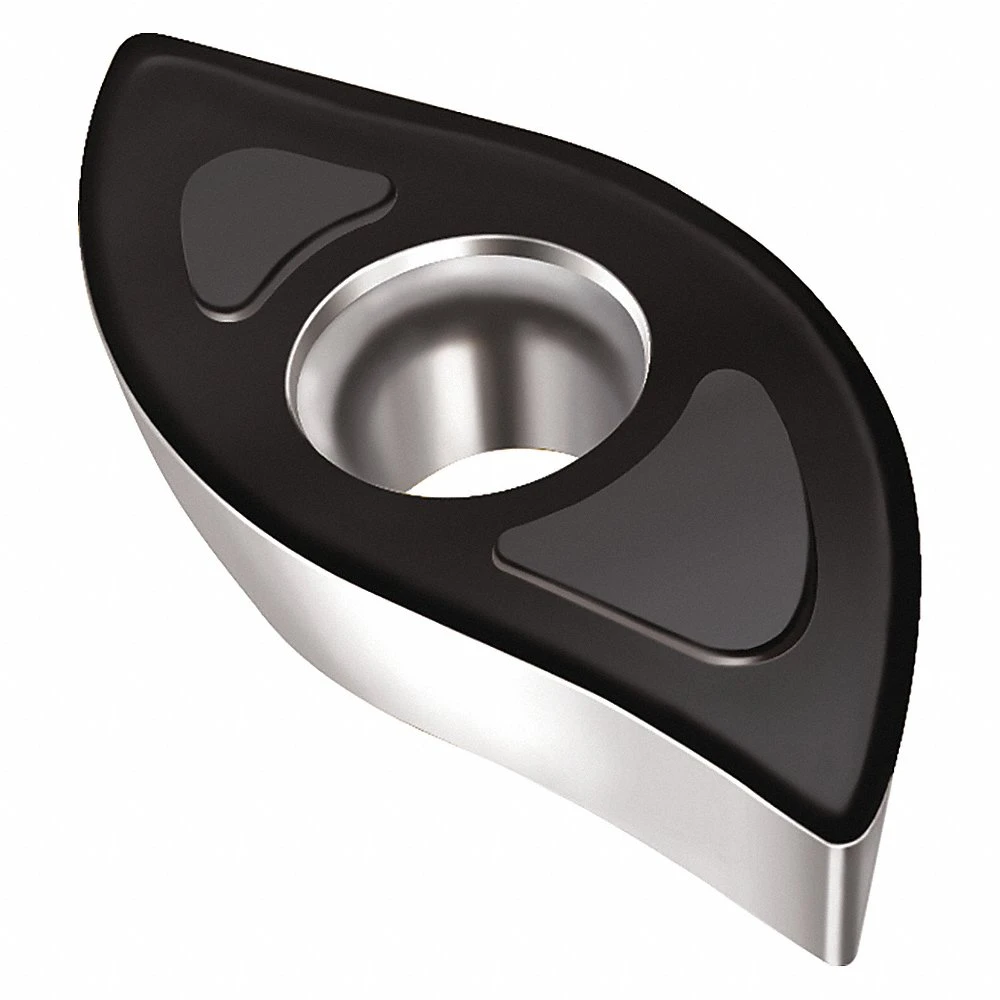

WALTER TOOLS XDGT2004125R-D57 WKP35S 6366027 Specialty And Other Milling Insert, 0.0240 Inch Corner Radius

Item: CV2RQR
Model: XDGT2004125R-D57 WKP35S
20 In Stock

Ships within 2 days via

£84.19
5.00% off
£79.98/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code XDGT2004125R-D57
Chip-breaker Yes
Chip-breaker Code D57
Clearance Angle 15°
Coating Process CVD
Corner Radius 0.024"
Cutting Direction Right Hand
Cutting Edge Length 19.94 mm
Finish Titanium Carbonitride, Aluminum Oxide
Finish - Machining Ticn+Al2O3+(Ticn)
For Use With Copy Milling Cutters
Hole Type With Hole
Insert Size 2004125
Insert Style XDGT
Insert Type XDGT
Iso Number XDGT2004125R-D57
Manufacturer Grade Wkp35S
Material Carbide
Material - Machining Carbide
Number Of Cutting Edges 2
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Rake Positive
Thickness 0.184"
Width 0.445"
Indexable Insert Tolerance Class Class G
Insert Thickness 0.184"
Major Clearance Angle 15°
No. Of Cutting Edges 2
Radius 0.492"

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.081000
